Rakovanite

(NH4)3Na3[V10O28] · 12H2O
IMA status
  • Approved
IMA symbol
Rkv
Discovered
2010
IMA approved
2010
Also known as
  • IMA2010-052
  • Rakovaniet

Where it forms, where it's found

Geological setting

Colorado Plateau, sandstone hosted, vanadium-uranium, role front type deposit.

Type locality
Sunday Mine
  1. Slick Rock Mining District
  2. Colorado
  3. USA

38.0719°, -108.8049°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789101/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Orange
Streak
Orange-yellow
Tenacity
brittle
Fracture
Conchoidal
Density
2.407 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 56°
Refractive index
1.776 – 1.91
Surface relief
Very high
Principal indices
nα 1.776 · nβ 1.803 · nγ 1.910
Pleochroism
Strong

X = light yellow; Y = orangish-yellow; Z = yellowish-orange.

Dispersion
r < v, strong, parallel
Extinction
X = b; Z ∧ c = 8° in obtuse β.
Notes

Absorption: Z > Y > X. 2Vz = 58(1)° [540 nm], 56(1)° [589 nm], and 53(1)° [650 nm].

Michel-Lévy diagramhighlighted lineδ = 0.1340
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1340 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1340 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 12.0248(17) Å · b = 17.121(3) Å · c = 18.140(3) Å
Cell angles
β = 106.242(8) °
Ratio a:b:c
1 : 1.424 : 1.509
Morphology

Crystals vary in habit from blocky to prismatic on [100], commonly exhibiting steps and striations parallel to [100].

Type-locality form

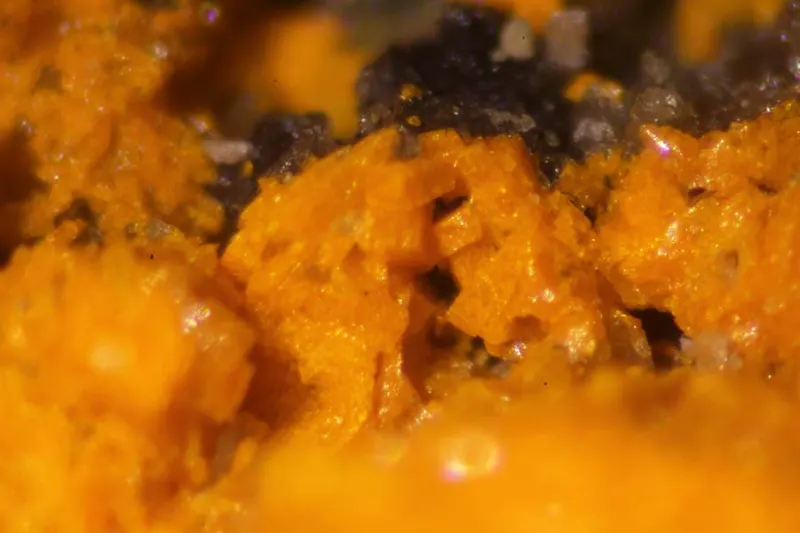

Rakovanite is transparent orange, with an orange-yellow streak. Crystals of rakovanite are up to 1 mm in maximum dimension and vary in habit from blocky to prismatic on [100], commonly exhibiting steps and striations parallel to [100].

Comment

Space group P21/n.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen4015.999639.960
49.35%
23VVanadiumVanadium1050.942509.420
39.29%
11NaSodiumSodium322.99068.970
5.32%
7NNitrogenNitrogen314.00742.021
3.24%
1HHydrogenHydrogen361.00836.288
2.80%
Total1296.659100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2010-052
  • Rakovaniet

In other languages

German
IMA 2010-052 · Rakovanit
Italian
rakovanite
Japanese
ラコヴァナイト

Classification

Strunz
10th ed.

4.HC.05

  • 4OxidesClass
  • 4.HV[5,6] VanadatesDivision
  • 4.HC[6]-SorovanadatesGroup
  • 4.HC.05RakovaniteSpecies

Group, growth & confusion

In the same group
4 members

Literature, links & citation

Citations
  1. IMA CNMMC Newsletter 56
  2. 2011Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2011) New minerals and nomenclature modifications approved in 2010, CNMNC Newsletter No 7. Mineralogical Magazine, 75 (1) 27-31 doi:10.1180/minmag.2011.075.1.27 DOI: 10.1180/minmag.2011.075.1.27
  3. 2011Kampf, A. R., Hughes, J. M., Marty, J., Gunter, M. E., Nash, B. (2011) Rakovanite, Na3{H3[V10O28]}·15H2O, a new member of the pascoite family with a protonated decavanadate polyanion. The Canadian Mineralogist, 49 (2) 595-604 doi:10.3749/canmin.49.2.595 DOI: 10.3749/canmin.49.2.595
  4. 2013(2013) Rakovanite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2021Kampf, Anthony R., Hughes, John M., Cooper, Mark A., Hawthorne, Frank C., Nash, Barbara P., Olds, Travis A., Adams, Paul M., Marty, Joe (2021) The pascoite family of minerals, including the redefinition of rakovanite. The Canadian Mineralogist, 59 (4) 771-779 doi:10.3749/canmin.2000082DOI: 10.3749/canmin.2000082
