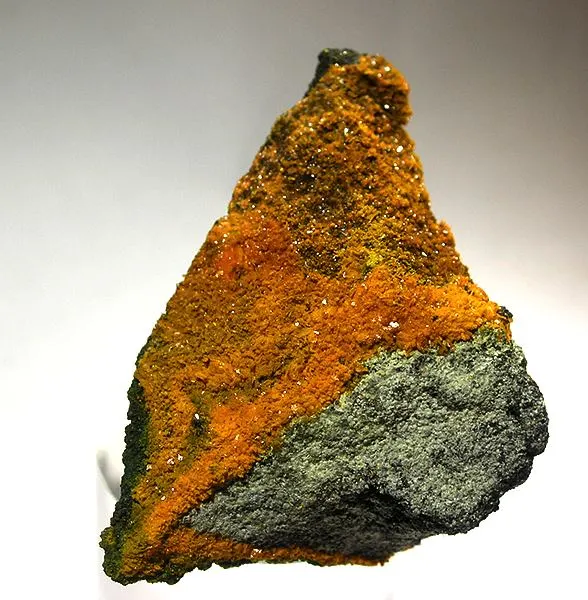

Pascoite

Ca3V5+10O28 · 17H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Pas
Discovered
1914
Also known as
  • Pascoiet

Where it forms, where it's found

Geological setting

Near surface leaching of vanadium oxides by ground waters; post-mining efflorescences on mine tunnels.

Type locality
Ragra Mine
  1. Huayllay District
  2. Pasco Province
  3. Pasco
  4. Peru

-10.8610°, -76.5722°

83recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Dark red-orange to yellow-orange · dirty yellow (upon partial dehydration).
Streak
Cadmium-yellow
Cleavage
Distinct/Good

On (010), distinct

Fracture
Conchoidal
Density
2.455 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 50 – 56° · 2V calc = 52°
Refractive index
1.775 – 1.825
Surface relief
High
Principal indices
nα 1.775 · nβ 1.815 · nγ 1.825
Pleochroism
Visible

X = Light cadmium-yellow Y = Cadmium yellow Z = Orange

Dispersion
r < v strong
Michel-Lévy diagramhighlighted lineδ = 0.0500
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]500 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation500 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#7
Cell parameters
a = 16.834 Å · b = 10.156 Å · c = 10.921 Å
Cell angles
β = 93.13 °
Ratio a:b:c
1 : 0.603 : 0.649
Z
2
Morphology

Crystals minute, lath-like with oblique terminations; (110) striated [001], and (111) striated [10_1]; granular crusts.

Type-locality form

Efflorescences on mine tunnels

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen4515.999719.955
52.02%
23VVanadiumVanadium1050.942509.420
36.81%
20CaCalciumCalcium340.078120.234
8.69%
1HHydrogenHydrogen341.00834.272
2.48%
Total1383.881100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Pascoiet

In other languages

French
Pascoite
German
Pascoit
Spanish
pascoíta
Italian
Pascoite
Russian
Паскоит

Classification

Strunz
10th ed.

4.HC.05

  • 4OxidesClass
  • 4.HV[5,6] VanadatesDivision
  • 4.HC[6]-SorovanadatesGroup
  • 4.HC.05PascoiteSpecies
Dana
8th ed.

47.02.01.01

  • 47Vanadium OxysaltsClass
  • 47.02Anhydrous Vanadium Oxysalts Containing Hydroxyl or HalogenType
  • 47.02.01Pascoite GroupGroup
  • 47.02.01.01PascoiteSpecies
CIM

21.2.8

  • 21Vanadates (and vanadates with arsenate or phosphate)Class
  • 21.2Vanadates of Mg, Ca, Sr or BaGroup
  • 21.2.8PascoiteSpecies

Group, growth & confusion

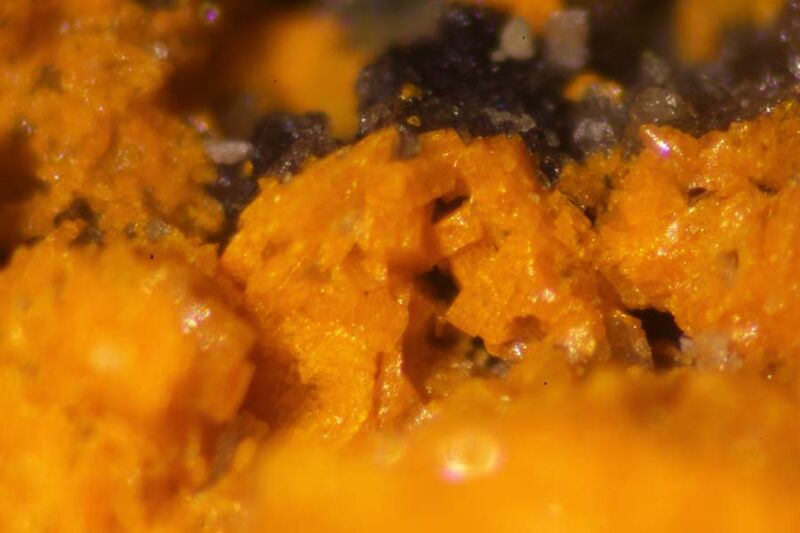

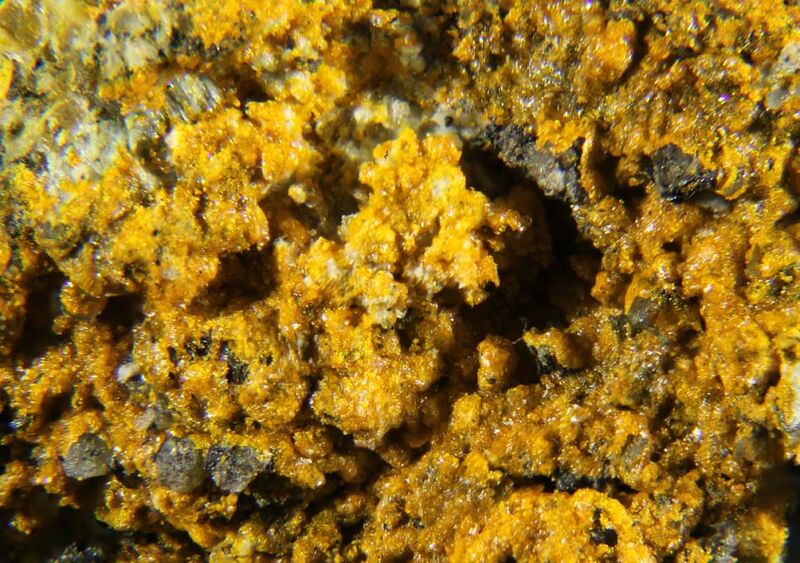

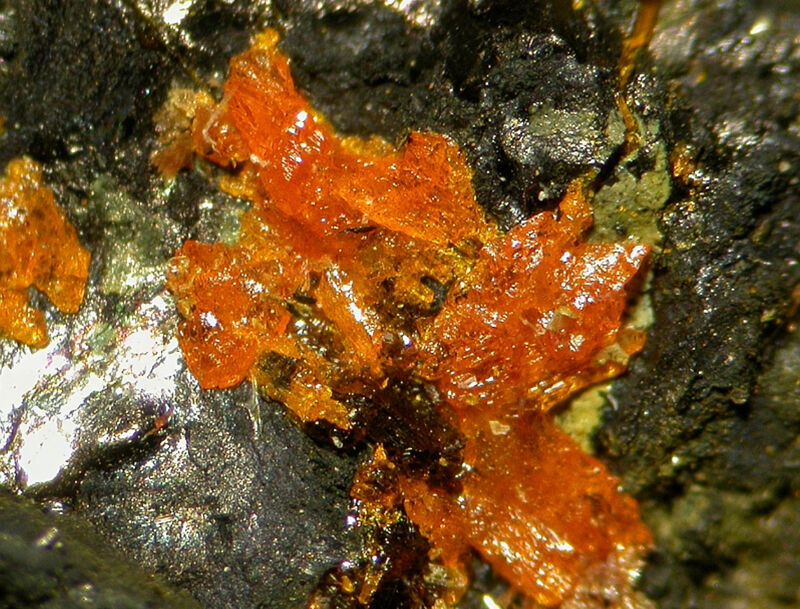

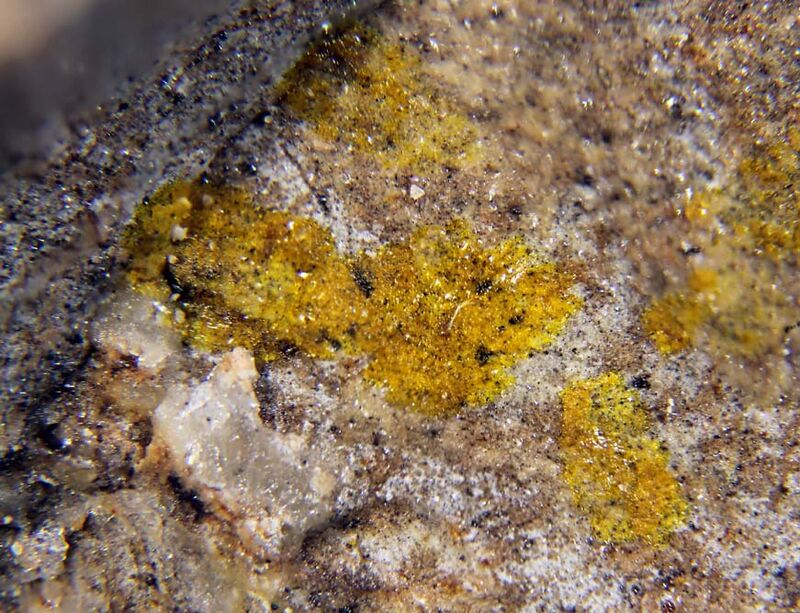

In the same group
4 members
Often grow together
2 minerals

Literature, links & citation

Citations
  1. 1914Hillebrand, W.F., Merwin, H.E., Wright, F.E. (1914) Hewettite, metahewettite and pascoite, hydrous calcium vanadates. Proceedings of the American Philosophical Society: 53: 31-54.
  2. 1915Hillebrand, Merwin and Wright (1915) Zeitschrift für Kristallographie, Mineralogie und Petrographie, Leipzig: 54: 226.
  3. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  4. 1954Weeks, A.D. and M.E. Thompson (1954) Identification and occurrence of uranium and vanadium minerals from the Colorado Plateaus. U.S. Geological Survey Bulletin 1009-B: 54–55.
  5. 1960Sabina, A. P., Traill, R. J. (1960) Catalogue of x-ray diffraction patterns and specimen mounts on file at the Geological Survey of Canada. Paper 60-4. Geological Survey of Canada
