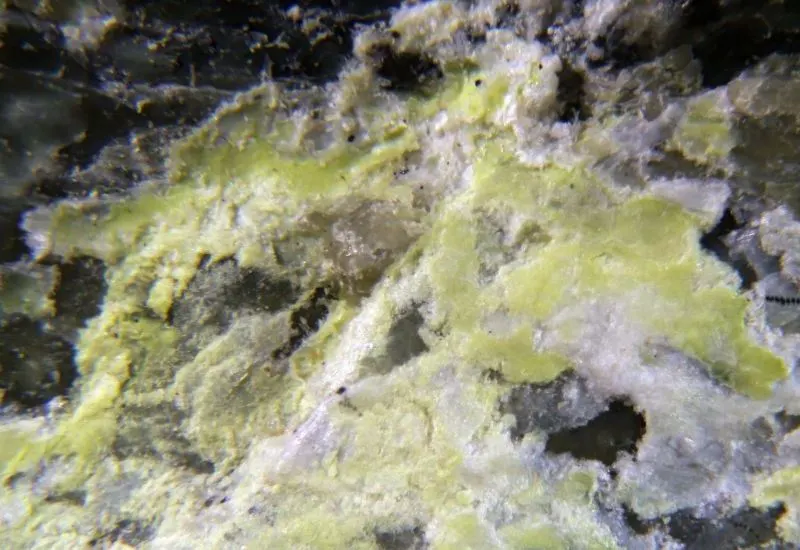

Reevesite

Ni6Fe3+2(CO3)(OH)16 · 4H2O
IMA status
  • Approved
IMA symbol
Rvs
Discovered
1966
IMA approved
1966
Also known as
  • IMA1966-025
  • Reevesiet

Where it forms, where it's found

Geological setting

alteration product of a highly weathered iron-nickel meteorite

Nickel rich ore deposits

Type locality
Wolfe Creek meteorite crater
  1. Carranya Station
  2. Halls Creek Shire
  3. Western Australia
  4. Australia

-19.1719°, 127.7954°

52recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Yellow to yellow-green
Density
2.80 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.65 – 1.735
Surface relief
High
Principal indices
nω 1.735 · nε 1.65
Michel-Lévy diagramhighlighted lineδ = 0.0850
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]850 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation850 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
R-3m
Cell parameters
a = 6.16 Å · c = 45.54 Å
Comment

Z=3/8

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2315.999367.977
42.39%
28NiNickelNickel658.693352.158
40.57%
26FeIronIron255.845111.690
12.87%
1HHydrogenHydrogen241.00824.192
2.79%
6CCarbonCarbon112.01112.011
1.38%
Total868.028100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1966-025
  • Reevesiet

In other languages

German
IMA 1966-025 · Reevesit
Italian
Reevesite

Classification

Strunz
10th ed.

5.DA.50

  • 5CarbonatesClass
  • 5.DCarbonates with additional anions, with H2ODivision
  • 5.DAWith medium-sized cationsGroup
  • 5.DA.50ReevesiteSpecies
Dana
8th ed.

16b.06.03.01

  • 16bHydrated Carbonates Containing Hydroxyl or HalogenClass
  • 16b.06AmBn(XO3)pZqxH2O & with (m+n):p = 8:1Type
  • 16b.06.03Sjorgrenite-Hydrotalcite Group (Hydrotalcite Subgroup:Rhombohedral)Group
  • 16b.06.03.01ReevesiteSpecies
CIM

11.14.10

  • 11CarbonatesClass
  • 11.14Carbonates of Co and NiGroup
  • 11.14.10ReevesiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1967White, John S.; Henderson, E. P.; Mason, B. (1967) Secondary minerals produced by weathering of the Wolf Creek meteorite. American Mineralogist, 52 (7-8). 1190-1197
  2. 1971de Waal, S. A., Viljoen, E. A. (1971) Nickel minerals from Barberton, South Africa: IV. Reevesite, a member of the hydrotalcite group. American Mineralogist, 56 (5-6) 1077-1081
  3. 1973Taylor, H. F. W. (1973) Crystal structures of some double hydroxide minerals. Mineralogical Magazine, 39 (304). 377-389 doi:10.1180/minmag.1973.039.304.01 DOI: 10.1180/minmag.1973.039.304.01
  4. 1981Bish, D. L., Livingstone, A. (1981) The crystal chemistry and paragenesis of honessite and hydrohonessite: the sulphate analogues of reevesite. Mineralogical Magazine, 44 (335) 339-343 doi:10.1180/minmag.1981.044.335.15 DOI: 10.1180/minmag.1981.044.335.15
  5. 1993Bookin, A. S., Cherkashin, V. I., Drits, V. A. (1993) Reinterpretation of the X-Ray Diffraction Patterns of Stichtite and Reevesite. Clays and Clay Minerals, 41 (5) 631-634 doi:10.1346/ccmn.1993.0410514DOI: 10.1346/ccmn.1993.0410514
