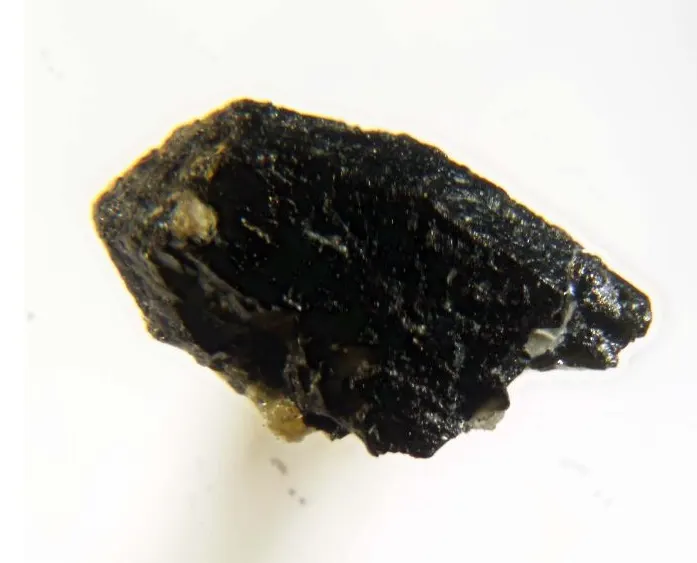

Tantalowodginite

(Mn,◻)TaTa2O8
IMA status
  • Approved
IMA symbol
Ttwdg
IMA approved
2018
Also known as
  • IMA2017-095
  • Tantalowodginiet

Where it forms, where it's found

Geological setting

Granite pegmatite

Type locality
Emmons Quarry
  1. Uncle Tom Mountain
  2. Greenwood
  3. Oxford County
  4. Maine
  5. USA

44.3233°, -70.6947°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 5.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Adamantine
Colour
Orange-red to deep red
Streak
Yellowish-tan
Tenacity
brittle
Cleavage
Distinct/Good

on (100)

Fracture
Conchoidal
Density
7.61 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 70°
Birefringence
Strong to extreme
Pleochroism
Weak

Weak to moderate pleochroism: orangish-yellow parallel to cleavage and greenish-yellow perpendicular to cleavage on (010)

Dispersion
Strong
UV response
Non-fluorescent under 254 nm (short wave) and 366 nm (long wave) ultraviolet light

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 9.542(1) Å · b = 11.488(2) Å · c = 5.128(1) Å
Cell angles
β = 91.13(1) °
Ratio a:b:c
1 : 1.204 : 0.537
Z
4
Morphology

Anhedral masses, rarely as crystals

Type-locality form

As anhedral masses (0.5–12 cm) in the pegmatite core and crystals (rare) in miarolitic cavities

Synonyms

  • IMA2017-095
  • Tantalowodginiet

In other languages

German
IMA 2017-095 · Tantalowodginit
Italian
IMA2017-095 · tantalowodginite

Classification

Strunz
10th ed.

4.DB.40

  • 4OxidesClass
  • 4.DMetal: Oxygen = 1:2 and similarDivision
  • 4.DBWith medium-sized cations; chains of edge-sharing octahedraGroup
  • 4.DB.40TantalowodginiteSpecies

Group, growth & confusion

In the same group
7 members

Literature, links & citation

Citations
  1. 1984Ercit, T. S., Černý, P., Hawthorne, F. C. (1984) Wodginite crystal chemistry. Geol. Soc. Am., Abstr. Programs 16, 502.
  2. 1992Ercit, T. Scott, Černý, Petr, Hawthorne, Frank C. (1992) The wodginite group. III. Classification and new species. The Canadian Mineralogist, 30 (3) 633-638
  3. 2018Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2018) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) Newsletter 41. European Journal of Mineralogy, 30. 183-186 doi:10.1127/ejm/2018/0030-2736DOI: 10.1127/ejm/2018/0030-2736
  4. 2018Hanson, Sarah L., Falster, Alexander U., Simmons, William B “Skip”, Sprague, Raymond, Vignola, Pietro, Rotiroti, Nicola, Andó, Sergio, Hatert, Frédéric (2018) Tantalowodginite, (Mn0.5□0.5)TaTa2O8, a New Mineral Species from the Emmons Pegmatite, Uncle Tom Mountain, Maine, U.S.A. The Canadian Mineralogist, 56 (4) 543-553 doi:10.3749/canmin.1800009DOI: 10.3749/canmin.1800009
  5. 2023(2023) Tantalowodginite. Handbook of Mineralogy. Mineralogical Society of America
