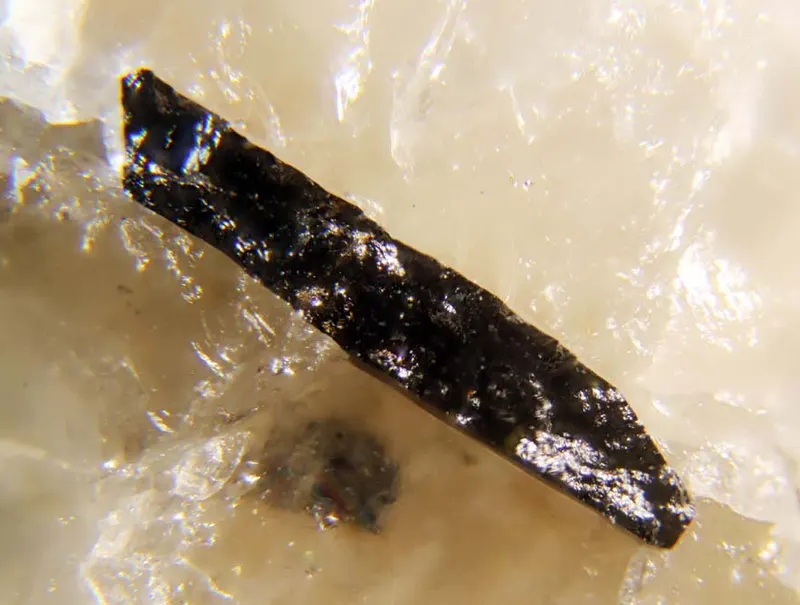

Titanowodginite

Mn2+TiTa2O8
IMA status
  • Approved
IMA symbol
Twdg
Discovered
1984
IMA approved
1984
Also known as
  • IMA1984-008

Where it forms, where it's found

Type locality
Tanco Mine
  1. Bernic Lake
  2. Lac-du-Bonnet area
  3. Manitoba
  4. Canada

50.4300°, -95.4464°

9recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Dark brown to black
Streak
Dark brown
Tenacity
brittle
Fracture
Irregular/Uneven
Density
6.86 g/cm³

Optical

Optical type
Biaxial (+)
Refractive index
2
Surface relief
Very high
Principal indices
nβ 2
Dispersion
relatively weak

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 9.466(1) Å · b = 11.431(1) Å · c = 5.126(1) Å
Cell angles
β = 90.31(2) °
Ratio a:b:c
1 : 1.208 : 0.542
Z
4

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
73TaTantalumTantalum2180.948361.896
61.06%
8OOxygenOxygen815.999127.992
21.59%
25MnManganeseManganese154.93854.938
9.27%
22TiTitaniumTitanium147.86747.867
8.08%
Total592.693100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Sn
  • Sc
  • Nb

Synonyms

  • IMA1984-008

In other languages

German
IMA 1984-008 · Titanowodginit
Italian
titanowodginite

Classification

Strunz
10th ed.

4.DB.40

  • 4OxidesClass
  • 4.DMetal: Oxygen = 1:2 and similarDivision
  • 4.DBWith medium-sized cations; chains of edge-sharing octahedraGroup
  • 4.DB.40TitanowodginiteSpecies
Dana
8th ed.

08.01.08.03

  • 08Multiple Oxides Containing Niobium, Tantalum or TitaniumClass
  • 08.01ABO4Type
  • 08.01.08Wodginite GroupGroup
  • 08.01.08.03TitanowodginiteSpecies

Group, growth & confusion

In the same group
7 members

Literature, links & citation

Citations
  1. 1992Ercit, T. Scott, Černý, Petr, Hawthorne, Frank C., McCammon, Catherine A. (1992) The wodginite group. II. Crystal chemistry. The Canadian Mineralogist, 30 (3) 613-631
  2. 1992Ercit, T. Scott, Hawthorne, , Černý, Petr (1992) The wodginite group. I. Structural crystallography. The Canadian Mineralogist, 30 (3) 597-611
  3. 1992Ercit, T. Scott, Černý, Petr, Hawthorne, Frank C. (1992) The wodginite group. III. Classification and new species. The Canadian Mineralogist, 30 (3) 633-638
  4. 2005(2005) Titanowodginite. Handbook of Mineralogy. Mineralogical Society of America
