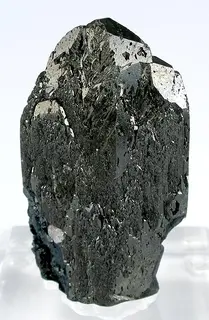

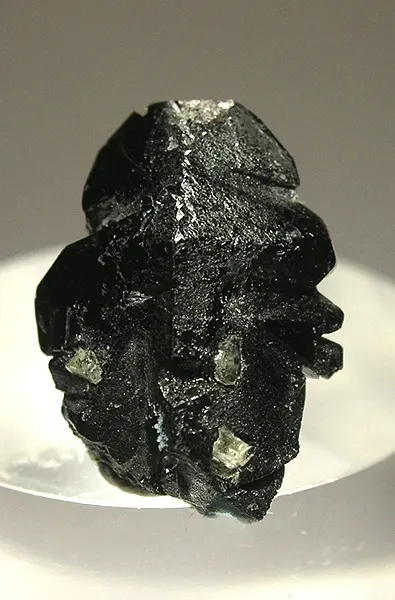

Wodginite

Mn2+Sn4+Ta2O8
IMA status
  • Approved
IMA symbol
Wdg
Discovered
1963
Also known as
  • Wodginiet

Where it forms, where it's found

Geological setting

Granite pegmatites

Type locality
Tanco Mine
  1. Bernic Lake
  2. Lac-du-Bonnet area
  3. Manitoba
  4. Canada

50.4300°, -95.4464°

81recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Red-brown · dark brown to black
Tenacity
brittle
Fracture
Irregular/Uneven
Density
7.19 g/cm³

Optical

Pleochroism
Not Visible

Not visible in air, weakly visible in oil

Optical colour
Greyish-white
Anisotropism
Weak, stronger in oil
Internal reflections
Many, when in oil
Tropism
Anisotropic

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 9.475(58) Å · b = 11.449(55) Å · c = 5.112(30) Å
Cell angles
β = 90.60(60) °
Ratio a:b:c
1 : 1.208 : 0.540
Z
4
Morphology

Crystals commonly flattened, dipyramidal (111), or prismatic

Twinning

Very common, as penetration twins with (001) or (100) as the composition plane.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
73TaTantalumTantalum2180.948361.896
54.54%
8OOxygenOxygen815.999127.992
19.29%
50SnTinTin1118.710118.710
17.89%
25MnManganeseManganese154.93854.938
8.28%
Total663.536100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Wodginiet

In other languages

German
Wodginit
Spanish
Wodginita
Italian
wodginite
Japanese
ウォッジナイト

Classification

Strunz
10th ed.

4.DB.40

  • 4OxidesClass
  • 4.DMetal: Oxygen = 1:2 and similarDivision
  • 4.DBWith medium-sized cations; chains of edge-sharing octahedraGroup
  • 4.DB.40WodginiteSpecies
Dana
8th ed.

08.01.08.01

  • 08Multiple Oxides Containing Niobium, Tantalum or TitaniumClass
  • 08.01ABO4Type
  • 08.01.08Wodginite GroupGroup
  • 08.01.08.01WodginiteSpecies
CIM

18.1.40

  • 18Niobates and TantalatesClass
  • 18.1Niobates and tantalates containing neither rare earths nor UGroup
  • 18.1.40WodginiteSpecies

Group, growth & confusion

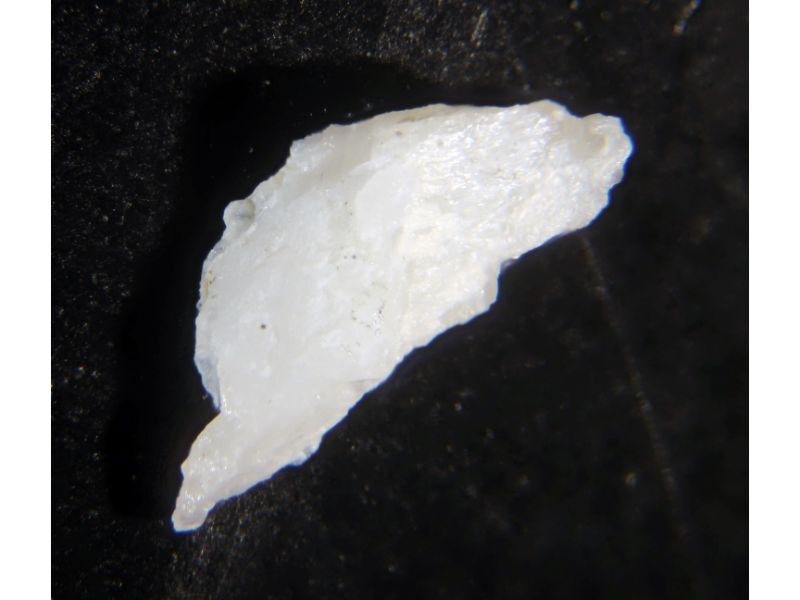

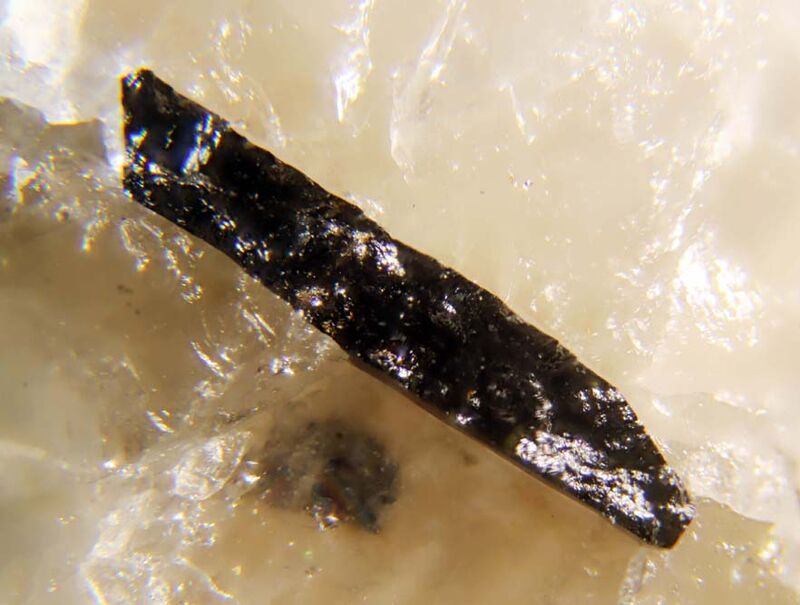

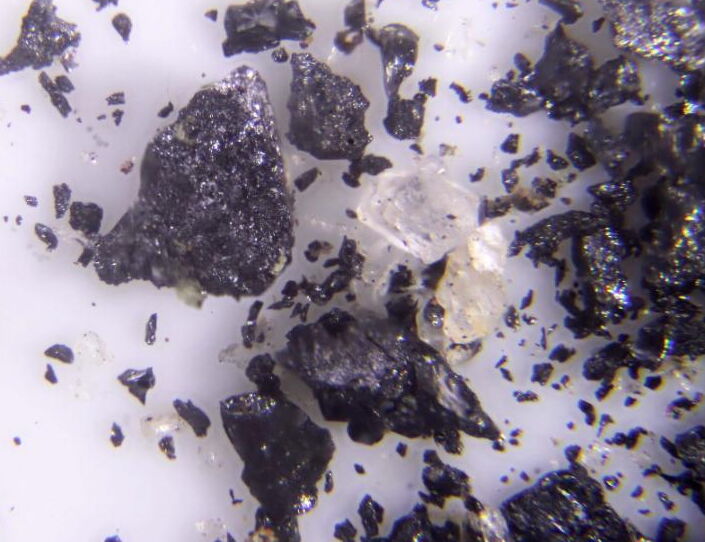

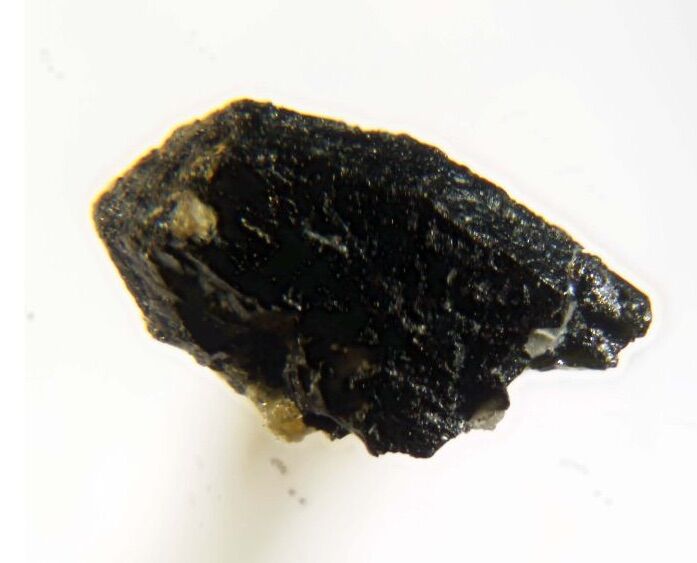

In the same group
7 members

Literature, links & citation

Citations
  1. 1963Fleischer, Michael (1963) New Mineral Names. American Mineralogist, 48 (11-12) 1413-1421
  2. 1963Nickel, E. H., Rowland, J. F., McAdam, R. C. (1963) Wodginite - a new tin-manganese tantalate from Wodgina, Australia and Bernic Lake, Manitoba. The Canadian Mineralogist, 7 (3) 390-402
  3. 1966Turnock, A. C. (1966) Synthetic wodginite, tapiolite and tantalite. The Canadian Mineralogist, 8 (4) 461-470
  4. 1974Graham, J.; Thornber, M. R. (1974) The crystal chemistry of complex niobium and tantalum oxides. II. Composition and structure of wodginite from Wodgina, Australia. American Mineralogist, 59 (9-10). 1040-1044
  5. 1976Ferguson, R. B., Hawthorne, F. C., Grice, J. D. (1976) The crystal structures of tantalite, ixiolite and wodginite from Bernic Lake, Manitoba. II. Wodginite. The Canadian Mineralogist, 14 (4) 550-560
