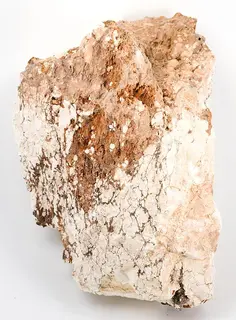

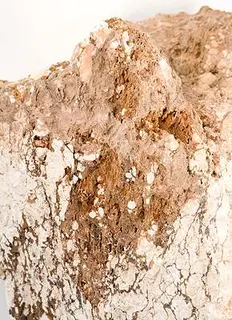

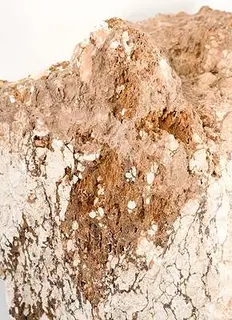

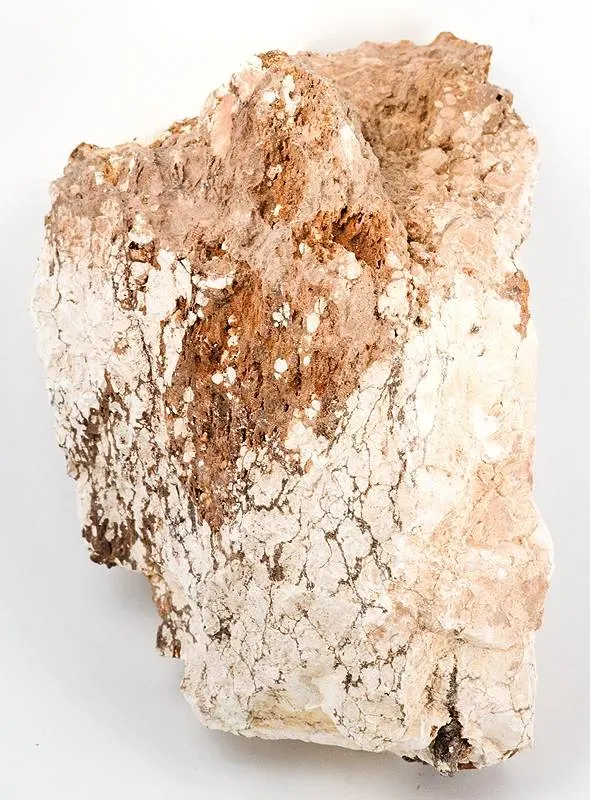

Tinticite

Fe3+3(PO4)2(OH)3 · 3H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Ttc
Discovered
1946
Also known as
  • Tinticiet

Where it forms, where it's found

Geological setting

Interaction of phosphatic solutions derived from bat guano reacting on oxidizing pyrite in a cave.

Rocks containing apatite and jarosite

Type locality
Unnamed cave
  1. Tintic Standard Mine
  2. Dividend
  3. East Tintic Mining District
  4. Utah County
  5. Utah
  6. USA

39.9545°, -112.0630°

20recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Creamy white with yellowish or brownish tint · bright ocher-yellow
Density
2.8 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.745 – 1.7455
Surface relief
High
Principal indices
nα 1.745 · nγ 1.7455
Dispersion
strong
Michel-Lévy diagramhighlighted lineδ = 0.0005
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]5 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation5 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 7.646(2) Å · b = 7.962(2) Å · c = 9.998(2) Å
Cell angles
α = 67.87(2) ° · β = 76.06(2) ° · γ = 64.06(2) °
Ratio a:b:c
1 : 1.041 : 1.308
Unit cell volume
504.9 ų
Morphology

Thick clay-like coatings or fine-grained massive nodules composed of platy crystals to 1.5 μm.

Type-locality form

Dense, earthy to porcelainous masses.

Comment

Originally assumed to have point group 2/m, m, or 2, with space group P2/m, Pm, or P2. Orthorhombic symmetry was also proposed.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1415.999223.986
48.43%
26FeIronIron355.845167.535
36.22%
15PPhosphorusPhosphorus230.97461.948
13.39%
1HHydrogenHydrogen91.0089.072
1.96%
Total462.541100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • V
  • S
  • As

Synonyms

  • Tinticiet

In other languages

German
Tinticit
Spanish
Tinticita
Italian
Tinticite

Classification

Strunz
10th ed.

8.DC.32

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DCWith only medium-sized cations, (OH, etc.):RO4 = 1:1 and < 2:1Group
  • 8.DC.32TinticiteSpecies
Dana
8th ed.

42.12.04.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.12(AB)4(XO4)3Zq·xH2OType
  • 42.12.04Tinticite GroupGroup
  • 42.12.04.01TinticiteSpecies
CIM

19.13.7

  • 19PhosphatesClass
  • 19.13Phosphates of Fe aloneGroup
  • 19.13.7TinticiteSpecies

Group, growth & confusion

Often grow together
4 minerals
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. Kolitsch, U., Lengauer, C.L., Giester, G. (2014) Crystal structures and isotypism of the iron arsenate kamarizaite and the iron phosphate tinticite. 92nd Annual Meeting of the DMG, Jena, Germany, September 21-24; abstract in Programme, 257.
  2. 1946Stringham, Bronson (1946) Tinticite, a new mineral from Utah. American Mineralogist, 31 (7-8) 395-400
  3. 1962Stringham, Bronson (1962) Validity of tinticite. American Mineralogist, 47 (9-10) 1187-1188
  4. 1988Melgarejo, J.C., Galí, S. and Ayora, C. (1988): Tinticite: new structural and chemical data. Neues Jahrbuch für Mineralogie, Monatshefte 1988, 446-453.
  5. 2000Rius, Jordi, Louër, Daniel, Louër, Michèle, Galí, Salvador, Melgarejo, Joan Carles (2000) Structure solution from powder data of the phosphate hydrate tinticite. European Journal of Mineralogy, 12 (3) 581-588 doi:10.1127/0935-1221/2000/0012-0581DOI: 10.1127/0935-1221/2000/0012-0581
