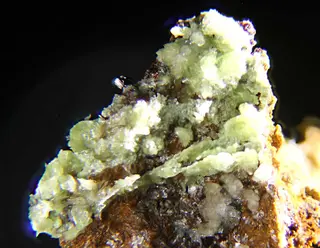

Montgomeryite

Ca4MgAl4(PO4)6(OH)4 · 12H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Mgm
Discovered
1940
Also known as
  • Montgomeryiet

Where it forms, where it's found

Geological setting

Phosphate nodules in sedmimentary rocks.

Granitic pegmatites

Type locality
Clay Canyon
  1. Fairfield
  2. Sunshine Mining District
  3. Utah County
  4. Utah
  5. USA

40.2764°, -112.1604°

47recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Dark green to light green · colourless · red · yellow

Coloration may be zoned.

Cleavage
Perfect

On (010), perfect; on (100), poor.

Density
2.53 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 75° · 2V calc = 78°
Refractive index
1.572 – 1.582
Surface relief
Moderate
Principal indices
nα 1.572 · nβ 1.578 · nγ 1.582
Pleochroism
Weak

X = Colourless to pale green Y = Z = Colourless also, may exhibit: X = Light orange-brown Y = Pale magenta-pink Z = Light orange-brown

Dispersion
r < v strong
Michel-Lévy diagramhighlighted lineδ = 0.0100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]100 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation100 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#7
Cell parameters
a = 10.02 Å · b = 24.12 Å · c = 6.24 Å
Cell angles
β = 91.55 °
Ratio a:b:c
1 : 2.407 : 0.623
Z
2
Morphology

Crystals lathlike, flattened on (010) and elongated and striated along [001]; terminated by pyramids. (010) dominant, with many {hk0} vicinal prism forms. Commonly occur in subparallel growths in contact on (010). Massive; as subparallel aggregates of coarse plates.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen4015.999639.960
55.82%
15PPhosphorusPhosphorus630.974185.844
16.21%
20CaCalciumCalcium440.078160.312
13.98%
13AlAluminiumAluminium426.982107.928
9.41%
1HHydrogenHydrogen281.00828.224
2.46%
12MgMagnesiumMagnesium124.30524.305
2.12%
Total1146.573100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Montgomeryiet

In other languages

German
Montgomeryit
Italian
Montgomeryite

Classification

Strunz
10th ed.

8.DH.25

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DHWith large and medium-sized cations, (OH, etc.):RO4 < 1:1Group
  • 8.DH.25MontgomeryiteSpecies
Dana
8th ed.

42.11.08.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.11(AB)3(XO4)2Zq·xH2OType
  • 42.11.08Montgomeryite groupGroup
  • 42.11.08.01MontgomeryiteSpecies
CIM

19.8.12

  • 19PhosphatesClass
  • 19.8Phosphates of Al and other metalsGroup
  • 19.8.12MontgomeryiteSpecies

Group, growth & confusion

In the same group
2 members
Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1940Larsen, E.S. (1940) American Mineralogist: 25: 315.
  2. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  3. 1974Moore, Paul Brian, Araki, Takaharu (1974) Montgomeryite, Ca4Mg(H2O)12[Al4(OH)4(PO4)6]: Its crystal structure and relation to vauxite, Fe2+2(H2O)4[Al4(OH)4(H2O)4(PO4)4]·4H2O. American Mineralogist, 59 (7-8) 843-850
  4. 1976Fanfani, Luca, Nunzi, Antonio, Zanazzi, Pier Francesco, Zanzari, Anna Rosa (1976) Additional data on the crystal structure of montgomeryite. American Mineralogist, 61 (1-2) 12-14
  5. 1983Leavens, Peter B., Roberts, Willard L., Dunn, Pete J., Campbell, Thomas J. (1983) Red Montgomeryite and Associated Minerals from the Tip Top Pegmatite [South Dakota] With Notes on Kingsmountite and Calcioferrite. The Mineralogical Record, 14 (3) 195-197
