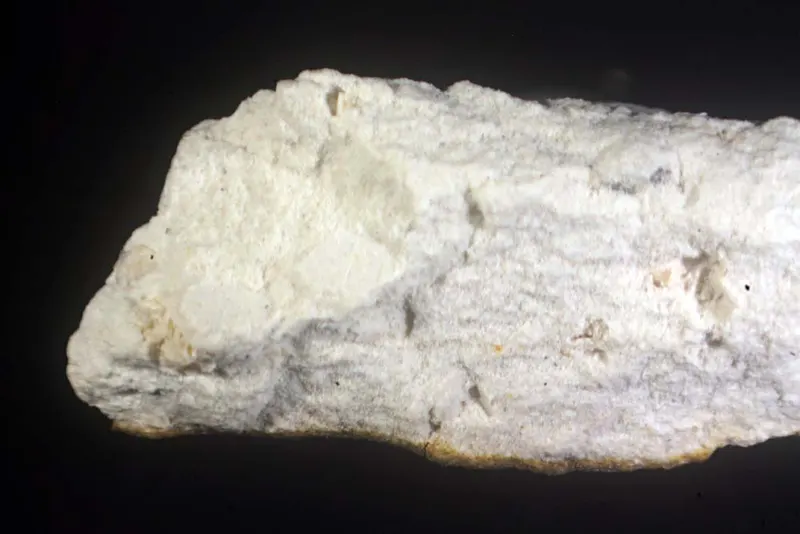

Tobelite

(NH4)Al2(Si3Al)O10(OH)2
IMA status
  • Approved
IMA symbol
Tbl
Discovered
1982
Also known as
  • Tobeliet
  • Tobelit

Where it forms, where it's found

Geological setting

1) Hydrothermally altered biotite-andesite dyke 2) Hydrothermal alteration product of Cretaceous rhyolitic tuff

Type locality
Horou deposit
  1. Kamo District
  2. Hiroshima Prefecture
  3. Japan
11recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
White · yellow-green
Tenacity
waxy
Cleavage
Perfect

(001)

Density
2.58 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 28° · 2V calc = 28 – 30°
Refractive index
1.555 – 1.595
Surface relief
Moderate
Principal indices
nα 1.555 – 1.560 · nβ 1.575 – 1.587 · nγ 1.581 – 1.595
Dispersion
weak
Michel-Lévy diagramhighlighted lineδ = 0.0305
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]305 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation305 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 5.219(4) Å · b = 8.986(3) Å · c = 10.447(2) Å
Cell angles
β = 101.31(1) °
Ratio a:b:c
1 : 1.722 : 2.002
Z
2
Morphology

aggregates of crystals and flakes, up to 0.1 mm.

Type-locality form

Aggregates of minute flakes (a few microns) in a groundmass or replacing feldspar and biotite phenocrysts, and occasionally forms lamellar crystals up to 0.2 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1215.999191.988
50.89%
14SiSiliconSilicon328.08584.255
22.34%
13AlAluminiumAluminium326.98280.946
21.46%
7NNitrogenNitrogen114.00714.007
3.71%
1HHydrogenHydrogen61.0086.048
1.60%
Total377.244100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Fe
  • Mg
  • Na
  • H2O

Synonyms

  • Tobeliet
  • Tobelit

In other languages

French
tobélite
German
IMA 1981-021 · Tobelith
Italian
Tobelite
Japanese
砥部雲母

Classification

Strunz
10th ed.

9.EC.15

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.ECPhyllosilicates with mica sheets, composed of tetrahedral and octahedral netsGroup
  • 9.EC.15TobeliteSpecies
Dana
8th ed.

71.02.2a.07

  • 71Phyllosilicates Sheets of Six-membered RingsClass
  • 71.02Sheets of 6-membered rings with 2:1 layersType
  • 71.02.2a— unnamed intermediate level —Group
  • 71.02.2a.07TobeliteSpecies
CIM

16.5.5

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.5— unnamed intermediate level —Group
  • 16.5.5TobeliteSpecies

Group, growth & confusion

In the same group
6 members

Literature, links & citation

Citations
  1. 1982Higashi, S. (1982) Tobelite, a new ammonium dioctahedral mica. Mineralogical Journal: 11: 138-146.
  2. 1983Dunn, P. J.; Cabri, L. J.; Clark, A. M.; Fleischer, M. (1983) New mineral names. American Mineralogist, 68 (7-8). 849-852
  3. 1987Voncken, J.H.L., Wevers, J.M.A.R., van der Eerden, A.M.J., Bos, A., Jansen, J.B.H. (1987) Hydrothermal synthesis of tobelite, NH4Al2Si3AlO10(OH)2, from various starting materials and implications for its occurrence in nature. Geologie en Mijnbouw: 66: 259-269.
  4. 1992Wilson, Paula N. (1992) Characterization of Hydrothermal Tobelitic Veins from Black Shale, Oquirrh Mountains, Utah. Clays and Clay Minerals, 40 (4) 405-420 doi:10.1346/ccmn.1992.0400405DOI: 10.1346/ccmn.1992.0400405
  5. 1998Rieder, M., Cavazzini, G., D’Yakonov, Y.S., Frank-Kamenetskii, V.A., Gottardt, G., Guggenheim, S., Koval, P.V., Muller, G., Neiva, A.M.R., Radoslovich, E.W., Robert, J.L., Sassi, F.P., Takeda, H., Weiss, Z., Wones, D.R. (1998) Nomenclature of the micas. The Canadian Mineralogist, 36 (3) 905-912
