Tristramite

(Ca,U4+,Fe3+)(PO4,SO4) · 2H2O
IMA status
  • Approved
IMA symbol
Ttm
Discovered
1982
IMA approved
1982
Also known as
  • IMA1982-037
  • Tristramiet

Where it forms, where it's found

Geological setting

Uraninite (var. pitchblende)-bearing quartz veins, with sulfides

Type locality
Wheal Trewavas (Trewavas Cliff Mine)
  1. Rinsey
  2. Breage
  3. Cornwall
  4. England
  5. UK

50.0903°, -5.3564°

6recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789103 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Light yellow · greenish-yellow
Cleavage
None Observed
Density
3.8 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.644 – 1.664
Surface relief
High
Principal indices
nω 1.644 · nε 1.664
Pleochroism
Not Visible

Under crossed polars there is a tendency to show an anomalous blue birefringence colour.

UV response
Does not fluoresce in either short-wave or long-wave UV
Michel-Lévy diagramhighlighted lineδ = 0.0200
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]200 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation200 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
#119
Cell parameters
a = 6.913(6) Å · c = 6.422(6) Å
Z
3
Type-locality form

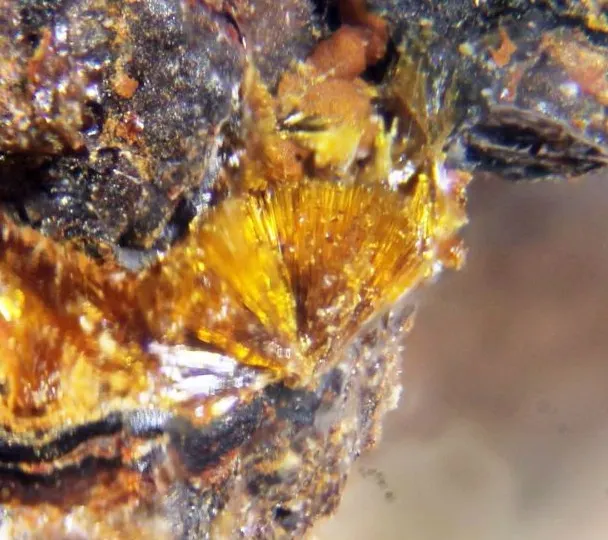

Fine-grained aggregates of acicular to fibrous crystals and as coarser-grained infillings occupying fine fractures and cavities.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium1238.029238.029
42.43%
8OOxygenOxygen1015.999159.990
28.52%
26FeIronIron155.84555.845
9.95%
20CaCalciumCalcium140.07840.078
7.14%
16SSulfurSulfur132.06032.060
5.72%
15PPhosphorusPhosphorus130.97430.974
5.52%
1HHydrogenHydrogen41.0084.032
0.72%
Total561.008100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1982-037
  • Tristramiet

In other languages

German
IMA 1982-037 · Tristramit
Italian
Tristramite
Chinese
水磷钙铀矿

Classification

Strunz
10th ed.

8.CJ.45

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CJWith only large cationsGroup
  • 8.CJ.45TristramiteSpecies
Dana
8th ed.

40.04.07.06

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.04(AB)5(XO4)2·xH2OType
  • 40.04.07Rhabdophane GroupGroup
  • 40.04.07.06TristramiteSpecies
CIM

22.3.22

  • 22Phosphates, Arsenates or Vanadates with other AnionsClass
  • 22.3Phosphates, arsenates or vanadates with sulphatesGroup
  • 22.3.22TristramiteSpecies

Group, growth & confusion

In the same group
6 members

Literature, links & citation

Citations
  1. 1983Atkin, D., Basham, I. R., Bowles, J. F. W. (1983) Tristramite, a new calcium uranium phosphate of the rhabdophane group. Mineralogical Magazine, 47 (344) 393-396 doi:10.1180/minmag.1983.047.344.18 DOI: 10.1180/minmag.1983.047.344.18
  2. 1984Dunn, Pete J., Fleischer, Michael, Francis, Carl A., Langley, Richard H., Kissin, Stephen A., Shigley, Hames E., Vanko, David A., Zilczer, Janet A. (1984) New mineral names. American Mineralogist, 69 (7-8) 810-815
  3. 2005(2005) Tristramite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2013Guang, F., Xiang-kum, G.E., A-peng, Y.U. (2013) Discovery of tristramite in China. Acta Mineralogica Sinica: 33: 265-270.
