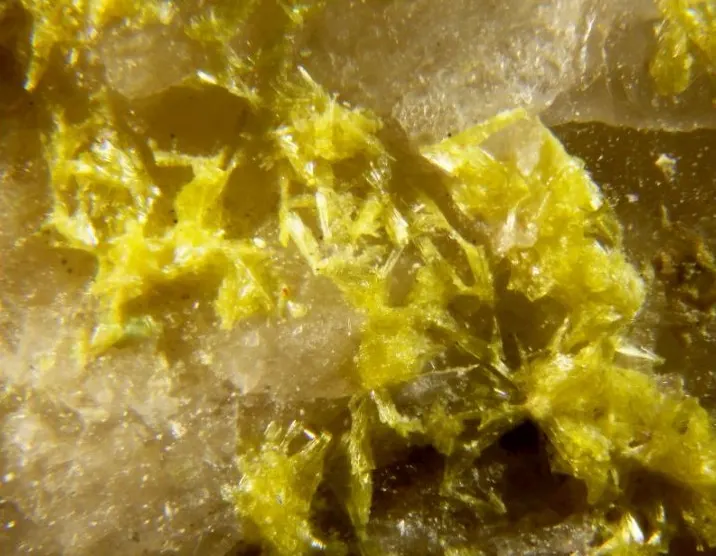

Althupite

AlTh(UO2)7(PO4)4O2(OH)5 · 15H2O
IMA status
  • Approved
IMA symbol
Ahp
Discovered
1986
IMA approved
1986
Also known as
  • Althupiet
  • Althupitt
  • IMA1986-003

Where it forms, where it's found

Geological setting

A secondary mineral in the uraniferous zone of an altered granite pegmatite.

Type locality
Kobokobo pegmatite
  1. Mwenga Territory
  2. South Kivu
  3. DR Congo

-3.1000°, 28.1333°

2recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789103.5 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Yellow
Streak
Yellow
Tenacity
flexible
Density
3.91 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 31° · 2V calc = 34°
Refractive index
1.62 – 1.665
Surface relief
Moderate
Principal indices
nα 1.620 · nβ 1.661 · nγ 1.665
Birefringence
0.045
Pleochroism
Visible

X = very pale yellow, Y = Z = yellow

Dispersion
r < v strong
Extinction
Z ^ c = 15°, X ~ a
UV response
Apparently not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0450
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]450 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation450 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
P-1
Cell parameters
a = 10.953 Å · b = 18.567 Å · c = 13.504 Å
Cell angles
α = 72.64 ° · β = 68.20 ° · γ = 84.21 °
Ratio a:b:c
1 : 1.695 : 1.233
Z
2
Morphology

As thin tabular crystals, flattened on (100) and terminated by (011) and (021), to 0.1 mm, and in parallel groups.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium7238.0291666.203
57.13%
8OOxygenOxygen5215.999831.948
28.53%
90ThThoriumThorium1232.038232.038
7.96%
15PPhosphorusPhosphorus430.974123.896
4.25%
1HHydrogenHydrogen351.00835.280
1.21%
13AlAluminiumAluminium126.98226.982
0.92%
Total2916.347100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Althupiet
  • Althupitt
  • IMA1986-003

In other languages

French
althupite
German
Althupit · IMA 1986-003
Italian
althupite
Russian
альтупит
Arabic
ألثوبيت

Classification

Strunz
10th ed.

8.EC.25

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.EUranyl phosphates and arsenatesDivision
  • 8.ECUO2:RO4 = 3:2Group
  • 8.EC.25AlthupiteSpecies
Dana
8th ed.

42.04.13.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.04(AB)5(XO4)2Zq·xH2OType
  • 42.04.13— unnamed intermediate level —Group
  • 42.04.13.01AlthupiteSpecies
CIM

19.11.33

  • 19PhosphatesClass
  • 19.11Phosphates of UGroup
  • 19.11.33AlthupiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1987Piret, Paul, Deliens, Michel (1987) Les phosphates d'uranyle et d'aluminium de Kobokobo. IX. L'althupite AlTh(UO2)[(UO2)3O(OH)(PO4)2]2(OH)3·15H2O, nouveau minéral ; propriétés et structure cristalline. Bulletin de Minéralogie, 110 (1) 65-72 doi:10.3406/bulmi.1987.8026DOI: 10.3406/bulmi.1987.8026
  2. 1988Hawthorne, Frank C., Burke, Ernst A. J., Ercit, T. Scott, Grew, Edward S., Grice, Joel D., Jambor, John L., Puziewicz, Jacek, Roberts, Andrew C., Vanko, David A. (1988) New Mineral Names. American Mineralogist, 73 (1-2) 189-199
  3. 2005(2005) Althupite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2005Burns, Peter C. (2005) U6+ minerals and inorganic compounds: insights into an expanded structural hierarchy of crystal structures. The Canadian Mineralogist, 43 (6) 1839-1894 doi:10.2113/gscanmin.43.6.1839 DOI: 10.2113/gscanmin.43.6.1839
