Phuralumite

Al2[(UO2)3(PO4)2O(OH)](OH)3(H2O)9
IMA status
  • Approved
IMA symbol
Pha
Discovered
1978
IMA approved
1978
Also known as
  • IMA1978-044
  • Phuralumiet

Where it forms, where it's found

Geological setting

beryl-columbite pegmatite

Type locality
Kobokobo pegmatite
  1. Mwenga Territory
  2. South Kivu
  3. DR Congo

-3.1000°, 28.1333°

3recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Lemon yellow
Cleavage
Perfect

On (010)

Density
3.383 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 40° · 2V calc = 38°
Refractive index
1.559 – 1.624
Surface relief
Moderate
Principal indices
nα 1.559 · nβ 1.616 · nγ 1.624
Pleochroism
Weak

Colorless to very pale yellow on Y and Z

Dispersion
r < v moderate
UV response
Phuralumite is not fluorescent in UV, however, it is often associated with nearly identical looking minerals which are variously fluorescent in UV, usually in various shades of yellow to greenish yellow.
Notes

X = b, Y near elongation

Michel-Lévy diagramhighlighted lineδ = 0.0650
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]650 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation650 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 9.4407(3) Å · b = 20.8596(8) Å · c = 13.4326(4) Å
Cell angles
β = 107.905(4) °
Ratio a:b:c
1 : 2.210 : 1.423
Unit cell volume
2517.4 ų
Z
4
Type-locality form

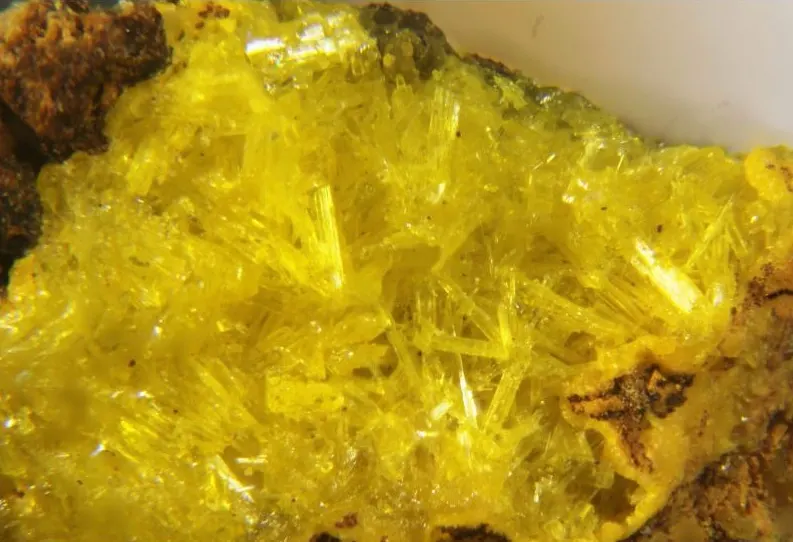

Lemon-yellow prismatic crystals, to 0.5 mm

Comment

Space-group setting P21/n. Date from et al. (2017). Cell of type material was given as a = 13.87, b = 20.79 Å, c = 9.38, β = 112°.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium3238.029714.087
54.92%
8OOxygenOxygen2815.999447.972
34.46%
15PPhosphorusPhosphorus230.97461.948
4.76%
13AlAluminiumAluminium226.98253.964
4.15%
1HHydrogenHydrogen221.00822.176
1.71%
Total1300.147100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1978-044
  • Phuralumiet

In other languages

German
IMA 1978-044 · Phuralumit
Italian
Phuralumite

Classification

Strunz
10th ed.

8.EC.05

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.EUranyl phosphates and arsenatesDivision
  • 8.ECUO2:RO4 = 3:2Group
  • 8.EC.05PhuralumiteSpecies
Dana
8th ed.

42.04.06.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.04(AB)5(XO4)2Zq·xH2OType
  • 42.04.06Phuralumite GroupGroup
  • 42.04.06.01PhuralumiteSpecies
CIM

19.11.29

  • 19PhosphatesClass
  • 19.11Phosphates of UGroup
  • 19.11.29PhuralumiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1979Deliens, Michel, Piret, Paul (1979) Les phosphates d'uranyle et d'aluminium de Kobokobo. II. La phuralumite Al2(UO2)3(PO4)2(OH)6·10H2O et l'upalite Al(UO2)3(PO4)2(OH)3, nouveaux minéraux. Bulletin de Minéralogie, 102 (4) 333-337 doi:10.3406/bulmi.1979.7326DOI: 10.3406/bulmi.1979.7326
  2. 1979Piret, P., Piret-Meunier, J., Declercq, J. P. (1979) Structure of phuralumite. Acta Crystallographica Section B Structural Crystallography and Crystal Chemistry, 35 (8) 1880-1882 doi:10.1107/s0567740879007950DOI: 10.1107/s0567740879007950
  3. 1980Fleischer, M.; Mandarino, J.A.; Pabst, A. (1980) New mineral names. American Mineralogist, 65 (1-2). 205-210
  4. 2005(2005) Phuralumite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2005Burns, Peter C. (2005) U6+ minerals and inorganic compounds: insights into an expanded structural hierarchy of crystal structures. The Canadian Mineralogist, 43 (6) 1839-1894 doi:10.2113/gscanmin.43.6.1839 DOI: 10.2113/gscanmin.43.6.1839
