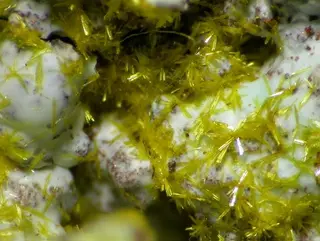

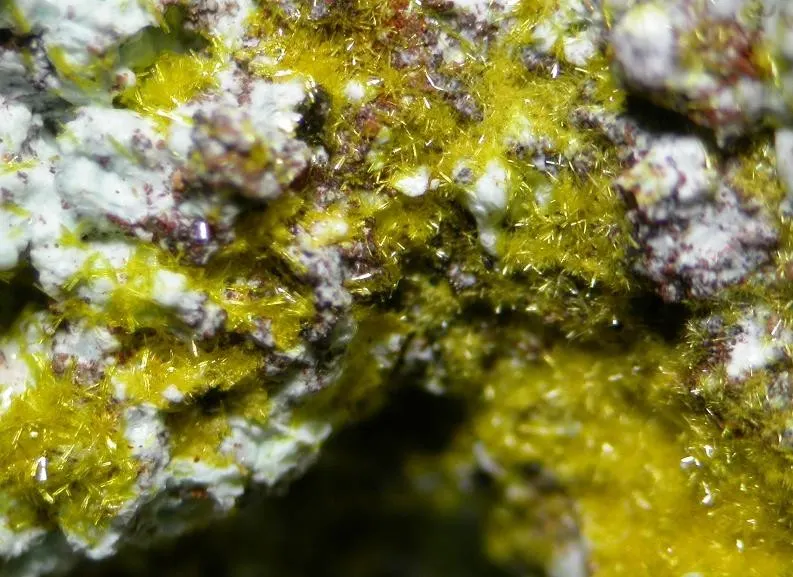

Phurcalite

Ca2(UO2)3O2(PO4)2 · 7H2O
IMA status
  • Approved
IMA symbol
Phu
Discovered
1977
IMA approved
1977
Also known as
  • IMA1977-040
  • Nisait
  • Nisaita
  • +2 more

Where it forms, where it's found

Type locality
Streuberg Quarry
  1. Bergen
  2. Vogtlandkreis
  3. Saxony
  4. Germany

50.4692°, 12.2617°

32recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Yellow
Streak
Pale yellow.
Tenacity
brittle
Cleavage
Perfect

(001) and (010), perfect. Also (100).

Fracture
Conchoidal
Density
4.22 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 68° · 2V calc = 66°
Refractive index
1.69 – 1.749
Surface relief
High
Principal indices
nα 1.690 · nβ 1.730 · nγ 1.749
Pleochroism
Strong

X = colorless to pale yellow; Y = very pale yellow to pale yellow; Z = bright yellow to golden yellow.

Dispersion
weak to moderate, r > v.
Extinction
Parallel. X = b; Y = a; Z = c.
UV response
Not fluorescent in UV.
Notes

α calculated. Absorption: X < Y < Z. Elongation positive.

Michel-Lévy diagramhighlighted lineδ = 0.0590
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]590 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation590 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Pbca
Cell parameters
a = 17.3785(8) Å · b = 15.9864(6) Å · c = 13.5477(6) Å
Ratio a:b:c
1 : 0.920 : 0.780
Unit cell volume
3763.8 ų
Z
8
Morphology

Tablets flattened on [010] and elongated on [001].

Type-locality form

Tablets, flattened on [010] and elongated on [001], with crystals up to 1 mm long.

Comment

As-enriched material from Jáchymov

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium3238.029714.087
57.67%
8OOxygenOxygen2315.999367.977
29.72%
20CaCalciumCalcium240.07880.156
6.47%
15PPhosphorusPhosphorus230.97461.948
5.00%
1HHydrogenHydrogen141.00814.112
1.14%
Total1238.280100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1977-040
  • Nisait
  • Nisaita
  • Nisaite
  • Phurcaliet

In other languages

German
IMA 1977-040 · Phurcalit
Italian
Phurcalite

Classification

Strunz
10th ed.

8.EC.35

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.EUranyl phosphates and arsenatesDivision
  • 8.ECUO2:RO4 = 3:2Group
  • 8.EC.35PhurcaliteSpecies
Dana
8th ed.

42.04.07.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.04(AB)5(XO4)2Zq·xH2OType
  • 42.04.07— unnamed intermediate level —Group
  • 42.04.07.01PhurcaliteSpecies
CIM

19.11.17

  • 19PhosphatesClass
  • 19.11Phosphates of UGroup
  • 19.11.17PhurcaliteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1978Deliens, Michel, Piret, Paul, Deliens, Michel, Piret, Paul (1978) La phurcalite, Ca2(UO2)3(PO4)2(OH)4·4H2O, nouveau minéral. Bulletin de Minéralogie, 101 (3) 356-358 doi:10.3406/bulmi.1978.7197 DOI: 10.3406/bulmi.1978.7197
  2. 1978Fleischer, Michael (1978) New mineral names. American Mineralogist, 63 (11-12). 1282-1284
  3. 1978Piret, P., Declercq, J.-P. (1978) Phurcalite. Acta Crystallographica Section B Structural Crystallography and Crystal Chemistry, 34 (5) 1677-1679 doi:10.1107/s0567740878006317DOI: 10.1107/s0567740878006317
  4. 1979Fleischer, Michael, Chao, George Y., Pabst, and Adolf (1979) New Mineral Names. American Mineralogist, 64 (1-2) 241-245
  5. 1989Braithwaite, R. S. W.; Paar, W. H.; Chisholm, J. E. (1989): Phurcalite from Dartmoor, southwest England, and its identity with 'nisaite' from Portugal. Mineralogical Magazine, 53, 583-589.
