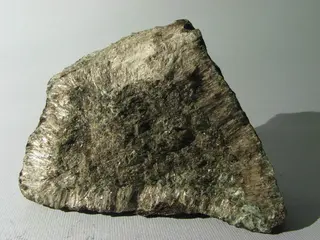

Anthophyllite

◻Mg2Mg5Si8O22(OH)2
IMA status
  • Approved
  • Grandfathered
IMA symbol
Ath
Discovered
1801
Also known as
  • Anthofyllit
  • Anthogrammit
  • Anthogrammita
  • +12 more

Where it forms, where it's found

Geological setting

Generally occurs in medium- or high-grade metamorphic rocks; in amphibolites, gneisses, metaquartzites, iron formations, granulites, and schists derived from argillaceous sediments, ultramafic, or mafic igneous rocks; also as a retrograde reaction product.

Type locality
Anthophyllite type locality
  1. Kjennerudvann Silver Mine
  2. Kjennerudvannet North
  3. Øvre Eiker
  4. Buskerud
  5. Norway

59.6919°, 9.6842°

653recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789105.5 – 6/ 10 MOHS

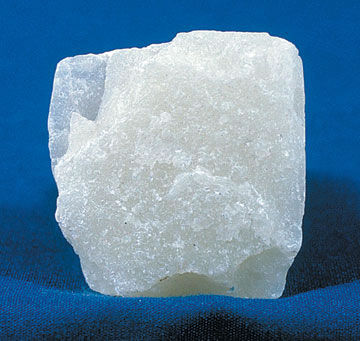

  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous · silky
Transparency
Transparent · Translucent
Colour
White · greenish grey · green · clove brown · or brownish green
Streak
White to greyish-white.
Cleavage
Perfect

Perfect on (210), imperfect on (010), (100)

Fracture
Conchoidal
Density
2.85 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 57 – 90° · 2V calc = 82 – 90°
Refractive index
1.598 – 1.697
Surface relief
Moderate
Principal indices
nα 1.598 – 1.674 · nβ 1.605 – 1.685 · nγ 1.615 – 1.697
Dispersion
r > v or r < v
Luminescence
Nonfluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0200
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]200 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation200 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#71
Cell parameters
a = 18.544(2) Å · b = 18.026(2) Å · c = 5.282(1) Å
Ratio a:b:c
1 : 0.972 : 0.285
Z
4
Crystal structure

Chemical composition

Impurities
  • Ti
  • Al
  • Mn
  • Ca
  • Na

Synonyms

  • Anthofyllit
  • Anthogrammit
  • Anthogrammita
  • Anthogrammite
  • Antholith (of Breithaupt)
  • Anthophylliet
  • Anthophylline
  • Antophyllit
  • Antophyllite
  • Gray Asbestos
  • Kupferit
  • Kupferita
  • Kupferite
  • Kupfferite
  • Magnesio-anthophyllite

In other languages

French
Anthogrammite · Anthophylite · Anthophylline · Anthophyllite · Kupférite · Magnésio-anthophyllite
German
Anthophyllit · Antophyllit
Spanish
Antofilita
Italian
anthophyllite · antofillite · magnesioanthophyllite · magnesioantofillite
Japanese
アンソフィライト · 直閃石
Chinese
直閃石
Russian
Антофиллит

Classification

Strunz
10th ed.

9.DD.05

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DDInosilicates with 2-periodic double chains, Si4O11; OrthoamphibolesGroup
  • 9.DD.05AnthophylliteSpecies
Dana
8th ed.

66.01.02.01

  • 66Inosilicates Double-width, Unbranched Chains, (w=2)Class
  • 66.01Amphiboles - Mg-Fe-Mn-Li subgroupType
  • 66.01.02— unnamed intermediate level —Group
  • 66.01.02.01AnthophylliteSpecies
CIM

14.21.5

  • 14Silicates not Containing AluminumClass
  • 14.21Silicates of Fe and MgGroup
  • 14.21.5AnthophylliteSpecies

Group, growth & confusion

In the same group
3 members
Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1801Schumacher, Christian Friedrich (1801) Versuch eines Verzeichnisses der in den Dänisch- Nordischen Staaten sich findenden einfachen Mineralien mit Tabellen der einfachen Fossilien nach ihren vorwaltenden Bestandtheilen. F. Brummer.
  2. 1948Rabbitt, John C. (1948) A new study of the anthophyllite series. American Mineralogist, 33 (5-6) 263-323
  3. 1963Chakraborty, K. L. (1963) Relationship of anthophyllite, cummingtonite and mangano-cummingtonite in the metamorphosed Wabush iron-formation, Labrador. The Canadian Mineralogist, 7 (5). 738-750

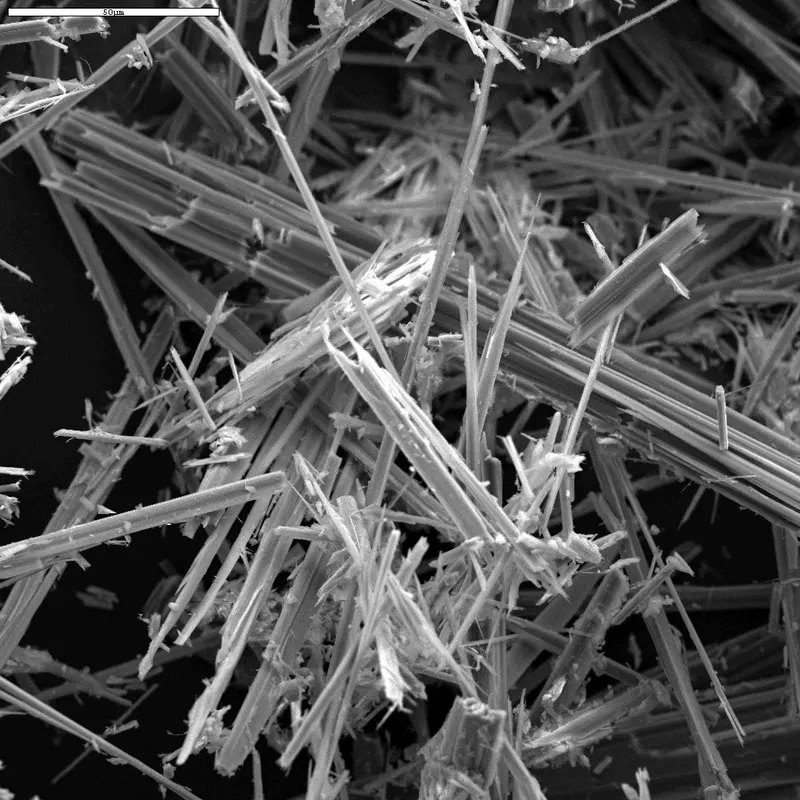

  4. 1980Veblen, David R (1980) Anthophyllite asbestos: microstructures, intergrown sheet silicates, and mechanisms of fiber formation. American Mineralogist, 65 (11-12) 1075-1086
  5. 1982Cressey, B. A., Whittaker, E. J. W., Hutchison, J. L. (1982) Morphology and alteration of asbestiform grunerite and anthophyllite. Mineralogical Magazine, 46 (338) 77-87 doi:10.1180/minmag.1982.046.338.13 DOI: 10.1180/minmag.1982.046.338.13
