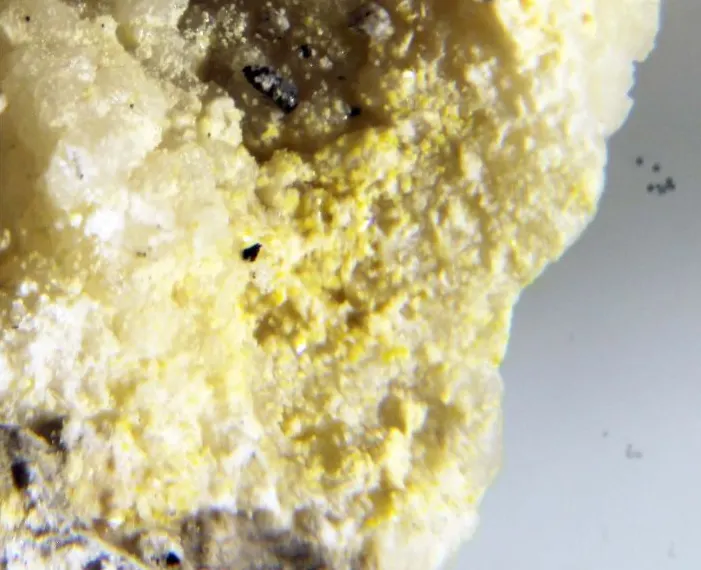

Berndtite

SnS2
IMA status
  • Approved
IMA symbol
Bti
Also known as
  • Berndtiet

Where it forms, where it's found

Geological setting

Secondary mineral in a tin deposit.

Type locality
Cerro de Potosí (Cerro Rico)
  1. Potosí (Potosí Municipality)
  2. Tomás Frías Province
  3. Potosí
  4. Bolivia

-19.6183°, -65.7497°

11recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789101 – 2/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Yellow-brown
Streak
Golden yellow
Cleavage
Distinct/Good

On (0001)

Density
4.5 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.705 – 1.93
Surface relief
Very high
Principal indices
nω 1.93 · nε 1.705
Pleochroism
Strong
Optical colour
Gray
Anisotropism
Dark greenish gray
Internal reflections
Intense brownish to orange-yellow
Tropism
Anisotropic
Michel-Lévy diagramhighlighted lineδ = 0.2250
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]2250 nm5th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation2250 nm
Order5th order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
P-3m1
Cell parameters
a = 3.639 Å · c = 5.868 Å
Z
1
Morphology

Tabular hexagonal crystals.

Type-locality form

Very fine inclusions in pyrite which has replaced stannite. Tabular habit .

Comment

On C6 polymorph

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
50SnTinTin1118.710118.710
64.93%
16SSulfurSulfur232.06064.120
35.07%
Total182.830100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Berndtiet

In other languages

German
Berndtit
Italian
Berndtite

Classification

Strunz
10th ed.

2.EA.20

  • 2Sulfides and SulfosaltsClass
  • 2.EMetal Sulfides, M: S <= 1:2Division
  • 2.EAM:S = 1:2 - With Cu, Ag, AuGroup
  • 2.EA.20BerndtiteSpecies
Dana
8th ed.

02.12.14.05

  • 02SulfidesClass
  • 02.12AmBnXp, with (m+n):p = 1:2Type
  • 02.12.14Melonite Group (Trigonal: P-3m1) AX2 typeGroup
  • 02.12.14.05BerndtiteSpecies
CIM

3.6.3

  • 3Sulphides, Selenides, Tellurides, Arsenides and Bismuthides (except the arsenides, antimonides and bismuthides of Cu, Ag and Au, which are included in Section 1)Class
  • 3.6Sulphides etc. of Sb and PbGroup
  • 3.6.3BerndtiteSpecies

Group, growth & confusion

In the same group
6 members
Often grow together
4 minerals

Literature, links & citation

Citations
  1. 1964Moh, G.H., Berndt, F. (1964) Two new natural tin sulfides, Sn2S3 and SnS2. Neues Jahrbuch für Mineralogie, Monatshefte: 3: 94-95.
  2. 1965Fleischer, Michael (1965) New Mineral Names. American Mineralogist, 50 (11-12) 2096-2111
  3. 1966Moh, G.H. (1966) Das binäre System Zinn-Schwefel und seine Minerale. Fortschritte der Mineralogie: 42: 211-211.
  4. 1972Clark, A.H. (1972) On the natural occurrence of tin sulphides (Benrdtite). Naturawissenschaften: 59: 361.
  5. 1973Fleischer, Michael (1973) New mineral names. American Mineralogist, 58 (3-4). 347-349
