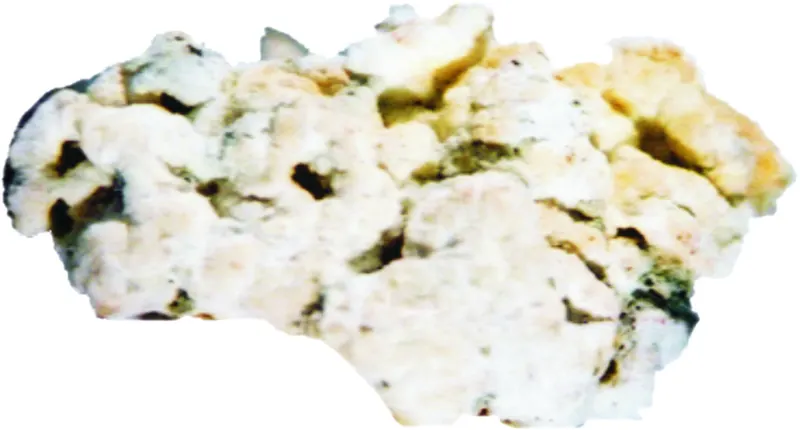

Bílinite

Fe2+Fe3+2(SO4)4 · 22H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Bli
Discovered
1913
Also known as
  • Bíliniet

Where it forms, where it's found

Geological setting

Altered lignite.

Type locality
Světec
  1. Teplice District
  2. Ústí nad Labem Region
  3. Czech Republic
18recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
White to yellowish

Semitransparent

Density
1.875 g/cm³

Optical

Optical type
Biaxial (+/-)
Refractive index
1.48 – 1.5
Surface relief
Low
Principal indices
nα 1.48 – 1.482 · nβ 1.5 · nγ 1.489 – 1.493
Dispersion
relatively weak
Extinction
Inclined 33-39 degrees.
Michel-Lévy diagramhighlighted lineδ = 0.0100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]100 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation100 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#14
Cell parameters
a = 6.208 Å · b = 24.333 Å · c = 21.255 Å
Cell angles
β = 100.3 °
Ratio a:b:c
1 : 3.920 : 3.424
Z
4
Morphology

Radial-fibrous aggregates.

Type-locality form

Radial-fibrous aggregates.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3815.999607.962
64.12%
26FeIronIron355.845167.535
17.67%
16SSulfurSulfur432.060128.240
13.53%
1HHydrogenHydrogen441.00844.352
4.68%
Total948.089100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Bíliniet

In other languages

German
Bílinit
Spanish
Bilinita
Italian
Bílinite

Classification

Strunz
10th ed.

7.CB.85

  • 7SulfatesClass
  • 7.CSulfates (selenates, etc.) without additional anions, with H2ODivision
  • 7.CBWith only medium-sized cationsGroup
  • 7.CB.85BíliniteSpecies
Dana
8th ed.

29.07.03.05

  • 29Hydrated Acid and Normal SulfatesClass
  • 29.07AB2(XO4)4·H2OType
  • 29.07.03Halotrichite Group (Monoclinic with 22 H2O)Group
  • 29.07.03.05BíliniteSpecies
CIM

25.10.21

  • 25SulphatesClass
  • 25.10Sulphates of Fe aloneGroup
  • 25.10.21BíliniteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. Powder Diffraction File (International Center for Diffraction Data) 25-1153.
  2. 1913Šebor (1913) Sborník Klubu Přírodovĕd: no. 2.
  3. 1914Šebor (1914) Neues Jahrbuch für Mineralogie, Geologie und Paleontologie, Heidelberg, Stuttgart: I: 395.
  4. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  5. 1985Sabelli C, Trosti-Ferroni R. (1985) A structural classification of sulfate minerals. Periodico di Mineralogia: 54: 1-46.
