Bornemanite

Na6(Na◻)Ba2Ti2Nb2(Si2O7)4(PO4)2O4(OH)2F2
IMA status
  • Approved
IMA symbol
Bma
IMA approved
1973
Also known as
  • Bornemaniet
  • IMA1973-053

Where it forms, where it's found

Geological setting

In the natrolite zone of alkalic pegmatites in a differentiated alkalic massif.

Type locality
Yubileinaya pegmatite
  1. Karnasurt Mountain
  2. Lovozersky District
  3. Murmansk Oblast
  4. Russia

67.8833°, 34.6333°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
pale yellow
Tenacity
brittle
Cleavage
Perfect

on (001)

Density
3.47 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 66° · 2V calc = 46 – 72°
Refractive index
1.682 – 1.72
Surface relief
High
Principal indices
nα 1.682 – 1.683 · nβ 1.687 – 1.695 · nγ 1.718 – 1.72
Pleochroism
Weak

X = Y = colourless; Z = brownish. Orientation X = c: Y = b: Z = a

Dispersion
strong
Michel-Lévy diagramhighlighted lineδ = 0.0365
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]365 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation365 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 5.4587(3) Å · b = 7.1421(5) Å · c = 24.528(2) Å
Cell angles
α = 96.790(1) ° · β = 96.927(1) ° · γ = 90.326(1) °
Ratio a:b:c
1 : 1.308 : 4.493
Unit cell volume
942.4 ų
Z
2
Type-locality form

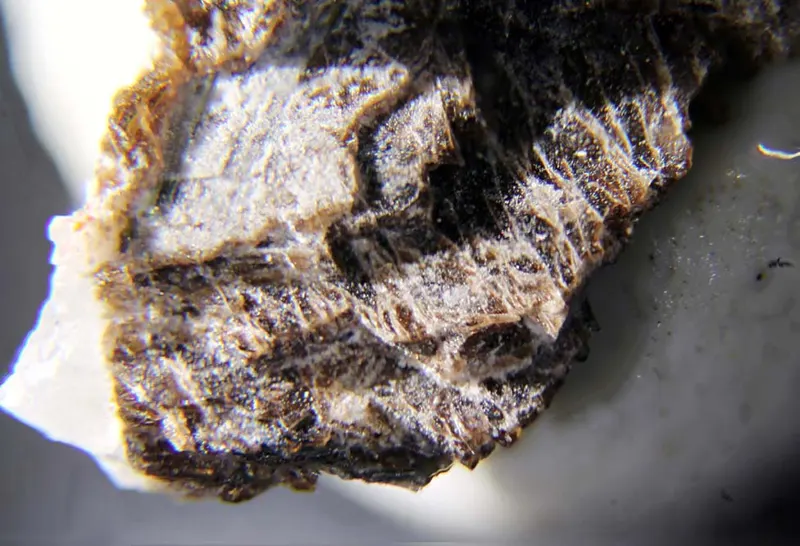

Platy aggregrates, to 1 cm, of fine leaflets along cleavages and on the surface of lomonossovite and in natrolite.

Comment

Pseudo-Ibam, 5.48, 7.10, 48.21 A.

Crystal structure

Chemical composition

Impurities
  • Zr
  • Al
  • Fe
  • Mn
  • Mg
  • Ca
  • Sr
  • Li
  • K
  • Rb

Synonyms

  • Bornemaniet
  • IMA1973-053

In other languages

German
Bornemanit · IMA 1973-053
Italian
Bornemanite
Chinese
磷硅铌钠钡石

Classification

Strunz
10th ed.

9.BE.50

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BESi2O7 groups, with additional anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BE.50BornemaniteSpecies
Dana
8th ed.

56.04.02.01

  • 56Sorosilicates Si2o7 Groups, with Additional O, Oh, F and H2oClass
  • 56.04Si2O7 Groups and O, OH, F, and H2O with [Si2O7] with other cation groupsType
  • 56.04.02Bornemanite GroupGroup
  • 56.04.02.01BornemaniteSpecies
CIM

17.6.8

  • 17Silicates Containing other AnionsClass
  • 17.6Silicates with phosphateGroup
  • 17.6.8BornemaniteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1975Men'shikov, Y.P., Bussen, I.V., Goyko, Y.A., Zabavnikova, N.I., Mer'kov, A.N., Khomyakov, A.P. (1975) Bornemanite, a new silicophosphate of sodium, titanium, niobium, and barium. Zapiski Vsesoyuznogo Mineralogicheskogo Obshchestva: 104(3): 322-326.
  2. 1976Fleischer, Michael, Chao, George Y., Mandarino, Joseph A. (1976) New Mineral Names. American Mineralogist, 61 (3-4) 338-341
  3. 1976Menshikov, Yu. P.; Bussen, I. V.; Goyko, Ye. A.; Zabavnikova, N. I.; Mer'kov, A. N.; Khomyakov, A. P. (1976) Bornemanite - a new silicophosphate of sodium, titanium, niobium, and barium. International Geology Review, 18 (8). 940-944 doi:10.1080/00206817609471302DOI: 10.1080/00206817609471302
  4. 2001(2001) Bornemanite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2001Ferraris, G., Belluso, E., Gula, A., Soboleva, S. V., Ageeva, O. A., Borutskii, B. E. (2001) A structural model of the layer titanosilicate bornemanite based on seidozerite and lomonosovite modules. The Canadian Mineralogist, 39 (6) 1665-1673 doi:10.2113/gscanmin.39.6.1665 DOI: 10.2113/gscanmin.39.6.1665
