Calciopetersite

CaCu6(PO4)2(PO3OH)(OH)6 · 3H2O
IMA status
  • Approved
IMA symbol
Cpts
IMA approved
2001
Also known as
  • Calciopetersiet
  • IMA2001-004

Where it forms, where it's found

Geological setting

Cavities in weathered, copper sulphide bearing quartz veins.

Type locality
Domašov nad Bystřicí quarry (Domstadtl quarry)
  1. Domašov nad Bystřicí (Domstadtl)
  2. Olomouc District
  3. Olomouc Region
  4. Czech Republic

49.7248°, 17.4417°

3recorded occurrences
Source · OpenStreetMap

Physical

Colour
Olive green
Streak
Light olive green
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
3.332 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.674 – 1.75
Surface relief
High
Principal indices
nω 1.674 · nε 1.75
Pleochroism

O light green with yellowish tint, E green

UV response
none
Michel-Lévy diagramhighlighted lineδ = 0.0760
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]760 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation760 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
#108
Cell parameters
a = 13.284 Å · c = 5.902 Å
Unit cell volume
902 ų
Z
2
Type-locality form

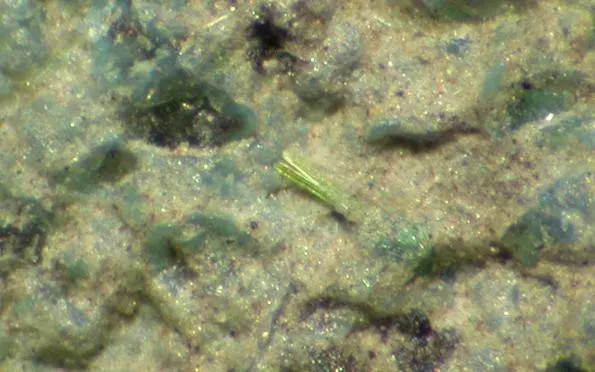

Minute acicular crystals with a hexagonal outline, up to 0.4 mm in length and 5–20 µm in width, clustered in fine radiating sprays up to 0.1 × 0.5 mm in size.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
29CuCopperCopper663.546381.276
44.16%
8OOxygenOxygen2115.999335.979
38.92%
15PPhosphorusPhosphorus330.97492.922
10.76%
20CaCalciumCalcium140.07840.078
4.64%
1HHydrogenHydrogen131.00813.104
1.52%
Total863.359100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Calciopetersiet
  • IMA2001-004

In other languages

German
Calciopetersit · IMA 2001-004
Italian
calciopetersite

Classification

Strunz
10th ed.

8.DL.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DLWith large and medium-sized cations, (OH, etc.):RO4 = 2:1Group
  • 8.DL.15CalciopetersiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1997Kolitsch, Uwe (1997) Das Ca-Analogen von Petersit und einige weitere Neufunde aus dem sächsisch-böhmischen Erzgebirge und dem Vogtland [The Ca analogue of petersite and some other new finds from the Saxon-Bohemian Erzgebirges and the Vogtland]. Mineralien-Welt, 8 (4). 17-20
  2. 2005Sejkora, J., Novotný, P., Novák, M., Šrein, V., Berlepsch, P. (2005) Calciopetersite from Domašov Nad Bystricí, northern Moravia, Czech Republic, a new mineral species of the mixite group. The Canadian Mineralogist, 43 (4) 1393-1400 doi:10.2113/gscanmin.43.4.1393 DOI: 10.2113/gscanmin.43.4.1393
  3. 2006Locock, A. J., Piilonen, P. C., Ercit, T. S., Rowe, R., Kolitsch, U. (2006) New mineral names. American Mineralogist, 91 (4) 710-715 doi:10.2138/am.2006.463 DOI: 10.2138/am.2006.463
  4. 2011Biagioni, C., Bonaccorsi, E., Orlandi, P. (2011) Occurrence and crystal structure of calciopetersite from Monte Beni (Firenzuola, Florence, Tuscany, Italy). Atti della Società Toscana di Scienze Naturali, Memorie: 116: 17-22.
  5. 2011Čejka, Jiří, Sejkora, Jiří, Plášil, Jakub, Keeffe, Eloise C., Bahfenne, Silmarilly, Palmer, Sara J., Frost, Ray L. (2011) A Raman and infrared spectroscopic study of Ca2+dominant members of the mixite group from the Czech Republic. Journal of Raman Spectroscopy, 42 (5). 1154-1159 doi:10.1002/jrs.2817DOI: 10.1002/jrs.2817
