Agardite-(Y)

YCu2+6(AsO4)3(OH)6 · 3H2O
IMA status
  • Approved
IMA symbol
Agr-Y
Discovered
1968
IMA approved
1968
Also known as
  • Agardiet-(Y)
  • Agarditt-(Y)
  • IMA1968-021

Where it forms, where it's found

Geological setting

Oxidation zone of copper veins or deposits

In the oxidation zone of some copper deposits.

Type locality
Bou Skour Mine
  1. Bou Skour mining district
  2. Agdz Cercle
  3. Zagora Province
  4. Drâa-Tafilalet Region
  5. Morocco

30.9297°, -6.3014°

89recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
bluish green to yellow green
Streak
greenish white
Tenacity
brittle
Cleavage
None Observed
Density
3.61 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.701 – 1.815
Surface relief
High
Principal indices
nω 1.701 – 1.723 · nε 1.770 – 1.815
Birefringence
0.075
Pleochroism
Non-pleochroic
Extinction
Parallel
Luminescence
Nonfluorescent
UV response
Not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0750
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]750 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation750 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
P63/m
Cell parameters
a = 13.583 Å · c = 5.895 Å
Z
2
Morphology

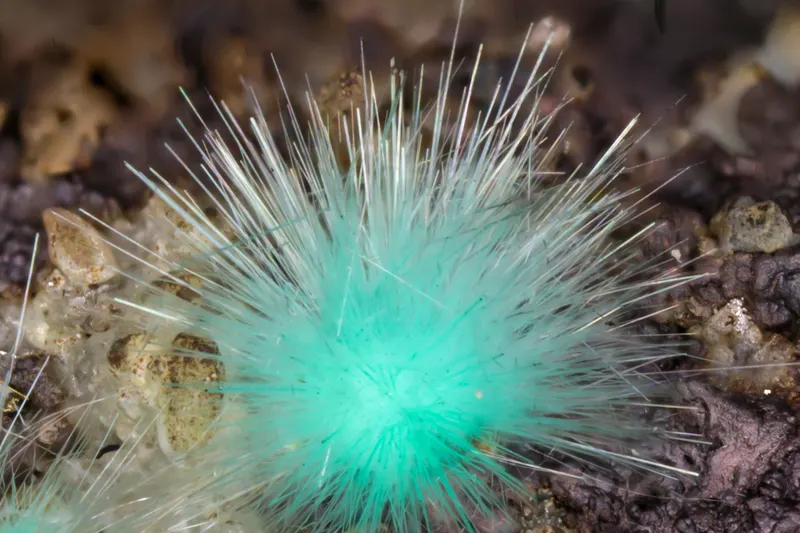

Crystals are acicular hexagonal prisms, elongated along [0001], a few mm long, may be stepped or hollow tubes; in radiating fibrous aggregates.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
29CuCopperCopper663.546381.276
36.56%
8OOxygenOxygen2115.999335.979
32.21%
33AsArsenicArsenic374.922224.766
21.55%
39YYttriumYttrium188.90688.906
8.52%
1HHydrogenHydrogen121.00812.096
1.16%
Total1043.023100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Agardiet-(Y)
  • Agarditt-(Y)
  • IMA1968-021

In other languages

German
Agardit-(Y) · IMA 1968-021
Italian
Agardite- · agardite-(Y)

Classification

Strunz
10th ed.

8.DL.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DLWith large and medium-sized cations, (OH, etc.):RO4 = 2:1Group
  • 8.DL.15Agardite-(Y)Species
Dana
8th ed.

42.05.01.02

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.05(AB)7(XO4)3Zq·xH2OType
  • 42.05.01Mixite group (Arsenate Series)Group
  • 42.05.01.02Agardite-(Y)Species
CIM

20.4.13

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.4Arsenates of Group III metals (Al, rare earths)Group
  • 20.4.13Agardite-(Y)Species

Group, growth & confusion

Often grow together
7 minerals

Literature, links & citation

Citations
  1. 1969Dietrich, Jacques E., Orliac, Marcel, Permingeat, François (1969) L'agardite, une nouvelle espèce minérale et le problème du chlorotile. Bulletin de Minéralogie, 92 (5) 420-434 doi:10.3406/bulmi.1969.6392 DOI: 10.3406/bulmi.1969.6392
  2. 1970Fleischer, M. (1970) New Mineral Names. American Mineralogist, 55 (7-8). 1444-1449
  3. 2006Frost, Ray L., Weier, Matt, Martens, Wayde N. (2006) Raman microscopy of synthetic goudeyite (YCu6(AsO4)2(OH)6·3H2O) Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy, 63 (3) 685-689 doi:10.1016/j.saa.2005.06.019DOI: 10.1016/j.saa.2005.06.019
  4. 2013Morrison, Shaunna M., Domanik, Kenneth J., Origlieri, Marcus J., Downs, Robert T. (2013) Agardite-(Y), Cu2+6Y(AsO4)3(OH)6·3H2O. Acta Crystallographica Section E Structure Reports Online, 69 (9) doi:10.1107/s1600536813023477 DOI: 10.1107/s1600536813023477
  5. 2020Golubev, Aleksandr M., Brücher, Eva, Schulz, Armin, Kremer, Reinhard K., Glaum, Robert (2020) La- and Lu-agardite – preparation, crystal structure, vibrational and magnetic properties. Zeitschrift für Naturforschung B, 75 (1-2). 191-199 doi:10.1515/znb-2019-0189 DOI: 10.1515/znb-2019-0189
