Plumboagardite

(Pb,REE,Ca)Cu6(AsO4)3(OH)6 · 3H2O
IMA status
  • Approved
IMA symbol
Pagr
IMA approved
2003
Also known as
  • IMA2003-031a
  • Plumboagardiet

Where it forms, where it's found

Geological setting

Oxidized zone of a hydrothermal Pb-Zn vein deposit.

Type locality
Aitern Süd Mine
  1. Aitern
  2. Lörrach
  3. Freiburg Region
  4. Baden-Württemberg
  5. Germany

47.8007°, 7.8986°

15recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Green · pale greenish
Streak
Greenish
Cleavage
None Observed
Density
3.741 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.726 – 1.805
Surface relief
High
Principal indices
nω 1.726 · nε 1.805
Michel-Lévy diagramhighlighted lineδ = 0.0790
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]790 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation790 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
#108
Cell parameters
a = 13.77 Å · c = 5.94 Å
Z
2
Type-locality form

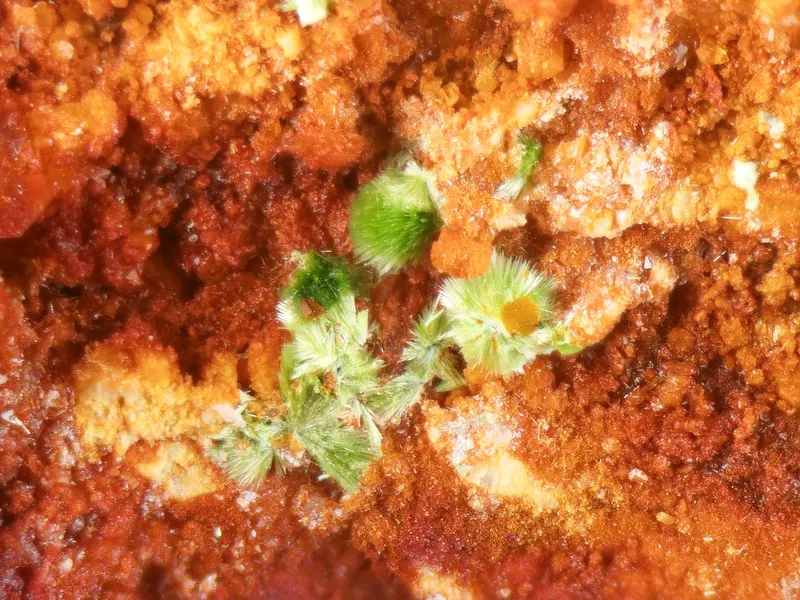

Spherulitic aggregates of radial fibrous structure, composed of acicular crystals elongated on [0001] and reaching 0.05 mm in length.

Chemical composition

Impurities
  • REE
  • Ca
  • Fe
  • P
  • Si

Synonyms

  • IMA2003-031a
  • Plumboagardiet

In other languages

German
IMA 2003-031a · Plumboagardit
Spanish
Plumboagardita
Italian
plumboagardite

Classification

Strunz
10th ed.

8.DL.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DLWith large and medium-sized cations, (OH, etc.):RO4 = 2:1Group
  • 8.DL.15PlumboagarditeSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2005Walenta, Kurt, Theye, Thomas (2005) Plumboagardite, a new mineral of the mixite group from an occurrence in the Southern Black Forest, Germany. Neues Jahrbuch für Mineralogie - Abhandlungen, 181 (3) 219-222 doi:10.1127/0077-7757/2005/0019DOI: 10.1127/0077-7757/2005/0019
  2. 2015(2015) Plumboagardite. Handbook of Mineralogy. Mineralogical Society of America
