Caresite

Fe2+4Al2(OH)12(CO3) · 3H2O
IMA status
  • Approved
IMA symbol
Cre
IMA approved
1992
Also known as
  • Caresiet
  • IMA1992-030

Where it forms, where it's found

Geological setting

Late-stage hydrothermal minerals in miarolitic cavities and in pegmatitic bodies within nepheline syenite.

Type locality
Poudrette quarry (De-Mix quarry
  1. Demix quarry
  2. Uni-Mix quarry
  3. Carrière Mont Saint-Hilaire
  4. MSH)
  5. Mont Saint-Hilaire
  6. La Vallée-du-Richelieu RCM
  7. Montérégie
  8. Québec
  9. Canada

45.5628°, -73.1417°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent
Colour
Green-black
Streak
White
Tenacity
brittle
Cleavage
Perfect

(0001)

Fracture
Irregular/Uneven
Density
2.59 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.57 – 1.599
Surface relief
Moderate
Principal indices
nω 1.599 · nε 1.570
UV response
None
Michel-Lévy diagramhighlighted lineδ = 0.0290
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]290 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation290 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#87
Cell parameters
a = 10.805(3) Å · c = 22.48(3) Å
Unit cell volume
2273 ų
Z
6
Twinning

Twinned by rotation 180 deg around the c axis.

Type-locality form

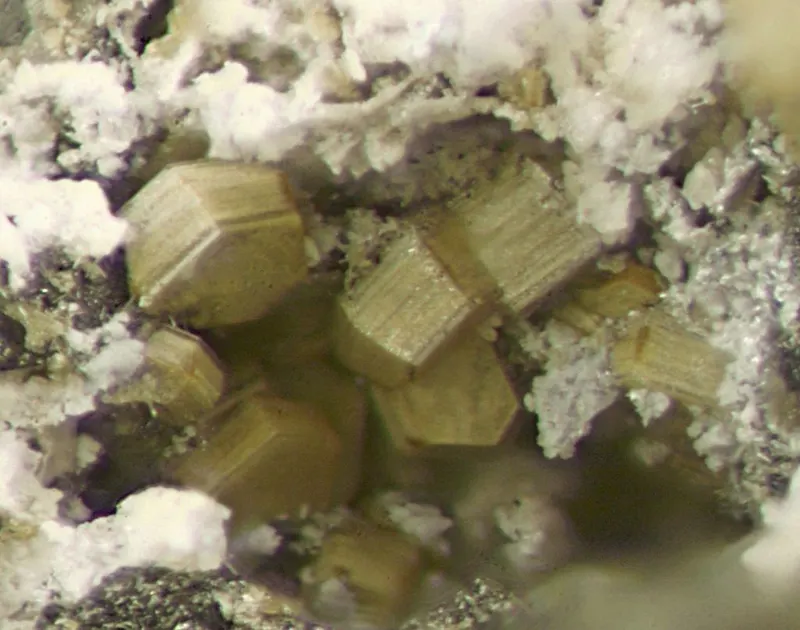

Tabular and pyramidal crystals to 0.5 mm, forming irregular aggregates. Normally coated with a fine-grained smectite or with chamosite.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1815.999287.982
48.36%
26FeIronIron455.845223.380
37.51%
13AlAluminiumAluminium226.98253.964
9.06%
1HHydrogenHydrogen181.00818.144
3.05%
6CCarbonCarbon112.01112.011
2.02%
Total595.481100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Caresiet
  • IMA1992-030

In other languages

German
Caresit · IMA 1992-030
Italian
Caresite
Chinese
水碳铝铁石

Classification

Strunz
10th ed.

5.DA.40

  • 5CarbonatesClass
  • 5.DCarbonates with additional anions, with H2ODivision
  • 5.DAWith medium-sized cationsGroup
  • 5.DA.40CaresiteSpecies
Dana
8th ed.

16b.07.16.03

  • 16bHydrated Carbonates Containing Hydroxyl or HalogenClass
  • 16b.07MiscellaneousType
  • 16b.07.16— unnamed intermediate level —Group
  • 16b.07.16.03CaresiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1997Chao, G. Y., Gault, R. A. (1997) Quintinite-2H, quintinite-3T, charmarite-2H, charmarite-3T and caresite-3T, a new group of carbonate minerals related to the hydrotalcite-manasseite group. The Canadian Mineralogist, 35 (6) 1541-1549
  2. 2012Mills, S. J.; Christy, A. G.; Génin, J.-M. R.; Kameda, T.; Colombo, F. (2012) Nomenclature of the hydrotalcite supergroup: natural layered double hydroxides. Mineralogical Magazine, 76 (5). 1289-1336 doi:10.1180/minmag.2012.076.5.10DOI: 10.1180/minmag.2012.076.5.10
  3. 2022(2022) Caresite. Handbook of Mineralogy. Mineralogical Society of America
