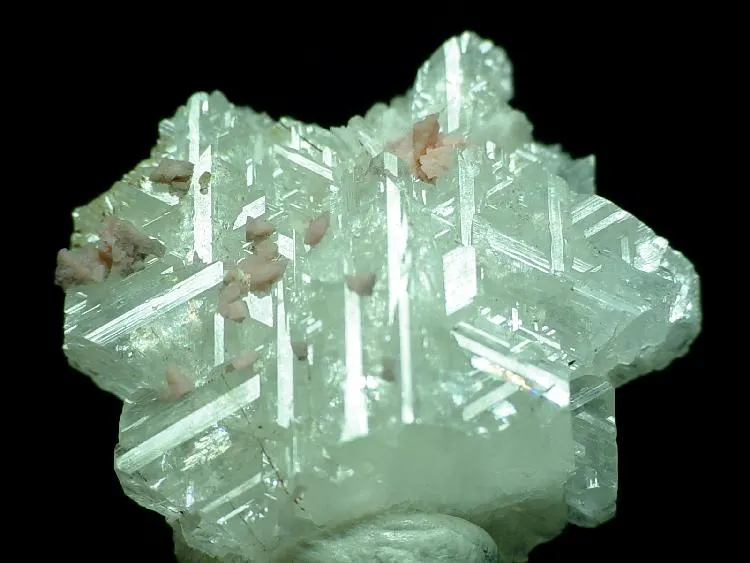

Epididymite

Na2Be2Si6O15 · H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Edd
Discovered
1893
Also known as
  • Epididymiet
  • Epididymita
  • Epidymit
  • +2 more

Where it forms, where it's found

Type locality
Narssârssuk pegmatite
  1. Narsaarsuk Plateau
  2. Igaliku
  3. Kujalleq
  4. Greenland

61.0331°, -45.3778°

63recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
Colourless to white · rarely pink
Streak
White
Tenacity
brittle
Cleavage
Perfect

Perfect on (001), good on (010)

Fracture
Irregular/Uneven · Conchoidal
Density
2.548 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 22°
Refractive index
1.544 – 1.546
Surface relief
Moderate
Principal indices
nα 1.544 · nβ 1.544 · nγ 1.546
Dispersion
weak
Michel-Lévy diagramhighlighted lineδ = 0.0020
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]20 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation20 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#71
Cell parameters
a = 12.7334(4) Å · b = 13.6298(5) Å · c = 7.3467(3) Å
Ratio a:b:c
1 : 1.070 : 0.577
Unit cell volume
1275.04 ų
Z
4
Twinning

Reticulated twins, trillings, pseudohexagonal trillings

Epitaxy

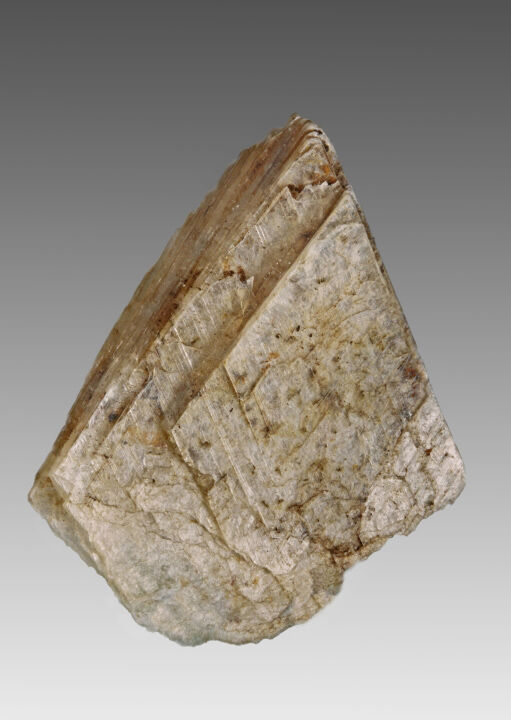

Epitaxial intergrowths of epididymite and eudidymite are common

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1615.999255.984
52.19%
14SiSiliconSilicon628.085168.510
34.35%
11NaSodiumSodium222.99045.980
9.37%
4BeBerylliumBeryllium29.01218.024
3.68%
1HHydrogenHydrogen21.0082.016
0.41%
Total490.514100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • Fe
  • Mg
  • Ca
  • K

Synonyms

  • Epididymiet
  • Epididymita
  • Epidymit
  • Epidymita
  • Epidymite

In other languages

German
Epididymit
Italian
Epididimite · Epididymite
Russian
эпидидимит

Classification

Strunz
10th ed.

9.DG.55

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DGInosilicates with 3-periodic single and multiple chainsGroup
  • 9.DG.55EpididymiteSpecies
Dana
8th ed.

66.03.01.04

  • 66Inosilicates Double-width, Unbranched Chains, (w=2)Class
  • 66.03Amphiboles - Ca-Na subgroupType
  • 66.03.01P=3Group
  • 66.03.01.04EpididymiteSpecies
CIM

14.3.7

  • 14Silicates not Containing AluminumClass
  • 14.3Silicates of BeGroup
  • 14.3.7EpididymiteSpecies

Group, growth & confusion

Often grow together
6 minerals
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1893Flink, Gust. (1893) Om några mineral från Grönland. Geologiska Föreningen i Stockholm Förhandlingar, 15 (4) 195-208 doi:10.1080/11035899309442185DOI: 10.1080/11035899309442185
  2. 1901Flink, G. (1901) Part I: On the Minerals from Narsarsuk on the Firth of Tunugdliarfik in Southern Greenland. Meddelelser om Grønland, 24. 7-180
  3. 1934Ito, T. (1934) The Structure of Epididymite (HNaBeSi3O8). Zeitschrift für Kristallographie - Crystalline Materials, 88 (1) 142-149 doi:10.1524/zkri.1934.88.1.142 DOI: 10.1524/zkri.1934.88.1.142
  4. 1970Robinson, Paul D., Fang, J. H. (1970) The crystal structure of epididymite. American Mineralogist, 55 (9-10) 1541-1549
  5. 1972Fang, J. H., Robinson, Paul D., Ohya, Y. (1972) Redetermination of the crystal structure of eudidymite and its dimorphic relationship to epididylnite. American Mineralogist, 57 (9-10) 1345-1354
