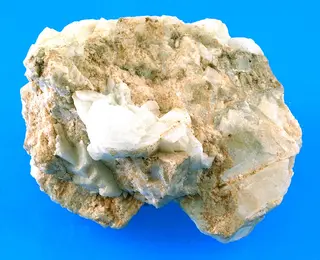

Celsian

Ba(Al2Si2O8)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Cls
Discovered
1895
Also known as
  • Barium-Anorthite (of Sjögren)

Where it forms, where it's found

Geological setting

Amphibolite regional or contact metamorphic rocks rich in barium

Type locality
Jakobsberg Mine
  1. Jakobsberg ore field
  2. Nordmark mining district
  3. Filipstad
  4. Värmland County
  5. Sweden

59.8280°, 14.1072°

134recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106 – 6.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless · white · yellow
Streak
White
Tenacity
brittle
Cleavage
Perfect

Perfect on (001), good on (010), poor on (110)

Density
3.10 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 86 – 90° · 2V calc = 62 – 74°
Refractive index
1.58 – 1.596
Surface relief
Moderate
Principal indices
nα 1.58 – 1.584 · nβ 1.585 – 1.587 · nγ 1.594 – 1.596
Dispersion
none
Michel-Lévy diagramhighlighted lineδ = 0.0130
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]130 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation130 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 8.622(4) Å · b = 13.078(6) Å · c = 14.411(8) Å
Cell angles
β = 115.2 °
Ratio a:b:c
1 : 1.517 : 1.671
Z
8
Morphology

Short prismatic to acicular crystals, commonly massive

Twinning

Simple twins in accordance with the Manebach, Baveno, or Carlsbad laws.

Comment

Space group I2/c (non-standard setting).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
56BaBariumBarium1137.327137.327
36.58%
8OOxygenOxygen815.999127.992
34.09%
14SiSiliconSilicon228.08556.170
14.96%
13AlAluminiumAluminium226.98253.964
14.37%
Total375.453100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Mg
  • Ca
  • Na
  • K
  • F

Synonyms

  • Barium-Anorthite (of Sjögren)

In other languages

French
Celsian · Celsiane
German
Celsian
Spanish
Celsiana
Italian
Celsian · Celsiana
Portuguese
celsiana
Chinese
钡长石
Russian
цельсиан

Classification

Strunz
10th ed.

9.FA.30

  • 9SilicatesClass
  • 9.FTektosilicates without zeolitic H2ODivision
  • 9.FATektosilicates without additional non-tetrahedral anionsGroup
  • 9.FA.30CelsianSpecies
Dana
8th ed.

76.01.01.04

  • 76Tectosilicates Al-si FrameworkClass
  • 76.01Al-Si Framework with Al-Si frameworksType
  • 76.01.01K (Na,Ba) feldsparsGroup
  • 76.01.01.04CelsianSpecies
CIM

16.12.4

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.12Aluminosilicates of Sr, Ba and ZnGroup
  • 16.12.4CelsianSpecies

Group, growth & confusion

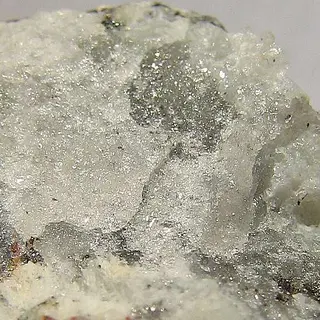

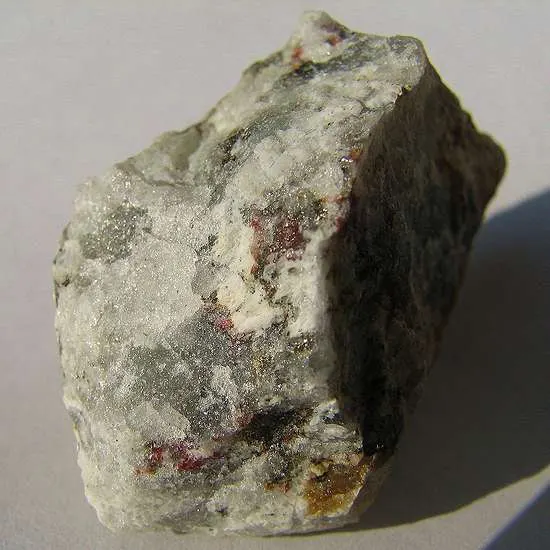

Often grow together
3 minerals
Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1895Sjögren, Hj. (1895) Celsian, en anorthiten motsvarande bariumfältspat från Jakobsberg. Geologiska Föreningen i Stockholm Förhandlingar, 17 (6) 578-582 doi:10.1080/11035899509453948DOI: 10.1080/11035899509453948
  2. 1899Dana, Edward Salisbury (1899) A System of Mineralogy - First Appendix to the Sixth Edition of Dana's System of Mineralogy.
  3. 1942Spencer, L. J. (1942) Barium-felspars (celsian and paracelsian) from Wales. Mineralogical Magazine and Journal of the Mineralogical Society, 26 (178) 231-245 doi:10.1180/minmag.1942.026.178.01 DOI: 10.1180/minmag.1942.026.178.01
  4. 1964Seki, Yôtarô, Kennedy, George C. (1964) Phase relations between cymrite, BaAlSi3O8(OH), and celsian, BaAl2Si2O8. American Mineralogist, 49 (9-10) 1407-1426
  5. 1965Gay, P. (1965) An X-ray powder method for the estimation of (K, Ba) feldspars. Mineralogical Magazine and Journal of the Mineralogical Society, 34 (268). 204-213 doi:10.1180/minmag.1965.034.268.16DOI: 10.1180/minmag.1965.034.268.16
