Correianevesite

Fe2+Mn2+2(PO4)2 · 3H2O
IMA status
  • Approved
IMA symbol
Corr
IMA approved
2013
Also known as
  • Correianevesiet
  • IMA2013-007

Where it forms, where it's found

Geological setting

A phosphate-rich granite pegmatite.

Type locality
Cigana claim
  1. Barra do Cuieté
  2. Conselheiro Pena
  3. Minas Gerais
  4. Brazil

-19.0767°, -41.4956°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Grayish-brown to reddish-brown
Streak
White
Cleavage
Poor/Indistinct

on (010).

Fracture is laminated, uneven across cleavage.

Fracture
Irregular/Uneven
Density
3.25 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 70° · 2V calc = 65.6°
Refractive index
1.661 – 1.703
Surface relief
High
Principal indices
nα 1.661 · nβ 1.673 · nγ 1.703
Michel-Lévy diagramhighlighted lineδ = 0.0420
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]420 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation420 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 9.4887(2) Å · b = 10.1149(2) Å · c = 8.7062(2) Å
Ratio a:b:c
1 : 1.066 : 0.918
Unit cell volume
835.6 ų
Z
4
Morphology

Bipyramidal crystals

Type-locality form

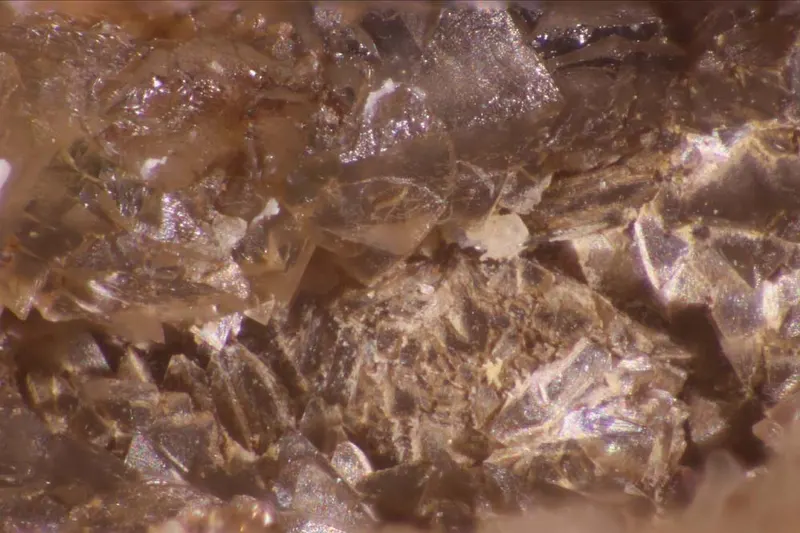

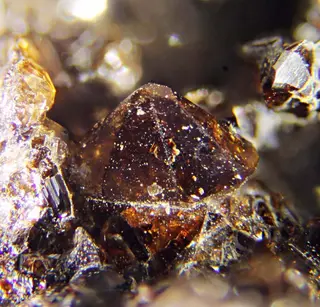

As grayish-brown to reddish-brown transparent bipyramidal crystals up to 4 mm in size.

Comment

Pbna

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1115.999175.989
42.95%
25MnManganeseManganese254.938109.876
26.82%
15PPhosphorusPhosphorus230.97461.948
15.12%
26FeIronIron155.84555.845
13.63%
1HHydrogenHydrogen61.0086.048
1.48%
Total409.706100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Correianevesiet
  • IMA2013-007

In other languages

German
Correianevesit · IMA 2013-007
Italian
correianevesite

Classification

Strunz
10th ed.

8.CC

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CCWith only medium-sized cations, RO4:H2O = 1:1.5Group
  • 8.CCCorreianevesiteSpecies

Group, growth & confusion

In the same group
5 members

Literature, links & citation

Citations
  1. 2013www.mindat.org (2013) http://www.mindat.org/mesg-25-290977.html
  2. 2013Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2013) New minerals and nomenclature modifications approved in 2013. CNMNC Newsletter No 16. Mineralogical Magazine, 77 (6) 2695-2709 doi:10.1180/minmag.2013.077.6.01DOI: 10.1180/minmag.2013.077.6.01
  3. 2014Chukanov, N. V., Scholz, R., Zubkova, N. V., Pekov, I. V., Belakovskiy, D. I., Van, K. V., Lagoeiro, L., Graca, L. M., Krambrock, K., de Oliveira, L. C. A., Filho, L. A. D. M., Chaves, M. L. S. C., Pushcharovsky, D. Y. (2014) Correianevesite, Fe2+Mn2+2(PO4)2·3H2O, a new reddingite-group mineral from the Cigana mine, Conselheiro Pena, Minas Gerais, Brazil. American Mineralogist, 99 (4) 811-816 doi:10.2138/am.2014.4709 DOI: 10.2138/am.2014.4709
  4. 2017(2017) Correianevesite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2021Vignola, Pietro; Demartin, Francesco; Campostrini, Italo; Falster, Alexander U; Simmons, William B; Sprague, Raymond A (2021) Crystal structure of correianevesite from the Emmons pegmatite, Uncle Tom Mountain, Greenwood, Oxford County, Maine. Bulletin de la Société Royale des Sciences de Liège, 90. 125-135
