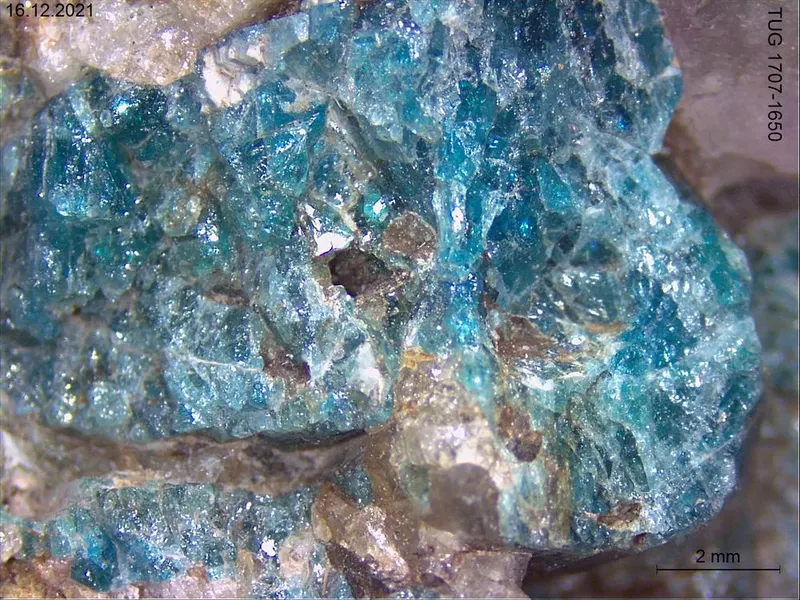

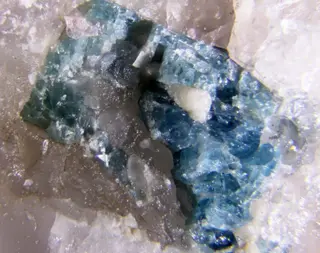

Cyprine

Ca19Cu2+(Al,Mg)12Si18O69(OH)9
IMA status
  • Approved
IMA symbol
Cyp
IMA approved
2015
Also known as
  • Cupreous Idocrase
  • Cyprine (of Berzelius)
  • IMA2015-044

Where it forms, where it's found

Geological setting

An assemblage of Mn- and Ca-bearing minerals, formed as a result of the hydrothermal activity.

Type locality
Wessels Mine
  1. Joe Morolong Local Municipality
  2. John Taolo Gaetsewe District Municipality
  3. Northern Cape
  4. South Africa

-27.1135°, 22.8544°

9recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Blue · bluish green · green · dark red with a lilac hue (type material)

Color on single crystals

Streak
Usually white to pale tints of the body color
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven · Splintery · Hackly · Sub-Conchoidal
Density
3.40 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.732 – 1.744
Surface relief
High
Principal indices
nω 1.744 · nε 1.732
Birefringence
May show anomalous birefringence; the birefringence may also be variably obscured by the body color of the mineral in strongly-colored examples.
Pleochroism
Strong

Ranging from O = dark purple, E = pale red to O = dark reddish brown, E = pale yellowish brown; O>>E.

UV response
Not fluorescent in UV
Michel-Lévy diagramhighlighted lineδ = 0.0120
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]120 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation120 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
P4/n
Cell parameters
a = 15.5652(5) Å · c = 11.7921(4) Å
Unit cell volume
2863.2 ų
Z
2
Morphology

Crystals up to 1 cm. Dominant forms: (100), (110), (001), and (331).

Twinning

No twinning observed in type material.

Type-locality form

As chaotic aggregates (up to 5 cm across) in open cavities or embedded in coarse-grained colourless calcite.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen7815.9991247.922
38.96%
20CaCalciumCalcium1940.078761.482
23.78%
14SiSiliconSilicon1828.085505.530
15.78%
13AlAluminiumAluminium1226.982323.784
10.11%
12MgMagnesiumMagnesium1224.305291.660
9.11%
29CuCopperCopper163.54663.546
1.98%
1HHydrogenHydrogen91.0089.072
0.28%
Total3202.996100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Cupreous Idocrase
  • Cyprine (of Berzelius)
  • IMA2015-044

In other languages

German
Cyprin · IMA 2015-044

Classification

Strunz
10th ed.

9.BG.35

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BGSorosilicates with mixed SiO4 and Si2O7 groups; cations in octahedral [6] and greater coordinationGroup
  • 9.BG.35CyprineSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1820Berzelius, Jöns Jacob (1820) Om Blåsrörets Användande i Kemien och Mineralogien [On the Use of the Blowpipe in Chemistry and Mineralogy]. H. A. Nordström. 272 pp.
  2. 1821Berzelius, Jöns Jakob (1821): Die Anwendung des Löthrohrs in der Chemie und Mineralogie. p. 263.
  3. 1986Fitzgerald, S., Rheingold, A.L., and Leavens, P. B. (1986): Crystal structure of a Cu-bearing vesuvianite. American Mineralogist: 71: 1011-1014.
  4. 2015Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2015) New minerals and nomenclature modifications approved in 2015, CNMNC Newsletter No 27. Mineralogical Magazine, 79 (5). 1223-1230 doi:10.1180/minmag.2015.079.5.16DOI: 10.1180/minmag.2015.079.5.16
  5. 2017Panikorovskii, Taras L., Shilovskikh, Vladimir V., Avdontseva, Evgenia Yu., Zolotarev, Andrey A., Pekov, Igor V., Britvin, Sergey N., Hålenius, Ulf, Krivovichev, Sergey V. (2017) Cyprine, Ca19Cu2+(Al,Mg,Mn)12Si18O69(OH)9, a new vesuvianite-group mineral from the Wessels mine, South Africa. European Journal of Mineralogy, 29 (2) 295-306 doi:10.1127/ejm/2017/0029-2592 DOI: 10.1127/ejm/2017/0029-2592
