Milanriederite

(Ca,REE)19Fe3+Al4(Mg,Al,Fe3+)8Si18O68(OH,O)10
IMA status
  • Approved
IMA symbol
Mlrd
IMA approved
2018
Also known as
  • IMA2018-041
  • Milanriederiet

Where it forms, where it's found

Geological setting

Hydrothermal and metasomatic replacement and fracture-filling of dolostones by polymineralic aggregates.

Type locality
Kombat Mine
  1. Kombat
  2. Otavi Constituency
  3. Otjozondjupa Region
  4. Namibia

-19.7081°, 17.7033°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Dark brownish-red
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
3.53 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.737 – 1.744
Surface relief
High
Principal indices
nω 1.744 · nε 1.737
Pleochroism
Visible

Brownish-pink (O) to nearly colourless (E).

Extinction
Parallel
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0070
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]70 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation70 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
P4/nnc
Cell parameters
a = 15.6578(4) Å · c = 11.8597(5) Å
Z
2
Morphology

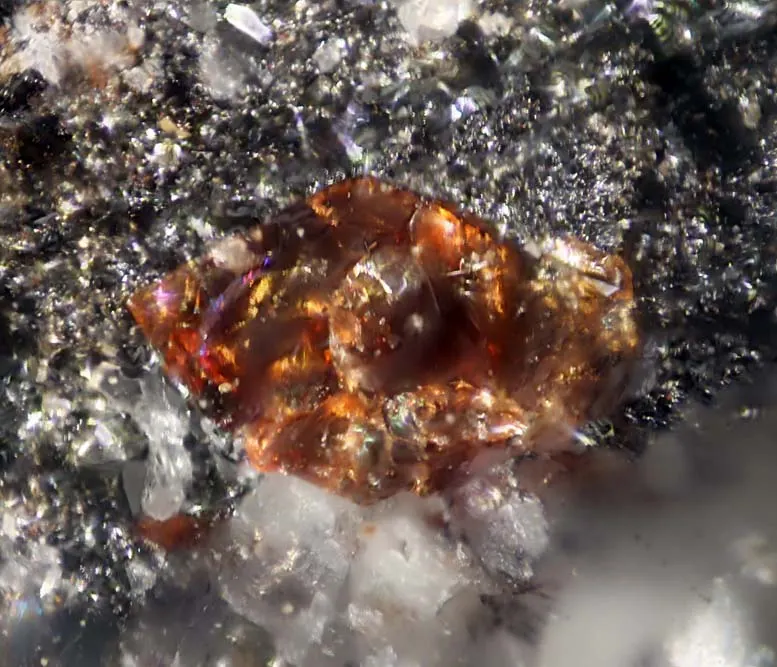

Type material: The major crystal form is (111) and the minor forms (observed on some crystals) are (001), (110), and (100).

Parting
None
Type-locality form

Dipyramidal crystals up to 3 mm across.

Synonyms

  • IMA2018-041
  • Milanriederiet

In other languages

German
IMA 2018-041 · Milanriederit

Classification

Strunz
10th ed.

9.BG.35

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BGSorosilicates with mixed SiO4 and Si2O7 groups; cations in octahedral [6] and greater coordinationGroup
  • 9.BG.35MilanriederiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2018Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2018) CNMNC Newsletter 45, New minerals and nomenclature modifications approved in 2018. Mineralogical Magazine, 82 (5) 1225-1232 doi:10.1180/mgm.2018.160DOI: 10.1180/mgm.2018.160
  2. 2019Chukanov, Nikita V., Panikorovskii, Taras L., Goncharov, Alexey G., Pekov, Igor V., Belakovskiy, Dmitriy I., Britvin, Sergey N., Möckel, Steffen, Vozchikova, Svetlana A. (2019) Milanriederite, (Ca,REE)19Fe3+Al4(Mg,Al,Fe3+)8Si18O68(OH,O)10, a new vesuvianite-group mineral from the Kombat Mine, Namibia. European Journal of Mineralogy, 31 (3) 637-646 doi:10.1127/ejm/2019/0031-2856 DOI: 10.1127/ejm/2019/0031-2856
  3. 2022(2022) Milanriederite. Handbook of Mineralogy. Mineralogical Society of America
