Dresserite

Ba2Al4(CO3)4(OH)8 · 3H2O
IMA status
  • Approved
IMA symbol
Dsr
Discovered
1968
IMA approved
1968
Also known as
  • Dresseriet
  • IMA1968-027

Where it forms, where it's found

Geological setting

Vugs in alkalic sill in limestone.

Type locality
Francon quarry
  1. Montréal
  2. Québec
  3. Canada

45.5679°, -73.6060°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous · Silky
Transparency
Transparent
Colour
White
Streak
White
Cleavage

No cleavage reported.

Density
2.96 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 30 – 40°
Refractive index
1.518 – 1.601
Surface relief
Moderate
Principal indices
nα 1.518 · nγ 1.601
Dispersion
relatively strong
Notes

X = a; Y = b; Z = c

Michel-Lévy diagramhighlighted lineδ = 0.0830
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]830 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation830 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 9.27 Å · b = 16.83 Å · c = 5.63 Å
Ratio a:b:c
1 : 1.816 : 0.607
Z
2
Morphology

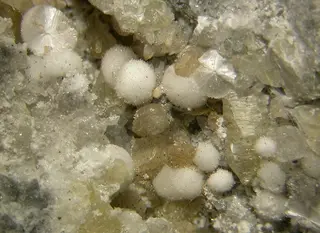

Tapering acicular crystals, typically in divergent spherical and hemispherical aggregates to 3mm.

Type-locality form

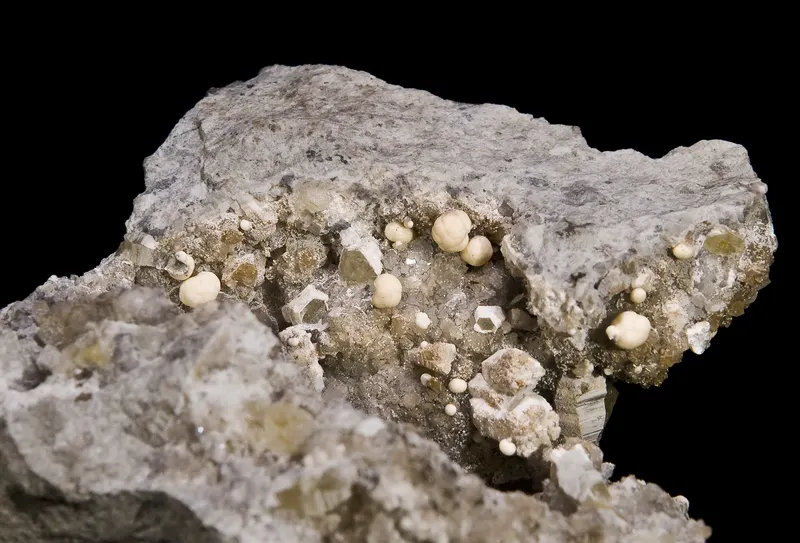

White spherical aggregates averaging about 2 mm in diameter, each made up of tapering fibers elongated parallel to c.

Comment

Space Group: [P bnm] (by analogy with dundasite).

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2315.999367.977
45.28%
56BaBariumBarium2137.327274.654
33.79%
13AlAluminiumAluminium426.982107.928
13.28%
6CCarbonCarbon412.01148.044
5.91%
1HHydrogenHydrogen141.00814.112
1.74%
Total812.715100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Dresseriet
  • IMA1968-027

In other languages

French
Dresserite
German
Dresserit · IMA 1968-027
Italian
Dresserite
Chinese
水碳铝钡石

Classification

Strunz
10th ed.

5.DB.10

  • 5CarbonatesClass
  • 5.DCarbonates with additional anions, with H2ODivision
  • 5.DBWith large and medium-sized cationsGroup
  • 5.DB.10DresseriteSpecies
Dana
8th ed.

16b.02.01.02

  • 16bHydrated Carbonates Containing Hydroxyl or HalogenClass
  • 16b.02AmBn(XO3)pZqxH2O & with (m+n):p = 3:2Type
  • 16b.02.01Dundasite GroupGroup
  • 16b.02.01.02DresseriteSpecies
CIM

11.7.12

  • 11CarbonatesClass
  • 11.7Carbonates of AlGroup
  • 11.7.12DresseriteSpecies

Group, growth & confusion

Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1969Jambor, J. L., Fong, D. G., Sabina, A. P. (1969) Dresserite, the new barium analogue of dundasite. The Canadian Mineralogist, 10 (1) 84-89
  2. 1970Fleischer, M. (1970) New Mineral Names. American Mineralogist, 55 (7-8). 1444-1449
  3. 1977Farrell, D. M. (1977) Infrared investigation of basic double-carbonate hydrate minerals. The Canadian Mineralogist, 15 (3) 408-413
  4. 2005(2005) Dresserite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2006Tarassoff, Peter, Horváth, László, Pfenninger-Horváth, Elsa (2006) Famous mineral localities: The Francon Quarry, Montreal, Quebec, Canada. The Mineralogical Record, 37 (1) 5-60
