Hydrodresserite

BaAl2(CO3)2(OH)4 · 3H2O
IMA status
  • Approved
IMA symbol
Hdrs
Discovered
1976
IMA approved
1976
Also known as
  • Hydrodresseriet
  • Hydrodresserita
  • IMA1976-036

Where it forms, where it's found

Geological setting

Alkalic sill.

Type locality
Francon quarry
  1. Montréal
  2. Québec
  3. Canada

45.5679°, -73.6060°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colorless
Streak
White
Cleavage
Perfect

(010) and (210).

Density
2.80 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 17° · 2V calc = 10°
Refractive index
1.502 – 1.595
Surface relief
Moderate
Principal indices
nα 1.502 · nβ 1.594 · nγ 1.595
Dispersion
relatively strong
Michel-Lévy diagramhighlighted lineδ = 0.0930
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]930 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation930 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 9.7545(5) Å · b = 10.4069(5) Å · c = 5.6322(3) Å
Cell angles
α = 95.695 ° · β = 92.273 ° · γ = 115.643 °
Ratio a:b:c
1 : 1.067 : 0.577
Z
2
Morphology

Crystals are elongate [001], terminated (102), with prominent (010) and narrow (210).

Type-locality form

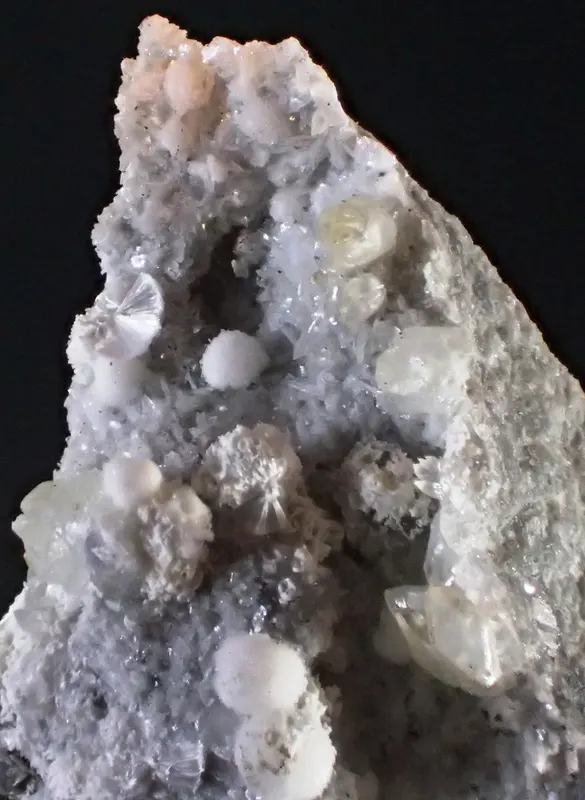

White spheres and hemispheres which average about 2 mm in diameter and consist of radiating fibrous, colorless crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1315.999207.987
47.99%
56BaBariumBarium1137.327137.327
31.69%
13AlAluminiumAluminium226.98253.964
12.45%
6CCarbonCarbon212.01124.022
5.54%
1HHydrogenHydrogen101.00810.080
2.33%
Total433.380100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Hydrodresseriet
  • Hydrodresserita
  • IMA1976-036

In other languages

German
Hydrodresserit · IMA 1976-036
Italian
Hydrodresserite · Idrodresserite

Classification

Strunz
10th ed.

5.DB.15

  • 5CarbonatesClass
  • 5.DCarbonates with additional anions, with H2ODivision
  • 5.DBWith large and medium-sized cationsGroup
  • 5.DB.15HydrodresseriteSpecies
Dana
8th ed.

16b.02.02.01

  • 16bHydrated Carbonates Containing Hydroxyl or HalogenClass
  • 16b.02AmBn(XO3)pZqxH2O & with (m+n):p = 3:2Type
  • 16b.02.02— unnamed intermediate level —Group
  • 16b.02.02.01HydrodresseriteSpecies
CIM

11.7.13

  • 11CarbonatesClass
  • 11.7Carbonates of AlGroup
  • 11.7.13HydrodresseriteSpecies

Group, growth & confusion

Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1977Jambor, J. L., Sabina, A. P., Sturman, B. D. (1977) Hydrodresserite, a new Ba-Al carbonate from a silicocarbonatite sill, Montreal Island, Quebec. The Canadian Mineralogist, 15 (3) 399-404
  2. 1982Szymanski, J. T. (1982) The crystal structure of hydrodresserite, BaAl2(CO3)2(OH)4·3H2O. The Canadian Mineralogist, 20 (2) 253-262
  3. 2005(2005) Hydrodresserite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2006Tarassoff, Peter, Horváth, László, Pfenninger-Horváth, Elsa (2006) Famous mineral localities: The Francon Quarry, Montreal, Quebec, Canada. The Mineralogical Record, 37 (1) 5-60
