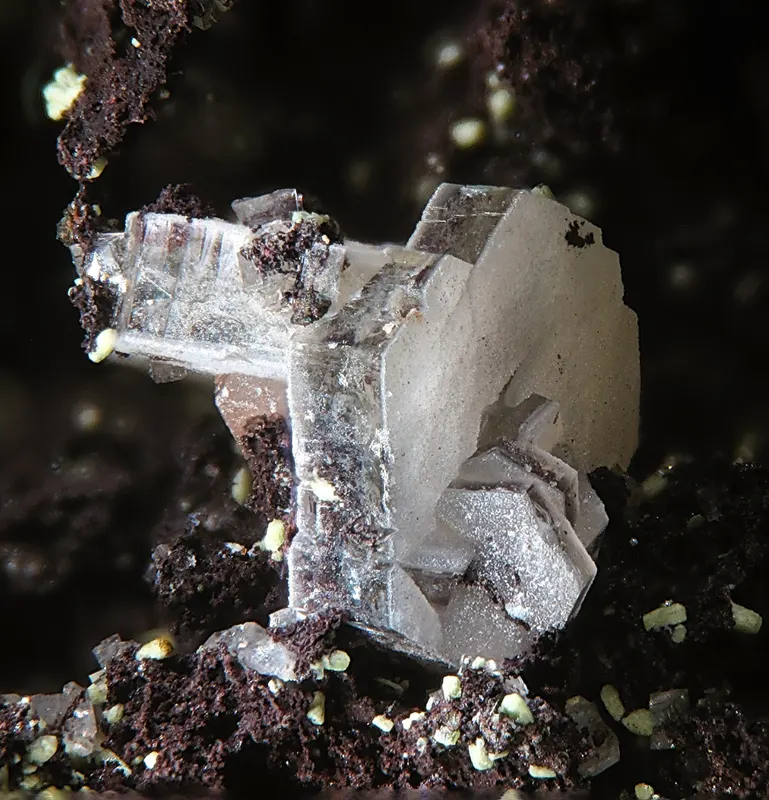

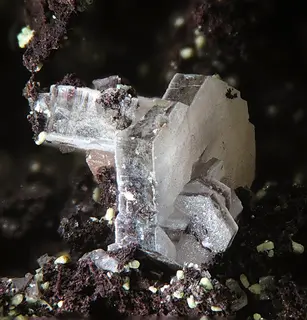

Hedyphane

Ca2Pb3(AsO4)3Cl
IMA status
  • Approved
  • Grandfathered
IMA symbol
Hdp
Discovered
1830
Also known as
  • Hedyphaan
  • Hedyphanit
  • Hedyphanite
  • +2 more

Where it forms, where it's found

Geological setting

Metamorphosed manganese deposit.

Metamorphosed stratiform zinc orebody (Franklin).

Type locality
Långban Mine
  1. Långban Ore District
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8554°, 14.2648°

53recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
White · yellowish white · buff · bluish · colourless in transmitted light.
Tenacity
brittle
Cleavage

On (1011).

Fracture
Sub-Conchoidal
Density
5.82 g/cm³

Optical

Optical type
Uniaxial (+/-)
Refractive index
1.948 – 2.03
Surface relief
Very high
Principal indices
nω 1.948 – 2.01 · nε 1.958 – 2.03
UV response
LW UV ligt: Non fluorescent SW UV light: faint orange
Michel-Lévy diagramhighlighted lineδ = 0.0150
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]150 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation150 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
#126
Cell parameters
a = 10.14 Å · c = 7.185 Å
Unit cell volume
639.78 ų
Z
2
Morphology

Crystals prismatic [0001]; also pyramidal to thick tabular (0001). Massive.

Type-locality form

As finger thick fission filling in garnet-pyroxene matrix.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead3207.200621.600
53.87%
33AsArsenicArsenic374.922224.766
19.48%
8OOxygenOxygen1215.999191.988
16.64%
20CaCalciumCalcium240.07880.156
6.94%
17ClChlorineChlorine135.45035.450
3.07%
Total1153.960100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Hedyphaan
  • Hedyphanit
  • Hedyphanite
  • Pleonectit
  • Pleonectite

In other languages

French
Hedyphane
German
Hedyphan · Pleonectit
Spanish
Hedifana
Italian
Hedyphane

Classification

Strunz
10th ed.

8.BN.05

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BNWith only large cations, (OH, etc.):RO4 = 0.33:1Group
  • 8.BN.05HedyphaneSpecies
Dana
8th ed.

41.08.02.01

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.08A5(XO4)3ZqType
  • 41.08.02— unnamed intermediate level —Group
  • 41.08.02.01HedyphaneSpecies
CIM

22.2.17

  • 22Phosphates, Arsenates or Vanadates with other AnionsClass
  • 22.2Phosphates, arsenates or vanadates with chlorideGroup
  • 22.2.17HedyphaneSpecies

Group, growth & confusion

Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1830Breithaupt, [J.F.] August (1830) Bestimmung neuer mineral-specien, hedyphan. Journal für Chemie und Physik, 308-316
  2. 1831Kersten (1831) Journal of Chemical Physics, Lancaster, PA: 62: 22 (as recalculated by Rammelsberg (1875): 337).
  3. 1831Michaelson (1831) Journal of Chemical Physics, Lancaster, PA: 62: 22.
  4. 1879Lundström (1879) Geologiska Föreningens i Stockholm. Förhandlinger, Stockholm: 4: 266.
  5. 1881Des Cloizeaux, Alfred (1881) Étude de différents minéraux. Bulletin de Minéralogie, 4 (4) 89-96 doi:10.3406/bulmi.1881.1636DOI: 10.3406/bulmi.1881.1636
