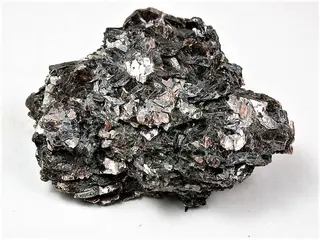

Hendricksite

KZn3(Si3Al)O10(OH)2
IMA status
  • Approved
IMA symbol
Hds
Discovered
1966
Also known as
  • Hendricksiet
  • Manganophyllite (of Franklin, NJ)
  • Zinc Mica

Where it forms, where it's found

Geological setting

Irregular lens- and sheet-like skarn bodies within metamorphosed stratiform Zn deposit,

Type locality
Buckwheat pit
  1. Franklin Mine
  2. Franklin
  3. Sussex County
  4. New Jersey
  5. USA

41.1147°, -74.5872°

10recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Coppery brown · bronze-brown · dark reddish brown to reddish black
Cleavage
Perfect

On (001)

Density
2.86 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 2 – 8° · 2V calc = 20 – 44°
Refractive index
1.598 – 1.697
Surface relief
Moderate
Principal indices
nα 1.598 – 1.624 · nβ 1.658 – 1.686 · nγ 1.66 – 1.697
Pleochroism

X = pale yellow, Y = Z = light chestnut-brown.

Dispersion
r < v, slight
Extinction
X = b; Z ∧ c = 36°.
Notes

Absorption: Z = Y > X.

Michel-Lévy diagramhighlighted lineδ = 0.0675
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]675 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation675 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 5.34-5.37 Å · b = 9.25-9.32 Å · c = 10.24-10.3 Å
Cell angles
β = 99-100.07 °
Type-locality form

Interlocking aggregates and anhedral plates, to over 30 cm, commonly bent or deformed in differrent way; rare euhedral crystals, up to 14 cm of mechanical deformation.

Comment

Known polytypes include 1M, 2M1, and 3A

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
30ZnZincZinc365.380196.140
36.29%
8OOxygenOxygen1215.999191.988
35.52%
14SiSiliconSilicon328.08584.255
15.59%
19KPotassiumPotassium139.09839.098
7.24%
13AlAluminiumAluminium126.98226.982
4.99%
1HHydrogenHydrogen21.0082.016
0.37%
Total540.479100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Fe
  • Ca
  • Ba
  • Li
  • Na
  • F

Synonyms

  • Hendricksiet
  • Manganophyllite (of Franklin, NJ)
  • Zinc Mica

In other languages

German
Hendricksit · IMA 1965-027
Italian
Hendricksite
Chinese
锌云母

Classification

Strunz
10th ed.

9.EC.20

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.ECPhyllosilicates with mica sheets, composed of tetrahedral and octahedral netsGroup
  • 9.EC.20HendricksiteSpecies
Dana
8th ed.

71.02.2b.06

  • 71Phyllosilicates Sheets of Six-membered RingsClass
  • 71.02Sheets of 6-membered rings with 2:1 layersType
  • 71.02.2b— unnamed intermediate level —Group
  • 71.02.2b.06HendricksiteSpecies
CIM

16.12.19

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.12Aluminosilicates of Sr, Ba and ZnGroup
  • 16.12.19HendricksiteSpecies

Group, growth & confusion

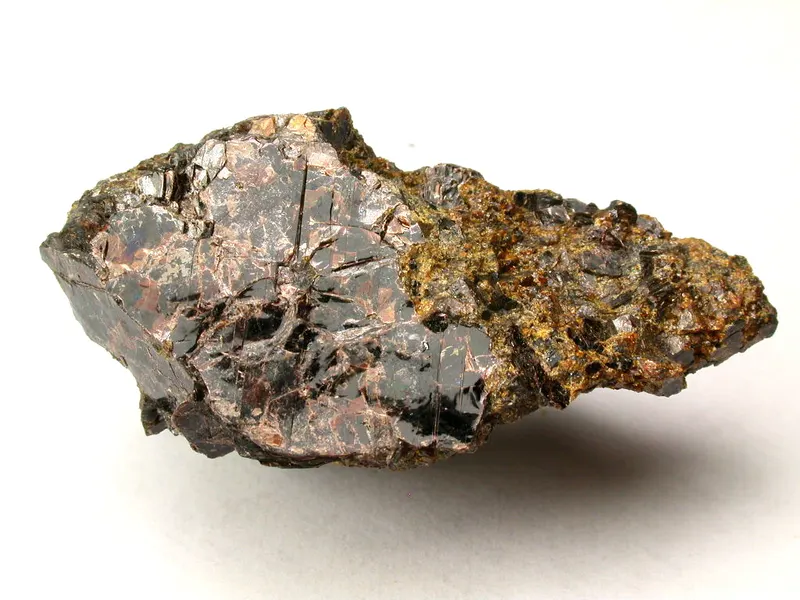

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1966Frondel, Clifford, Ito, Jun (1966) Hendricksite, a new species of mica. American Mineralogist, 51 (7) 1107-1123
  2. 1966Evans, B.W., Strens, R.G.J. (1966) Zinc mica from Franklin Furnace, New Jersey. Nature: 211: 619.
  3. 1969Fleischer, Michael (1969) New Mineral Names. American Mineralogist, 54 (1-2) 326-330
  4. 1985Robert, J.-L., Gaspérin, M. (1985) Crystal structure refinement of hendricksite, a Zn- and Mn-rich trioctahedral potassium mica: a contribution to the crystal chemistry of zinc-bearing minerals. Tschermaks Mineralogische und Petrographische Mitteilungen: 34: 1-14.
  5. 1989Tlili, A., Smith, D. C., Beny, J.-M., Boyer, H. (1989) A Raman microprobe study of natural micas. Mineralogical Magazine, 53 (370) 165-179 doi:10.1180/minmag.1989.053.370.04 DOI: 10.1180/minmag.1989.053.370.04
