Preiswerkite

NaAlMg2(Si2Al2)O10(OH)2
IMA status
  • Approved
IMA symbol
Pwk
Discovered
1980
Also known as
  • Preiswerkiet

Where it forms, where it's found

Geological setting

rodingite dike

Type locality
Geisspfad pass
  1. Geisspfad area
  2. Binn
  3. Goms
  4. Valais
  5. Switzerland

46.3465°, 8.2563°

14recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Pale green to colourless
Cleavage
Perfect

(001)

Density
2.96 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 5 – 7° · 2V calc = 14°
Refractive index
1.56 – 1.615
Surface relief
Moderate
Principal indices
nα 1.560 · nβ 1.614 · nγ 1.615
Dispersion
r < v moderate
Michel-Lévy diagramhighlighted lineδ = 0.0550
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]550 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation550 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 5.228(7) Å · b = 9.049(10) Å · c = 9.819(12) Å
Cell angles
β = 100.41 °
Ratio a:b:c
1 : 1.731 : 1.878
Z
2
Twinning

Common about [310]

Type-locality form

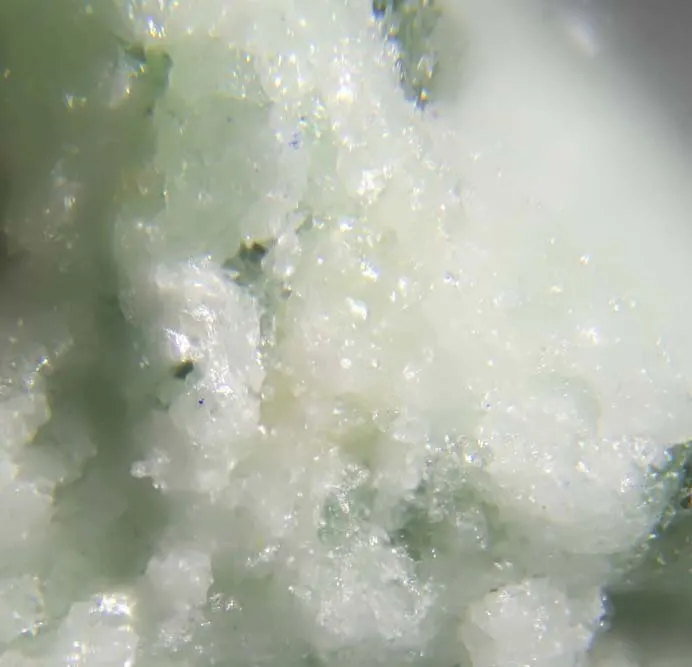

Crystals are platy, to 1 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1215.999191.988
47.67%
13AlAluminiumAluminium326.98280.946
20.10%
14SiSiliconSilicon228.08556.170
13.95%
12MgMagnesiumMagnesium224.30548.610
12.07%
11NaSodiumSodium122.99022.990
5.71%
1HHydrogenHydrogen21.0082.016
0.50%
Total402.720100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Ca
  • K
  • H2O

Synonyms

  • Preiswerkiet

In other languages

German
IMA 1979-008 · Preiswerkit
Italian
Preiswerkite

Classification

Strunz
10th ed.

9.EC.20

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.ECPhyllosilicates with mica sheets, composed of tetrahedral and octahedral netsGroup
  • 9.EC.20PreiswerkiteSpecies
Dana
8th ed.

71.02.2b.15

  • 71Phyllosilicates Sheets of Six-membered RingsClass
  • 71.02Sheets of 6-membered rings with 2:1 layersType
  • 71.02.2b— unnamed intermediate level —Group
  • 71.02.2b.15PreiswerkiteSpecies
CIM

16.8.1

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.8Aluminosilicates of Mg and alkalisGroup
  • 16.8.1PreiswerkiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1980Keusen, H. R., Peters, Tj. (1980) Preiswerkite, an Al-rich trioctahedral sodium mica from the Geisspfad ultramafic complex (Penninic Alps) American Mineralogist, 65 (11-12) 1134-1137
  2. 1981Holdaway, M.J. (1981) ERRATA. American Mineralogist, 66 (11-12). 1281
  3. 1989Tlili, A., Smith, D. C., Beny, J.-M., Boyer, H. (1989) A Raman microprobe study of natural micas. Mineralogical Magazine, 53 (370) 165-179 doi:10.1180/minmag.1989.053.370.04 DOI: 10.1180/minmag.1989.053.370.04
  4. 1993Oberti, Roberta, Ungaretti, Luciano, Tlili, Ali, Smith, David C., Robert, Jean-louis (1993) The crystal structure of preiswerkite. American Mineralogist, 78 (11-12) 1290-1298
  5. 1998Rieder, M., Cavazzini, G., D’Yakonov, Y.S., Frank-Kamenetskii, V.A., Gottardt, G., Guggenheim, S., Koval, P.V., Muller, G., Neiva, A.M.R., Radoslovich, E.W., Robert, J.L., Sassi, F.P., Takeda, H., Weiss, Z., Wones, D.R. (1998) Nomenclature of the micas. The Canadian Mineralogist, 36 (3) 905-912
