Manandonite

Li2Al4(Si2AlB)O10(OH)8
IMA status
  • Approved
  • Grandfathered
IMA symbol
Mnd
Discovered
1912
Also known as
  • Manandoniet

Where it forms, where it's found

Geological setting

A complex type LCT pegmatite hosted in a metadolomite.

Type locality
Antandrokomby pegmatite
  1. Manandona Valley
  2. Sahatsiho Ambohimanjaka
  3. Ambositra District
  4. Amoron'i Mania
  5. Madagascar

-20.2402°, 47.0220°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5 – 3.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Crystals - white · globules - dull yellow
Streak
White
Cleavage
Perfect

(001)

Density
2.76 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 10 – 15°
Refractive index
1.604 – 1.61
Surface relief
Moderate
Principal indices
nα 1.604 · nβ 1.604 · nγ 1.61
Dispersion
r < v weak
Notes

Pseudo-uniaxial. Z perpendicular to (001)

Michel-Lévy diagramhighlighted lineδ = 0.0060
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]60 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation60 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#39
Cell parameters
a = 5.057(4) Å · b = 8.765(7) Å · c = 13.769(9) Å
Ratio a:b:c
1 : 1.733 : 2.723
Z
2
Morphology

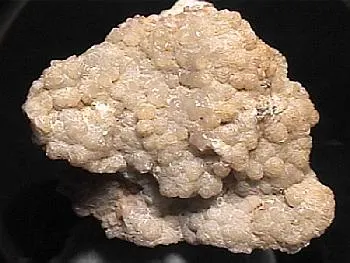

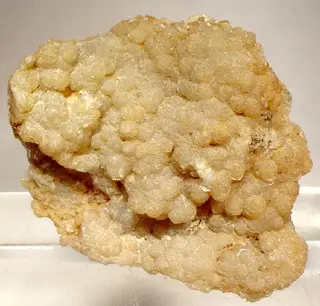

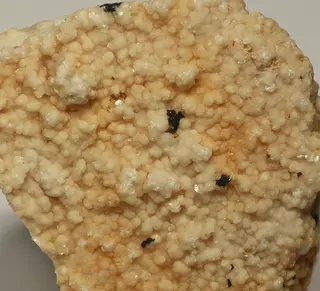

Micaceous pseudohexagonal plates, fanlike lamellar aggregates, or as globules.

Twinning

Commonly twinned around [001] prducing pseudohexagonal crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1815.999287.982
56.27%
13AlAluminiumAluminium526.982134.910
26.36%
14SiSiliconSilicon228.08556.170
10.97%
3LiLithiumLithium26.94013.880
2.71%
5BBoronBoron110.81010.810
2.11%
1HHydrogenHydrogen81.0088.064
1.58%
Total511.816100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Mn
  • Mg
  • Ca
  • Na
  • K
  • H20

Synonyms

  • Manandoniet

In other languages

French
Manandonite
German
Manandonit
Spanish
Manandonita
Italian
Manandonite

Classification

Strunz
10th ed.

9.ED.15

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EDPhyllosilicates with kaolinite layers composed of tetrahedral and octahedral netsGroup
  • 9.ED.15ManandoniteSpecies
Dana
8th ed.

71.01.2c.06

  • 71Phyllosilicates Sheets of Six-membered RingsClass
  • 71.01Sheets of 6-membered rings with 1:1 layersType
  • 71.01.2c— unnamed intermediate level —Group
  • 71.01.2c.06ManandoniteSpecies
CIM

17.5.1

  • 17Silicates Containing other AnionsClass
  • 17.5BorosilicatesGroup
  • 17.5.1ManandoniteSpecies

Group, growth & confusion

In the same group
2 members
Often grow together
2 minerals

Literature, links & citation

Citations
  1. 1912Lacroix, Alfred (1912) Sur une nouvelle espèce minérale (manandonite) des pegmatites de Madagascar. Bulletin de Minéralogie, 35 (4) 223-226 doi:10.3406/bulmi.1912.3519DOI: 10.3406/bulmi.1912.3519
  2. 1913Spencer, L. J. (1913) A (sixth) list of new mineral names. Mineralogical Magazine and Journal of the Mineralogical Society, 16 (77) 352-378 doi:10.1180/minmag.1913.016.77.09 DOI: 10.1180/minmag.1913.016.77.09
  3. 1915Lacroix, Alfred (1915) Manandonite et cookéite. Bulletin de Minéralogie, 38 (4) 142-146 doi:10.3406/bulmi.1915.3618DOI: 10.3406/bulmi.1915.3618
  4. 1989Ranorosoa, Nadine, Fontan, Francois, Fransolet, André-Mathieu (1989) Rediscovery of manandonite in the Sahatany Valley, Madagascar. European Journal of Mineralogy, 1 (5) 633-638 doi:10.1127/ejm/1/5/0633DOI: 10.1127/ejm/1/5/0633
  5. 1990Jambor, John L.; Puziewicz, Jacek (1990) New Mineral Names. American Mineralogist, 75 (9-10). 1209-1216
