Maxwellite

NaFe3+(AsO4)F
IMA status
  • Approved
IMA symbol
Max
Discovered
1987
IMA approved
1987
Also known as
  • IMA1987-044
  • Maxwelliet

Where it forms, where it's found

Geological setting

Formed as a rarity in miarolitic cavities in rhyolite adjacent to high-temperature veins in a hydrothermal tin deposit.

Type locality
Squaw Creek Mine
  1. Taylor Creek Mining District
  2. Catron County
  3. New Mexico
  4. USA

33.4825°, -107.9614°

2recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789105 – 5.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Red
Streak
Pale red-orange to red-orange
Tenacity
brittle
Cleavage
Distinct/Good

(110)

Fracture
Irregular/Uneven
Density
3.90 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 86 – 89° · 2V calc = 90°
Refractive index
1.748 – 1.798
Surface relief
High
Principal indices
nα 1.748 · nβ 1.772 · nγ 1.798
Birefringence
0.050
Pleochroism

X=Y= medium yellow-orange; Z= dark orange-red.

Dispersion
r > v strong
UV response
Not fluorescent in UV.
Michel-Lévy diagramhighlighted lineδ = 0.0500
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]500 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation500 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#13
Cell parameters
a = 7.16 Å · b = 8.78 Å · c = 6.68 Å
Cell angles
β = 114.58 °
Ratio a:b:c
1 : 1.226 : 0.933
Z
4
Morphology

Slightly elongated to blocky crystals. Forms on type material: (013), (526), (526), (011).

Type-locality form

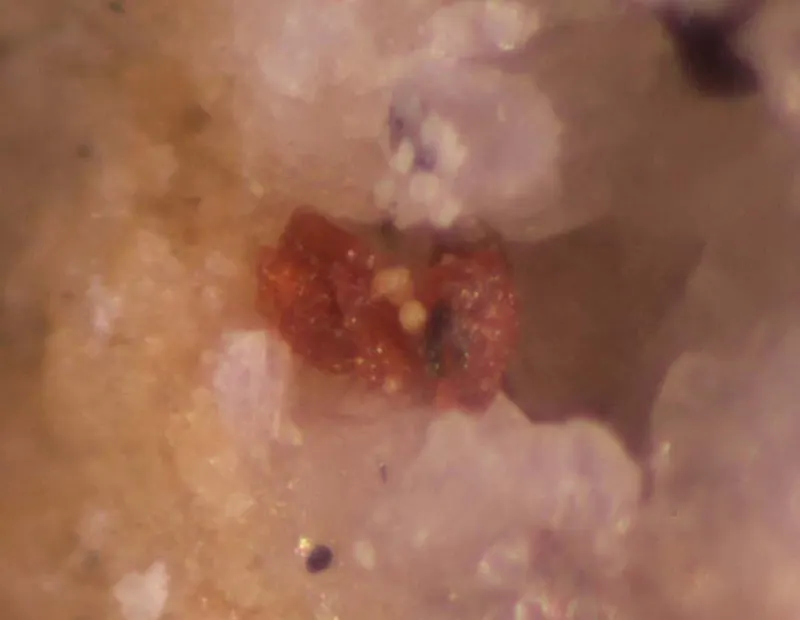

Red aggregates to 3 mm and as blocky to short prismatic euhedral to subhedral crystals up to 1 mm long.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
33AsArsenicArsenic174.92274.922
31.65%
8OOxygenOxygen415.99963.996
27.03%
26FeIronIron155.84555.845
23.59%
11NaSodiumSodium122.99022.990
9.71%
9FFluorineFluorine118.99818.998
8.02%
Total236.751100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1987-044
  • Maxwelliet

In other languages

German
IMA 1987-044 · Maxwellit
Italian
Maxwellite
Portuguese
IMA1987-044 · Maxwellita

Classification

Strunz
10th ed.

8.BH.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BHWith medium-sized and large cations, (OH,etc.):RO4 = 1:1Group
  • 8.BH.10MaxwelliteSpecies
Dana
8th ed.

41.05.05.03

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.05(AB)2(XO4)ZqType
  • 41.05.05Lacroixite GroupGroup
  • 41.05.05.03MaxwelliteSpecies
CIM

22.1.21

  • 22Phosphates, Arsenates or Vanadates with other AnionsClass
  • 22.1Phosphates, arsenates or vanadates with fluorideGroup
  • 22.1.21MaxwelliteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1991Foord, E.E., Hlava, P.F., Fitzpatrick, J.J., Erd, R.C., and Hinton, R.W. (1991) Maxwellite and squawcreekite, two new minerals from the Black Range tin district, Catron County, New Mexico, U.S.A. Neues Jahrbuch für Mineralogie, Monatshefte, 363–384.
  2. 1992Jambor, L., Vanko, David A. (1992) New Mineral Names. American Mineralogist, 77 (3-4) 446-452
  3. 1995Cooper, M.A., Hawthorne, F.C. (1995) The crystal structure of maxwellite. Neues Jahrbuch für Mineralogie, Monatshefte, 97–104.
  4. 1997Mandarino, Joseph A. (1997) New Minerals 1990-1994. The Mineralogical Record Inc., Tuscon, Arizona. 220pp.
  5. 2005(2005) Maxwellite. Handbook of Mineralogy. Mineralogical Society of America
