Durangite

NaAl(AsO4)F
IMA status
  • Approved
  • Grandfathered
IMA symbol
Dur
Discovered
1869
Also known as
  • Durangiet

Where it forms, where it's found

Type locality
Barranca Mine
  1. Coneto de Comonfort
  2. Coneto de Comonfort Municipality
  3. Durango
  4. Mexico

24.9833°, -104.7667°

8recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Light to dark orange-red · red · green · orange-yellow in artificial light.

Green colour exhibited by artificial material.

Streak
Cream-yellow
Tenacity
brittle
Cleavage
Distinct/Good

On (110), distinct.

Fracture
Irregular/Uneven
Density
3.94 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 45° · 2V calc = 56°
Refractive index
1.634 – 1.685
Surface relief
High
Principal indices
nα 1.634 · nβ 1.673 · nγ 1.685
Pleochroism
Visible

X = ^c -25° = Orange-yellow Y = Pale orange-yellow Z = b = Nearly colourless

Dispersion
strong
Michel-Lévy diagramhighlighted lineδ = 0.0510
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]510 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation510 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 6.5789(5) Å · b = 8.5071(6) Å · c = 7.0212(5) Å
Cell angles
β = 115.447(4) °
Ratio a:b:c
1 : 1.293 : 1.067
Unit cell volume
354.83 ų
Z
4
Morphology

Crystal habit is oblique pyramidal with (111) and (110) dominant. Faces commonly dull and rough. Artificial crystals are prismatic [101], and rarely tabular.

Twinning

On (001) common as interopenetration twins (artificial crystals).

Type-locality form

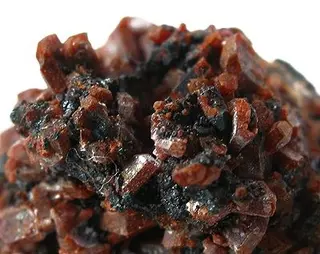

Rhombic orange-red crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
33AsArsenicArsenic174.92274.922
36.04%
8OOxygenOxygen415.99963.996
30.78%
13AlAluminiumAluminium126.98226.982
12.98%
11NaSodiumSodium122.99022.990
11.06%
9FFluorineFluorine118.99818.998
9.14%
Total207.888100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Durangiet

In other languages

French
Durangite
German
Durangit
Spanish
Durangita
Italian
Durangite

Classification

Strunz
10th ed.

8.BH.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BHWith medium-sized and large cations, (OH,etc.):RO4 = 1:1Group
  • 8.BH.10DurangiteSpecies
Dana
8th ed.

41.05.05.02

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.05(AB)2(XO4)ZqType
  • 41.05.05Lacroixite GroupGroup
  • 41.05.05.02DurangiteSpecies
CIM

22.1.31

  • 22Phosphates, Arsenates or Vanadates with other AnionsClass
  • 22.1Phosphates, arsenates or vanadates with fluorideGroup
  • 22.1.31DurangiteSpecies

Group, growth & confusion

Often grow together
1 mineral
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1869Brush G J (1869) On durangite, a fluo-arsenate from Durango in Mexico. American Journal of Science and Arts 98, 179-182
  2. 1875Des Cloizeaux (1875) Annales de chimie et de physique, Paris: 4: 401.
  3. 1876Hawes analysis in: Brush (1876) American Journal of Science: 11: 464.
  4. 1892Dana, Edward Salisbury; Dana, James Dwight (1892) A System of Mineralogy (6th ed.). John Wiley & Sons, Inc.
  5. 1916(1916) Atlas Der Krystallformen Vol. 3 - Text - Band III - Danalith-Feldspat-Gruppe. Carl Winters Universitätsbuchhandlung, Heidelberg.
