Osumilite-(Mg)

KMg2Al3(Al2Si10)O30
IMA status
  • Approved
IMA symbol
Osm-Mg
IMA approved
2011
Also known as
  • IMA2011-083
  • Osumiliet-(Mg)
  • Osumilit-(Mg)

Where it forms, where it's found

Geological setting

In cavities in basaltic volcanic glasses at their contact with thermally metamorphosed xenoliths of pelitic rocks.

Type locality
Caspar quarry
  1. Ettringen
  2. Vordereifel
  3. Mayen-Koblenz
  4. Rhineland-Palatinate
  5. Germany

50.3525°, 7.2335°

36recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 6.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Brown · blue
Streak
White
Tenacity
brittle
Cleavage
None Observed
Density
2.59 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.5406 – 1.543
Surface relief
Moderate
Principal indices
nω 1.5406 · nε 1.543
Pleochroism
Weak

ε = colorless to ω = light blue.

Notes

Type description gives: ω = 1.539, ε = 1.547.

Michel-Lévy diagramhighlighted lineδ = 0.0024
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]24 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation24 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
#123
Cell parameters
a = 10.0959(9) Å · c = 14.3282(2) Å
Z
2
Morphology

Type material: Common crystal faces are (100) and (001) with rare (101) and (110).

Type-locality form

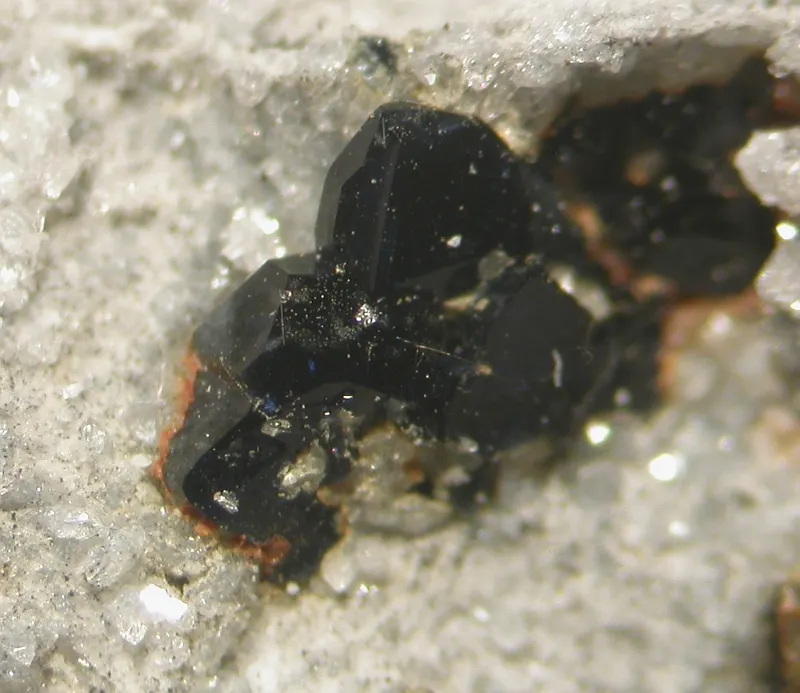

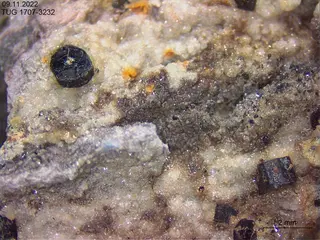

Blue to brown transparent vitreous short prismatic or thick tabular hexagonal crystals up to 0.5 × 1 mm in size.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3015.999479.970
48.80%
14SiSiliconSilicon1028.085280.850
28.56%
13AlAluminiumAluminium526.982134.910
13.72%
12MgMagnesiumMagnesium224.30548.610
4.94%
19KPotassiumPotassium139.09839.098
3.98%
Total983.438100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2011-083
  • Osumiliet-(Mg)
  • Osumilit-(Mg)

In other languages

German
IMA 2011-083 · Osumilith- · Osumilith-(Mg)
Italian
Osumilite- · Osumilite-(Mg)

Classification

Strunz
10th ed.

9.CM.05

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CM[Si6O18]12- 6-membered double rings (sechser-Doppelringe)Group
  • 9.CM.05Osumilite-(Mg)Species
CIM

16.24.16

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.24Aluminosilicates of Fe, Mg, Ca and alkalisGroup
  • 16.24.16Osumilite-(Mg)Species

Group, growth & confusion

Literature, links & citation

Citations
  1. 1953Miyashiro, A (1953) Osumilite, a New Mineral, and Cordierite in Volcanic Rocks. Proceedings of the Japan Academy, 29 (7) 321-323 doi:10.2183/pjab1945.29.321DOI: 10.2183/pjab1945.29.321
  2. 1956Miyashiro, Akiho (1956) Osumilite, a new silicate mineral and its crystal structure. American Mineralogist, 41 (1-2) 104-116
  3. 1969Brown, G. E., Gibbs, G. V. (1969) Refinement of the crystal structure of osumilite. American Mineralogist, 54 (1-2) 101-116
  4. 1970Olsen, Edward, Bunch, T. E. (1970) Compositions of natural osumilites. American Mineralogist, 55 (5-6) 875-879
  5. 1973Chinner, G. A., Dixon, P. D. (1973) Irish osumilite. Mineralogical Magazine, 39 (302) 189-192 doi:10.1180/minmag.1973.039.302.06 DOI: 10.1180/minmag.1973.039.302.06
