Oyonite

Ag3Mn2Pb4Sb7As4S24
IMA status
  • Approved
IMA symbol
Oyo
IMA approved
2018
Also known as
  • IMA2018-002
  • Oyoniet

Where it forms, where it's found

Geological setting

Hydrothermal epigenetic deposit.

Type locality
Uchucchacua Mine
  1. Uchucchacua area
  2. Oyón District
  3. Oyón Province
  4. Lima
  5. Peru

-10.6231°, -76.6883°

3recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103 – 3.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Black
Streak
black
Tenacity
brittle
Density
5.237 g/cm³

Optical

Pleochroism
Weak

Dark grey to a dark green

Bireflectance
Weakly to moderately
Internal reflections
None
Tropism
Anisotropic
Reflectance R%
(33.9,40.2) 471.1, (32.5,38.9) 548.3, (31.6,38.0) 586.6, (29.8,36.5) 652.3
Reflected-light panel
31.9 %anisotropic · dual curve
Specimen sRGB 200, 143, 81
White reference100 % reflector under same lamp
R₁ R₂
Mode
Bireflectance
Weakly to moderately
Internal reflections
None

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 19.1806(18) Å · b = 12.7755(14) Å · c = 8.1789(10) Å
Cell angles
β = 90.471(1) °
Ratio a:b:c
1 : 0.666 : 0.426
Unit cell volume
2004.1 ų
Z
2
Morphology

Subhedral to anhedral crystals, up to 100 μm in length.

Type-locality form

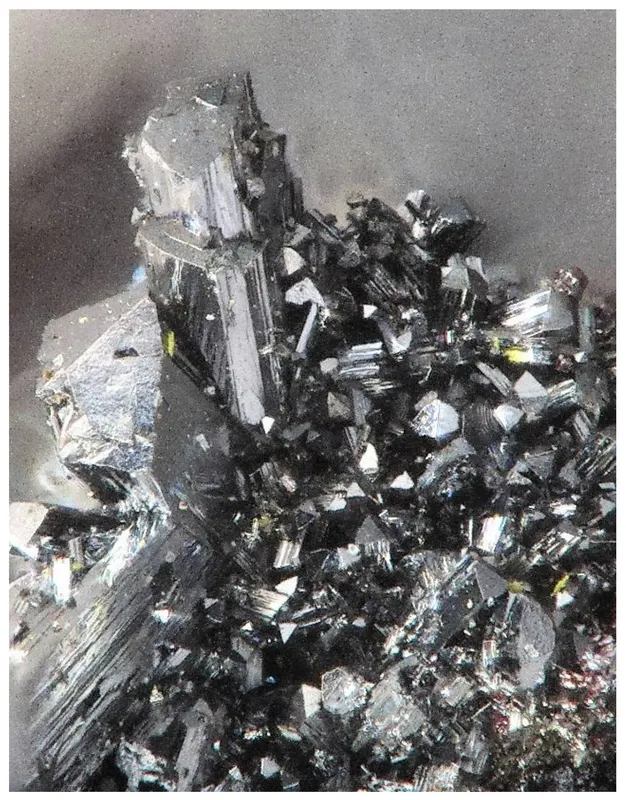

Black metallic subhedral to anhedral crystals, up to 100 μm in length.

Comment

Space group P21/n. Pseudo-orthorhombic.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
51SbAntimonyAntimony7121.760852.320
26.77%
82PbLeadLead4207.200828.800
26.03%
16SSulfurSulfur2432.060769.440
24.17%
47AgSilverSilver3107.868323.604
10.17%
33AsArsenicArsenic474.922299.688
9.41%
25MnManganeseManganese254.938109.876
3.45%
Total3183.728100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2018-002
  • Oyoniet

In other languages

German
IMA 2018-002 · Oyonit

Classification

Strunz
10th ed.

2.JB.40a

  • 2Sulfides and SulfosaltsClass
  • 2.JSulfosalts of PbS archetypeDivision
  • 2.JBGalena derivatives, with PbGroup
  • 2.JB.40aOyoniteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2018Bindi, Luca, Biagioni, Cristian, Keutsch, Frank (2018) Oyonite, Ag3Mn2Pb4Sb7As4S24, a New Member of the Lillianite Homologous Series from the Uchucchacua Base-Metal Deposit, Oyon District, Peru. Minerals, 8 (5). 192pp. doi:10.3390/min8050192DOI: 10.3390/min8050192
  2. 2018Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2018) CNMNC Newsletter No 43, New minerals and nomenclature modifications approved in 2018. Mineralogical Magazine, 82 (3) 779-785 doi:10.1180/mgm.2018.72DOI: 10.1180/mgm.2018.72
  3. 2020(2020) Oyonite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2022Kasatkin, A.V.; Stepanov, S.Yu.; Tsyganko, M.V.; Škoda, R.; Nestola, F.; Plàšil, J.; Makovicky, E.; Agakhanov, A.A.; Palamarchuk, R.S. (2022) Mineralogy of the Vorontsovskoe gold deposit (Northern Urals). МИНЕРАЛОГИЯ (MINERALOGY), 8 (1). 5-93 doi:10.35597/2313-545x-2022-8-1-1 DOI: 10.35597/2313-545x-2022-8-1-1
