Aschamalmite

Pb6-3xBi2+xS9
IMA status
  • Approved
IMA symbol
Ahm
Discovered
1983
Also known as
  • Aschamalmiet
  • Aschamalmitt
  • IMA1982-089

Where it forms, where it's found

Geological setting

Alpine cleft veins

Type locality
Ascham Alp - southeast of
  1. Ascham Alp - Breitfuß - Sonntagskopf area
  2. Neukirchen am Großvenediger
  3. Zell am See District
  4. Salzburg
  5. Austria

47.1785°, 12.3173°

20recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Metallic
Transparency
Opaque
Colour
Lead-grey
Cleavage
Perfect

on (001)

Density
7.33 g/cm³

Optical

Optical colour
Creamy white
Anisotropism
moderate from gray to red-brown
Tropism
Anisotropic
Reflectance R%
(45.1, 48.1) 470, (43.4, 46.3) 546, (42.9, 46.3) 589, (42.9, 46.3) 650
Reflected-light panel
43.6 %anisotropic · dual curve
Specimen sRGB 232, 163, 93
White reference100 % reflector under same lamp
R₁ R₂
Mode
Anisotropism
moderate from gray to red-brown
Reflected colour
Creamy white

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 13.719(1) Å · b = 4.132(1) Å · c = 31.419(3) Å
Cell angles
β = 90.94(1) °
Ratio a:b:c
1 : 0.301 : 2.290
Z
4
Morphology

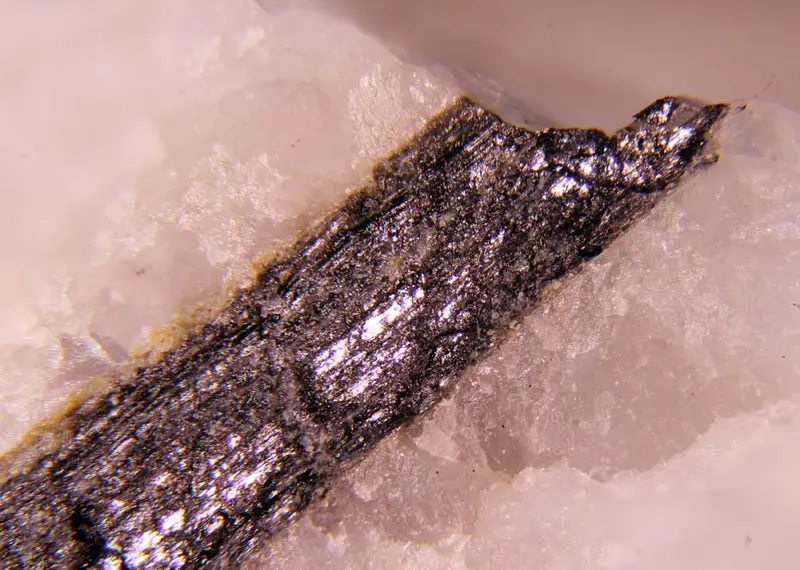

Prismatic lath-like crystals to 5 cm.

Type-locality form

Lath-like crystals to 5 cm in length or as thick, slightly bent plates up to 1 cm2. Most crystals are heavily altered to a mixture of bismutite and other unidentified phases.

Crystal structure

Synonyms

  • Aschamalmiet
  • Aschamalmitt
  • IMA1982-089

In other languages

German
Aschamalmit · IMA 1982-089
Italian
Aschamalmite

Classification

Strunz
10th ed.

2.JB.40b

  • 2Sulfides and SulfosaltsClass
  • 2.JSulfosalts of PbS archetypeDivision
  • 2.JBGalena derivatives, with PbGroup
  • 2.JB.40bAschamalmiteSpecies
Dana
8th ed.

03.01.11.01

  • 03SulfosaltsClass
  • 03.01ø > 4Type
  • 03.01.11— unnamed intermediate level —Group
  • 03.01.11.01AschamalmiteSpecies
CIM

3.6.9

  • 3Sulphides, Selenides, Tellurides, Arsenides and Bismuthides (except the arsenides, antimonides and bismuthides of Cu, Ag and Au, which are included in Section 1)Class
  • 3.6Sulphides etc. of Sb and PbGroup
  • 3.6.9AschamalmiteSpecies

Group, growth & confusion

Often grow together
6 minerals

Literature, links & citation

Citations
  1. 1983Mumme, W.G., Niedermayr, G., Kelly, P.R., Paar, W.H. (1983): Aschamalmite, Pb5.92Bi2.06S9, from Untersulzbach Valley in Salzburg, Austria - “monoclinic heyrovskyite”. Neues Jahrbuch für Mineralogie, Monatshefte: 1983: 433-444.
  2. 1984Dunn, Pete J., Fleischer, Michael, Francis, Carl A., Langley, Richard H., Kissin, Stephen A., Shigley, Hames E., Vanko, David A., Zilczer, Janet A. (1984) New mineral names. American Mineralogist, 69 (7-8) 810-815
  3. 1989Perchiazzi, N. (1989) Aschamalmite: secondo ritrovamento in natura presso l'Alpe Cedo, val d'Ossola. Rivista Mineralogica Italiana, Milano: 4: 238-240.
  4. 2005(2005) Aschamalmite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2008Boiocchi, M. and Callegari, A. (2008): Aschamalmite (Pb6Bi2S9): crystal structure refinement and ordering scheme for Pb and Bi atoms. Plinius, 34, 220.
