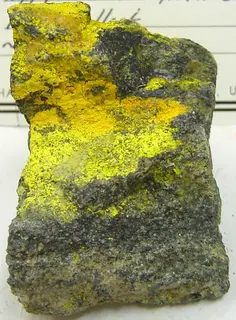

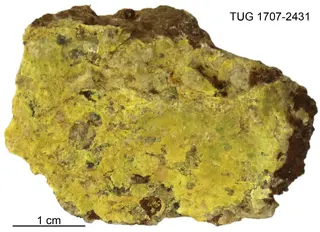

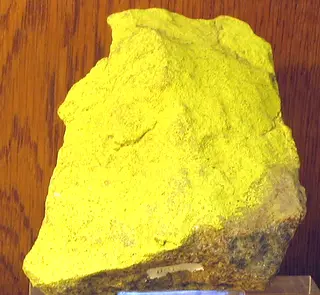

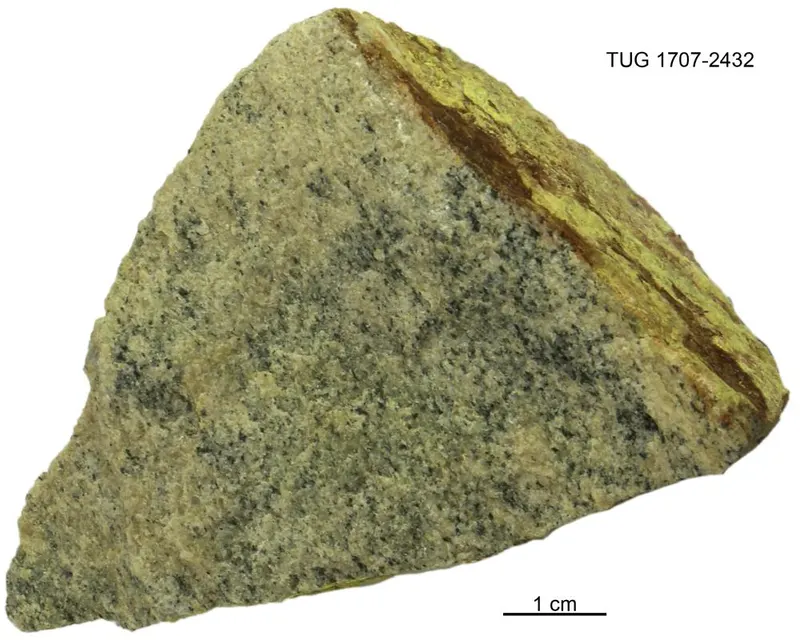

Carnotite

K2(UO2)2(VO4)2 · 3H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Cnt
Discovered
1899
Also known as
  • Carnóitít
  • Carnotite (of Friedel and Cumenge)

Where it forms, where it's found

Geological setting

Colorado Plateau sedimentary vanadium-uranium deposits

Colorado Plateau type uranium deposits, near playas.

Type locality
Rajah Mine (Big Chief No. 2
  1. Dullan claim)
  2. Montrose County
  3. Colorado
  4. USA

38.4378°, -108.9065°

1,143recorded occurrences
Source · OpenStreetMap

Varieties

Radioactivity

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Dull · earthy · silky · pearly.
Transparency
Translucent
Colour
Bright yellow · yellow · greenish yellow

Easily stained when fine-grained

Streak
Strontian-yellow
Tenacity
fragile
Cleavage
Perfect

on (001), perfect, micaceous

Fracture
Micaceous
Density
4.70 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 43 – 60° · 2V calc = 26 – 36°
Refractive index
1.75 – 1.95
Surface relief
Very high
Principal indices
nα 1.750 · nβ 1.925 · nγ 1.950
Birefringence
0.200
Pleochroism
Weak

X = Nearly colourless to pale grayish yellow Y = Z = Canary yellow, lemon-yellow

Dispersion
r < v
Extinction
Z^a ~14°; X=c, Y=b
UV response
Not Fluorescent
Notes

Indices of refraction increase as water content decreases.

Michel-Lévy diagramhighlighted lineδ = 0.2000
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]2000 nm4th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation2000 nm
Order4th order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 10.47 Å · b = 8.41 Å · c = 6.91 Å
Cell angles
β = 103.83 °
Ratio a:b:c
1 : 0.803 : 0.660
Z
2
Morphology

Crystals rare, diamond-shaped, flattened (001) and rhomboidal (110), also lath-like [010] with (100) and (110) or (120); (110) ^ (1_10) ~78°; commonly as fine aggregates or powdery; disseminated, compact massive.

Twinning

On (001) as both the composition and twin plane.

Type-locality form

Yellow powder and powdery masses

Comment

Space group determined based on synthetic, anhydrous material.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium2238.029476.058
52.77%
8OOxygenOxygen1515.999239.985
26.60%
23VVanadiumVanadium250.942101.884
11.29%
19KPotassiumPotassium239.09878.196
8.67%
1HHydrogenHydrogen61.0086.048
0.67%
Total902.171100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Carnóitít
  • Carnotite (of Friedel and Cumenge)

In other languages

French
Carnotite
German
Carnotit
Spanish
carnotita
Italian
carnotite
Portuguese
Carnotita · carnotite
Japanese
カルノー石
Chinese
釩鉀鈾礦
Simplified Chinese
钒酸钾铀矿
Traditional Chinese
釩酸鉀鈾礦
Russian
Карнотит
Arabic
كارنوتيت

Classification

Strunz
10th ed.

4.HB.05

  • 4OxidesClass
  • 4.HV[5,6] VanadatesDivision
  • 4.HBUranyl SorovanodatesGroup
  • 4.HB.05CarnotiteSpecies
Dana
8th ed.

40.2a.28.01

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.2aAB2(XO4)2·xH2O, containing (UO2)2+Type
  • 40.2a.28— unnamed intermediate level —Group
  • 40.2a.28.01CarnotiteSpecies
CIM

21.4.4

  • 21Vanadates (and vanadates with arsenate or phosphate)Class
  • 21.4Vanadates of U, Mn, Fe or NiGroup
  • 21.4.4CarnotiteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1899Friedel and Cumenge (1899) Comptes rendus de l’Académie des sciences de Paris: 128: 532.
  2. 1899Friedel, C., Cumenge, E. (1899) Sur un nouveau minerai d´urane. Bulletin de la Société Française de Minéralogie: 22: 26-29.
  3. 1900Hillebrand, W.F., Ransome, F.L. (1900) On Carnotite and Associated Vanadiferous Minerals in Western Colorado. American Journal of Science: 10(56): 120.
  4. 1910Crook, T., Blake, G. S. (1910) On Carnotite and an associated mineral complex from South Australia. Mineralogical Magazine and Journal of the Mineralogical Society, 15 (71) 271-284 doi:10.1180/minmag.1910.015.71.02 DOI: 10.1180/minmag.1910.015.71.02
  5. 1918Doelter, C. (1918) Handbuch der Mineral-chemie (in 4 volumes divided into parts): 3 [I]: 844.
