Plumboperloffite

PbMn2+2Fe3+2(PO4)3(OH)3
IMA status
  • Approved
IMA symbol
Pplf
IMA approved
2020
Also known as
  • IMA2020-007
  • Plumboperloffiet

Where it forms, where it's found

Geological setting

pegmatites belong to the beryl-columbite phosphate-rare element type in the classification of Černý

Type locality
Wiperaminga Hill West Quarry
  1. Boolcoomatta Reserve (Boolcoomata Station)
  2. Pastoral Unincorporated Area
  3. South Australia
  4. Australia

-31.9617°, 140.4594°

1recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
brownish orange
Streak
pale orange
Tenacity
brittle
Cleavage
Perfect

excellent cleavage on (100)

Fracture
Irregular/Uneven
Density
4.416 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 88° · 2V calc = 90.5°
Refractive index
1.87 – 1.89
Surface relief
Very high
Principal indices
nα 1.87 · nβ 1.88 · nγ 1.89
Pleochroism
Visible

The pleochroism in shades of yellow brown is X < Z < Y.

Dispersion
Dispersion is apparently strong, based on extinction colours and the orientation is Y = b.
Michel-Lévy diagramhighlighted lineδ = 0.0200
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]200 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation200 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/m
Cell parameters
a = 9.176(2) Å · b = 12.340(3) Å · c = 5.009(1) Å
Cell angles
β = 101.01(3) °
Ratio a:b:c
1 : 1.345 : 0.546
Z
2
Type-locality form

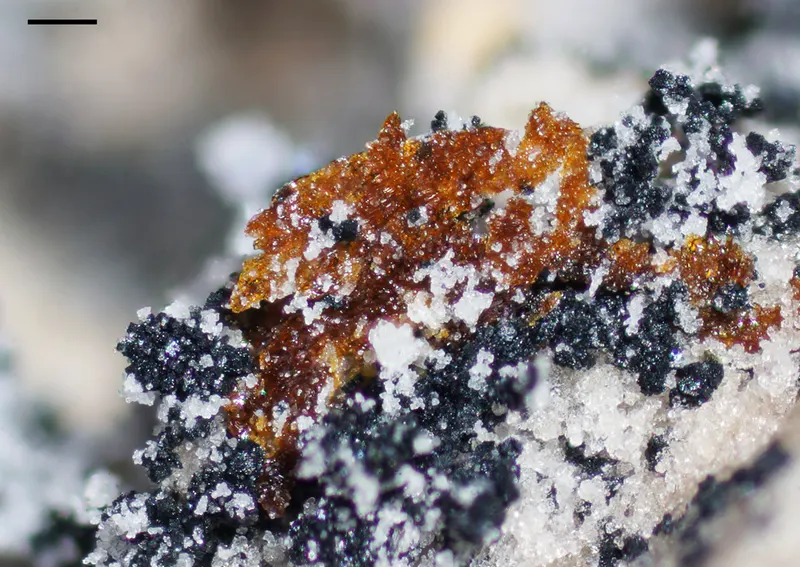

The mineral forms intergrowths of subparallel, thin tabular to bladed crystals. Individual crystals are up to 40 µm in length.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1515.999239.985
31.38%
82PbLeadLead1207.200207.200
27.10%
26FeIronIron255.845111.690
14.61%
25MnManganeseManganese254.938109.876
14.37%
15PPhosphorusPhosphorus330.97492.922
12.15%
1HHydrogenHydrogen31.0083.024
0.39%
Total764.697100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2020-007
  • Plumboperloffiet

In other languages

German
IMA 2020-007 · Plumboperloffit

Classification

Strunz
10th ed.

8.BH.20

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BHWith medium-sized and large cations, (OH,etc.):RO4 = 1:1Group
  • 8.BH.20PlumboperloffiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2020Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2020) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) – Newsletter 55. European Journal of Mineralogy, 32 (3) 367-371 doi:10.5194/ejm-32-367-2020 DOI: 10.5194/ejm-32-367-2020
  2. 2022(2022) Plumboperloffite. Handbook of Mineralogy. Mineralogical Society of America
  3. 2024Elliott, Peter, Kampf, Anthony R. (2024) Plumboperloffite, PbMn2+2Fe3+2(PO4)3(OH)3, a new member of the bjarebyite group from Wiperaminga Hill, South Australia, Australia. Mineralogical Magazine, 88 (2). 170-175 doi:10.1180/mgm.2023.97DOI: 10.1180/mgm.2023.97
