Ramsbeckite

Cu15(SO4)4(OH)22 · 6H2O
IMA status
  • Approved
IMA symbol
Rbe
Discovered
1984
IMA approved
1984
Also known as
  • IMA1984-067
  • Ramsbeckiet

Where it forms, where it's found

Geological setting

Recent weathering of Cu- and Zn-bearing ore minerals in an abandoned adit and in mine dumps.

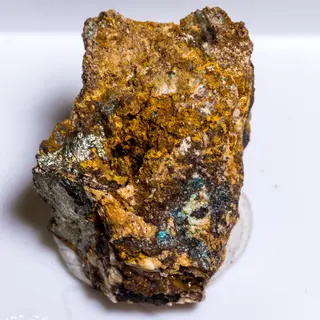

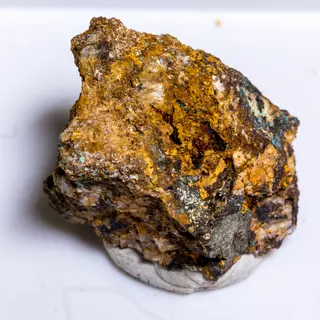

Type locality
Bastenberg Mine
  1. Ramsbeck
  2. Bestwig
  3. Hochsauerlandkreis
  4. Arnsberg
  5. North Rhine-Westphalia
  6. Germany

51.2980°, 8.3974°

71recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
Green
Streak
Light green
Cleavage
None Observed
Fracture
Conchoidal
Density
3.39 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 37.0° · 2V calc = 38.0°
Refractive index
1.635 – 1.68
Surface relief
High
Principal indices
nα 1.635 · nβ 1.675 · nγ 1.680
Dispersion
r > v
Extinction
X ≈ c; Y = a; Z ≈ b.
Michel-Lévy diagramhighlighted lineδ = 0.0450
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]450 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation450 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 16.06 Å · b = 15.57 Å · c = 7.1 Å
Cell angles
β = 90.2 °
Ratio a:b:c
1 : 0.969 : 0.442
Z
2
Morphology

Equant to tabular (001) rhomb-shaped crystals showing (001), (210), and commonly (110).

Type-locality form

Equant to tabular rhomb-shaped crystals.

Comment

Space group P21/a. Unit-cell parameters are slightly variable, depending on Cu:Zn ratio: a = 16.088–16.110, b = 15.576–15.602, c = 7.102–7.112 A, β = 90.0-90.27°.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
29CuCopperCopper1563.546953.190
52.38%
8OOxygenOxygen4415.999703.956
38.69%
16SSulfurSulfur432.060128.240
7.05%
1HHydrogenHydrogen341.00834.272
1.88%
Total1819.658100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1984-067
  • Ramsbeckiet

In other languages

German
IMA 1984-067 · Ramsbeckit
Spanish
Ramsbeckita
Italian
Ramsbeckite

Classification

Strunz
10th ed.

7.DD.60

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DDWith only medium-sized cations; sheets of edge-sharing octahedraGroup
  • 7.DD.60RamsbeckiteSpecies
Dana
8th ed.

31.04.09.01

  • 31Hydrated Sulfates Containing Hydroxyl or HalogenClass
  • 31.04(AB)4(XO4)Zq·xH2OType
  • 31.04.09— unnamed intermediate level —Group
  • 31.04.09.01RamsbeckiteSpecies
CIM

25.5.5

  • 25SulphatesClass
  • 25.5Sulphates of Zn and HgGroup
  • 25.5.5RamsbeckiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1985von Hodenberg, R., Krause, W., Schnorrer-Köhler, G., Täuber, H. (1985) Ramsbeckite, (Cu,Zn)7(SO4)2(OH)10·5H2O, a new mineral. Neues Jahrbuch für Mineralogie - Monatshefte, 1985. 550-556
  2. 1987Hawthorne, F.C., Bladh, K.W., Burke, E.A.J, Grew, E.S., Langley, R.H., Puciewicz, J., Roberts, A.C., Schedler, R.A., Shigley, J.E., Vanko, D.A. (1987) New mineral names. American Mineralogist: 72: 222-230.
  3. 1988Effenberger, H. (1988) Ramsbeckite, (Cu,Zn)15(OH)22(SO4)4·6H2O: Revision of the chemical formula based on a structure determination. Neues Jahrbuch für Mineralogie - Monatshefte, 1988. 38-48
  4. 1989Jambor, John L., Puziewicz, Jacek (1989) New Mineral Names. American Mineralogist, 74 (3-4) 500-504
  5. 2004OHNISHI, Masayuki, KOBAYASHI, Shoichi, KUSACHI, Isao, YAMAKAWA, Junji, SHIRAKAMI, Masao (2004) Ramsbeckite from the Hirao mine at Minoo, Osaka, Japan. Journal of Mineralogical and Petrological Sciences, 99 (1) 19-24 doi:10.2465/jmps.99.19 DOI: 10.2465/jmps.99.19
