Sainfeldite

Ca5(AsO4)2(AsO3OH)2 · 4H2O
IMA status
  • Approved
IMA symbol
Sai
Discovered
1964
Also known as
  • IMA1963-018
  • Sainfeldiet

Where it forms, where it's found

Geological setting

Post-mine.

Type locality
Gabe Gottes Mine
  1. Sankt Jakob vein
  2. Neuenberg
  3. Sainte-Marie-aux-Mines
  4. Colmar-Ribeauvillé
  5. Haut-Rhin
  6. Grand Est
  7. France

48.2136°, 7.1589°

30recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colorless · pale pink
Streak
White
Tenacity
brittle
Fracture
Irregular/Uneven
Density
3.04 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 80° · 2V calc = 74°
Refractive index
1.6 – 1.616
Surface relief
Moderate
Principal indices
nα 1.600 · nβ 1.610 · nγ 1.616
Birefringence
0.016
Pleochroism
Non-pleochroic
Dispersion
r < v weak
Extinction
X = b, Y^c ~ 20°
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0160
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]160 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation160 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 18.781(7) Å · b = 9.820(4) Å · c = 10.191(4) Å
Cell angles
β = 97.0 °
Ratio a:b:c
1 : 0.523 : 0.543
Unit cell volume
1865.43 ų
Z
8
Morphology

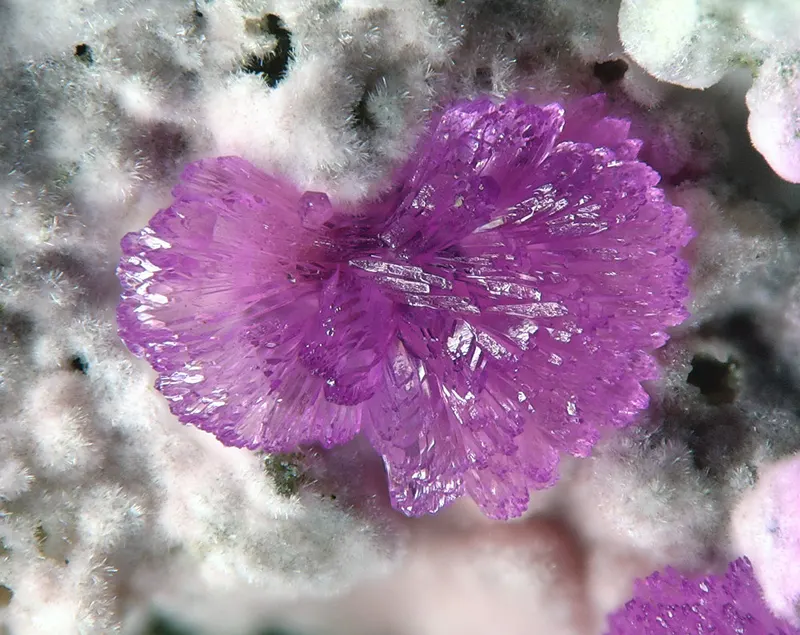

blades-prisms in radiating aggregates and rosettes

Comment

C2/c setting; Bull. Min. 95:33 (1972) structure

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2015.999319.980
38.55%
33AsArsenicArsenic474.922299.688
36.10%
20CaCalciumCalcium540.078200.390
24.14%
1HHydrogenHydrogen101.00810.080
1.21%
Total830.138100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Co

Synonyms

  • IMA1963-018
  • Sainfeldiet

In other languages

French
Sainfeldite
German
IMA 1963-018 · Sainfeldit
Spanish
Sainfeldita
Italian
Sainfeldite

Classification

Strunz
10th ed.

8.CJ

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CJWith only large cationsGroup
  • 8.CJSainfelditeSpecies
Dana
8th ed.

39.02.01.02

  • 39Hydrated Acid Phosphates, Arsenates and VanadatesClass
  • 39.02(AB)5[HXO4]2[XO4]2.xH2OType
  • 39.02.01Hureaulite GroupGroup
  • 39.02.01.02SainfelditeSpecies
CIM

20.2.9

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.2Arsenates of Be, Mg, Ca or BaGroup
  • 20.2.9SainfelditeSpecies

Group, growth & confusion

Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1964Pierrot, Roland (1964) Contribution à la minéralogie des arséniates calciques et calcomagnésiens naturels. Bulletin de Minéralogie, 87 (2) 169-211 doi:10.3406/bulmi.1964.5727DOI: 10.3406/bulmi.1964.5727
  2. 1965Fleischer, Michael (1965) New Mineral Names. American Mineralogist, 50 (5-6) 805-813
  3. 1972Ferraris, G., Abbona, F. (1972) The crystal structure of Ca5(HAsO4)2(AsO4)2·4H2O (Sainfeldite). Bulletin de la Société Française de Minéralogie et de Cristallographie: 95: 33-41.
  4. 2005(2005) Sainfeldite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2008Rodriguez, J. D., Jimenez, A., Prieto, M., Torre, L., Garcia-Granda, S. (2008) Interaction of gypsum with As(V)-bearing aqueous solutions: Surface precipitation of guerinite, sainfeldite, and Ca2NaH(AsO4)2·6H2O, a synthetic arsenate. American Mineralogist, 93 (5) 928-939 doi:10.2138/am.2008.2750DOI: 10.2138/am.2008.2750
