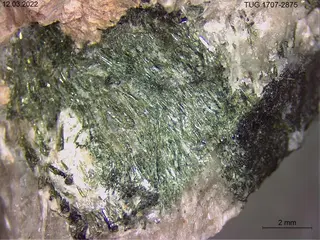

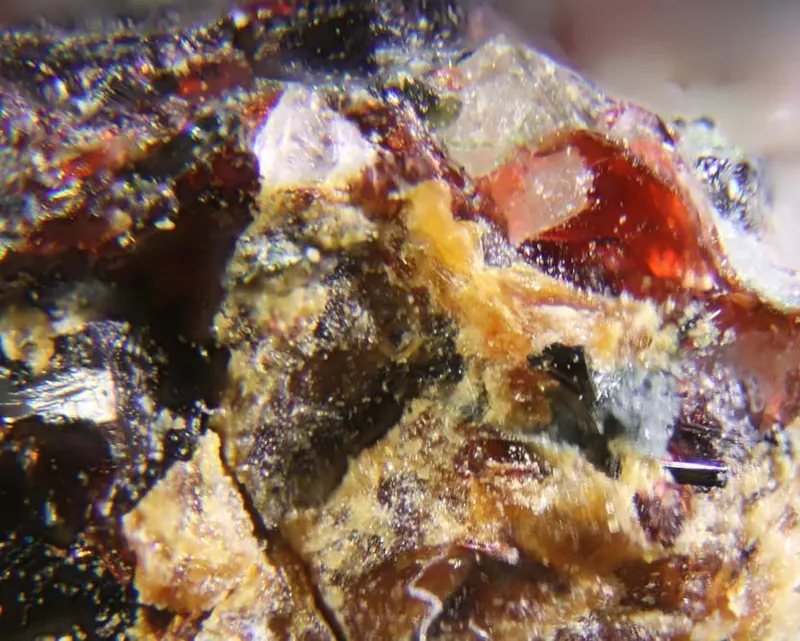

Shafranovskite

Na3K2(Mn,Fe,Na)4[Si9(O,OH)27](OH)2 · nH2O
IMA status
  • Approved
IMA symbol
Sfn
Discovered
1982
Also known as
  • IMA1981-048
  • Shafranovskiet

Where it forms, where it's found

Geological setting

A sodalite-nepheline-aegirine-microcline vein in urtite

Type locality
Rasvumchorr Mt
  1. Murmansk Oblast
  2. Russia

67.6000°, 33.9000°

5recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Dark green to olive-green

Alters to greenish yellow, then to ochre-yellow

Streak
Green to yellow
Cleavage
Perfect

on (0001)

Fracture
Conchoidal
Density
2.76 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.57 – 1.587
Surface relief
Moderate
Principal indices
nω 1.587 · nε 1.570
Michel-Lévy diagramhighlighted lineδ = 0.0170
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]170 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation170 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#81
Cell parameters
a = 14.519(3) Å · c = 21.062(6) Å
Z
6
Morphology

Aggregates (up to 5mm in diameter of olive-green equant grains (up to 0.,1 mm)

Type-locality form

granular aggregates, to 5 mm.

Crystal structure

Chemical composition

Impurities
  • Ti
  • Al
  • Mg
  • Ca

Synonyms

  • IMA1981-048
  • Shafranovskiet

In other languages

German
IMA 1981-048 · Shafranovskit
Italian
Shafranovskite

Classification

Strunz
10th ed.

9.EE.65

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EESingle tetrahedral nets of 6-membered rings connected by octahedral nets or octahedral bandsGroup
  • 9.EE.65ShafranovskiteSpecies
Dana
8th ed.

78.03.02.01

  • 78Unclassified SilicatesClass
  • 78.03Unclassified silicates possible cyclosilicatesType
  • 78.03.02— unnamed intermediate level —Group
  • 78.03.02.01ShafranovskiteSpecies
CIM

14.18.5

  • 14Silicates not Containing AluminumClass
  • 14.18Silicates of Mn and Na, K, Mg, Ca or FeGroup
  • 14.18.5ShafranovskiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1982Khomyakov, A.P., Vrublevskaya, Z.V., Zvyagin, B.B., Mateeva, N.A., Piloyan, G.O. (1982) Shafranovskite (Na,K)6(Mn,Fe)3Si9O24·6H2O, a new mineral. Zapiski Vsesoyuznogo Mineralogicheskogo Obshchestva: 111(4): 475-480.
  2. 1983Dunn, Pete J., Fleischer, Michael (1983) New mineral names. American Mineralogist, 68 (5-6) 642-645
  3. 2004Krivovichev, Sergey V., Yakovenchuk, Viktor N., Armbruster, Thomas, Pakhomovsky, Yakov A., Weber, Hans-Peter, Depmeier, Wulf (2004) Synchrotron X-ray diffraction study of the structure of shafranovskite, K2Na3(Mn,Fe,Na)4[Si9(O,OH)27](OH)2·nH2O, a rare manganese phyllosilicate from the Kola peninsula, Russia. American Mineralogist, 89 (11) 1816-1821 doi:10.2138/am-2004-11-1228 DOI: 10.2138/am-2004-11-1228
  4. 2021(2021) Shafranovskite. Handbook of Mineralogy. Mineralogical Society of America
