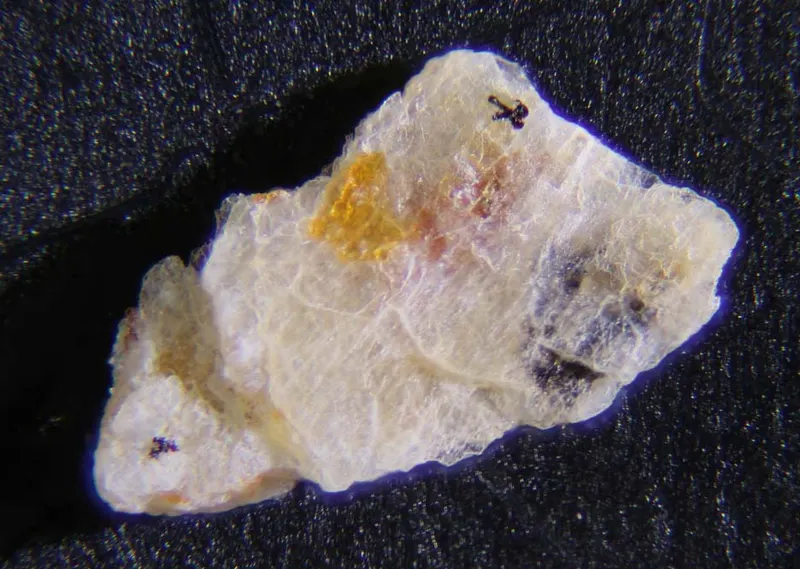

Shkatulkalite

Na2Nb2Na3Ti(Si2O7)2O2(FO)(H2O)4(H2O)3
IMA status
  • Approved
IMA symbol
Skk
IMA approved
1993
Also known as
  • IMA1993-058
  • Shkatulkaite
  • Shkatulkaliet
  • +1 more

Where it forms, where it's found

Geological setting

Ultra-agpaitic pegmatite.

Type locality
Shkatulka pegmatite
  1. Umbozero mine
  2. Alluaiv Mountain
  3. Lovozersky District
  4. Murmansk Oblast
  5. Russia
1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Pearly
Transparency
Transparent · Translucent
Colour
Colourless to silver-white · yellow · light pink · creamy-white
Tenacity
brittle
Cleavage
Perfect

Perfect (100) and perfect micaceous (001)

Density
2.70 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 82° · 2V calc = 84°
Refractive index
1.608 – 1.66
Surface relief
Moderate
Principal indices
nα 1.608 · nβ 1.63 · nγ 1.66
Dispersion
r < v moderate
Michel-Lévy diagramhighlighted lineδ = 0.0520
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]520 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation520 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 5.464(1) Å · b = 7.161(1) Å · c = 15.573(1) Å
Cell angles
α = 90.00(3) ° · β = 95.75(3) ° · γ = 90.00(3) °
Ratio a:b:c
1 : 1.311 : 2.850
Unit cell volume
606.3 ų
Type-locality form

Rectangular lamellae and tabular grains; as mica like aggregates.

Comment

System, class, and cell params from Sokolova et al. (2022).

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
43.73%
41NbNiobiumNiobium292.906185.812
21.16%
11NaSodiumSodium522.990114.950
13.09%
14SiSiliconSilicon428.085112.340
12.80%
22TiTitaniumTitanium147.86747.867
5.45%
9FFluorineFluorine118.99818.998
2.16%
1HHydrogenHydrogen141.00814.112
1.61%
Total878.055100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1993-058
  • Shkatulkaite
  • Shkatulkaliet
  • Shkatulkalit

In other languages

German
IMA 1993-058 · Shkatulkait · Shkatulkalith
Italian
shkatulkalite

Classification

Strunz
10th ed.

9.BE.50

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BESi2O7 groups, with additional anions; cations in octahedral [6] and greater coordinationGroup
  • 9.BE.50ShkatulkaliteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1996Menchikov, Y. P., Khomyakov, A. P., Polezhaeva, L. I., Rastsvetaeva, R. K. (1996) Shkatulkalite Na10MnTi3Nb3(Si2O7)6(OH)2F·12H2O – a new mineral. Zapiski Vserossijskogo Mineralogicheskogo Obshchestva, 125 (1) 120-126
  2. 1997Mandarino, Joseph A. (1997) Abstracts of New Mineral Descriptions. The Mineralogical Record, 28 (3) 219-224
  3. 1997Jambor, John L.; Pertsev, Nikolai N.; Roberts, Andrew C. (1997) New Mineral Names. American Mineralogist, 82 (3-4). 430-433
  4. 2005Nemeth, P., Ferraris, G., Radnoczi, G., Ageeva, O. A. (2005) TEM and X-ray study of syntactic intergrowths of epistolite, murmanite and shkatulkalite. The Canadian Mineralogist, 43 (3) 973-987 doi:10.2113/gscanmin.43.3.973 DOI: 10.2113/gscanmin.43.3.973
  5. 2006Locock, Andrew J., Piilonen, Paula C., Ercit, T. Scott, Rowe, Ralph (2006) New Mineral Names. American Mineralogist, 91 (1) 216-224 doi:10.2138/am.2006.454DOI: 10.2138/am.2006.454
