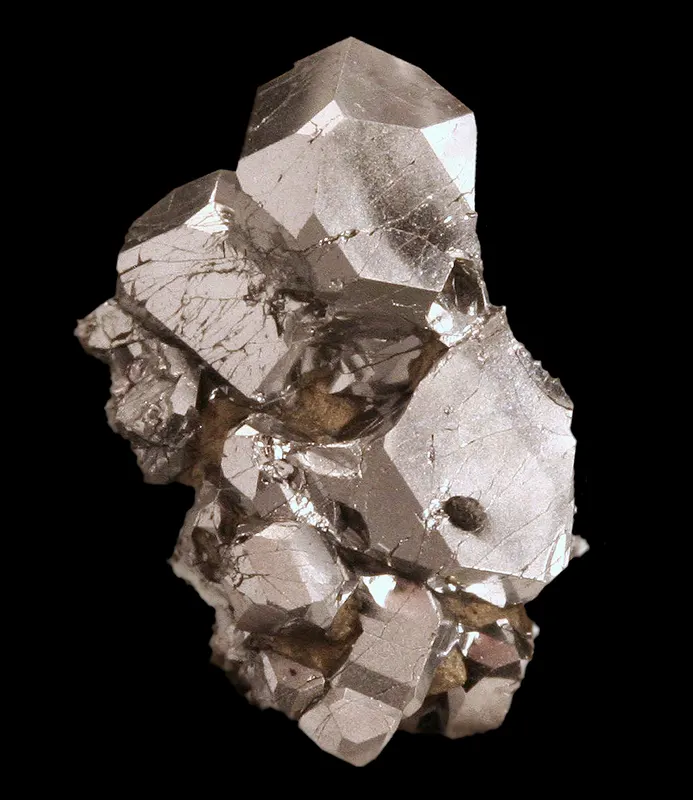

Sperrylite

PtAs2
IMA status
  • Approved
  • Grandfathered
IMA symbol
Spy
Discovered
1889

Where it forms, where it's found

Geological setting

Ultramafic intrusions, platinum deposits.

Type locality
Vermilion Mine
  1. Denison Township
  2. Greater Sudbury
  3. Ontario
  4. Canada

46.4156°, -81.3614°

387recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789106 – 7/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Tin-white
Streak
Dark grey to black
Tenacity
brittle
Cleavage
Poor/Indistinct

Indistinct on (001)

Fracture
Conchoidal
Density
10.58 g/cm³

Optical

Tropism
Isotropic
Reflectance R%
(53.6) 400, (53.6) 420, (53.9) 440, (53.9) 460, (53.9) 480, (53.9) 500, (54.0) 520, (53.9) 540, (53.8) 560, (53.7) 580, (53.5) 600, (53.1) 620, (52.7) 640, (52.3) 660, (51.9) 680, (51.4) 700
Reflected-light panel
53.3 %isotropic · single curve
Specimen sRGB 255, 180, 100
White reference100 % reflector under same lamp

Crystallography

Crystal system
Isometric
Space group
Pa3
Cell parameters
a = 5.967 Å
Z
4
Morphology

Cubes and cubo-octahedrons.

Type-locality form

Brilliant grains, showing crystal faces, from 0.05 to 0.5 mm in diameter.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
78PtPlatinumPlatinum1195.084195.084
56.56%
33AsArsenicArsenic274.922149.844
43.44%
Total344.928100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ir
  • Rh
  • Fe
  • Cu
  • Sb

In other languages

French
sperrylite
German
Sperrylit · Sperrylith
Spanish
Sperrylita
Italian
Sperrylite
Portuguese
Esperrilite · sperrylite
Chinese
砷铂矿
Russian
Сперрилит
Arabic
سبيريليت

Classification

Strunz
10th ed.

2.EB.05a

  • 2Sulfides and SulfosaltsClass
  • 2.EMetal Sulfides, M: S <= 1:2Division
  • 2.EBM:S = 1:2, with Fe, Co, Ni, PGE, etc.Group
  • 2.EB.05aSperryliteSpecies
Dana
8th ed.

02.12.01.13

  • 02SulfidesClass
  • 02.12AmBnXp, with (m+n):p = 1:2Type
  • 02.12.01Pyrite Group (Isometric: Pa3)Group
  • 02.12.01.13SperryliteSpecies
CIM

3.12.50

  • 3Sulphides, Selenides, Tellurides, Arsenides and Bismuthides (except the arsenides, antimonides and bismuthides of Cu, Ag and Au, which are included in Section 1)Class
  • 3.12Sulphides etc. of the platinum metalsGroup
  • 3.12.50SperryliteSpecies

Group, growth & confusion

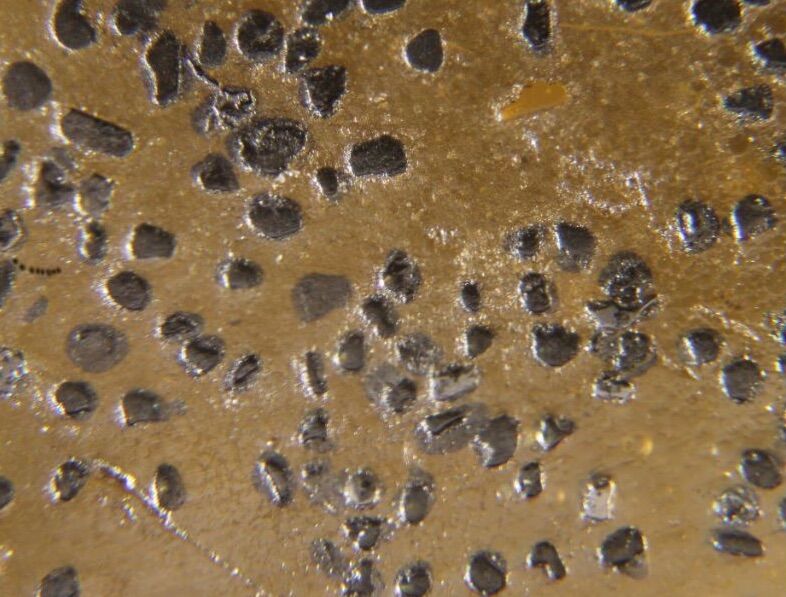

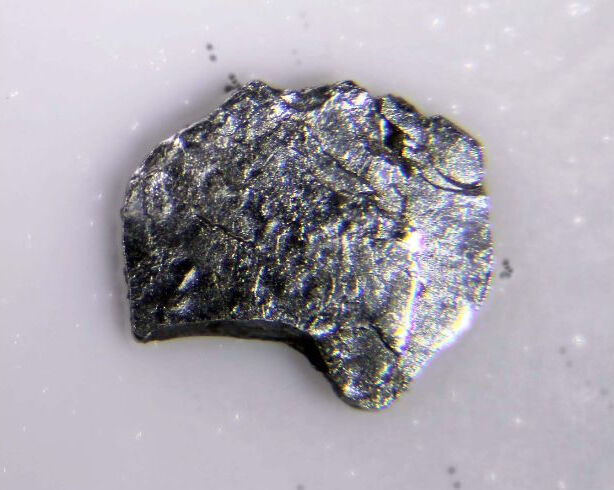

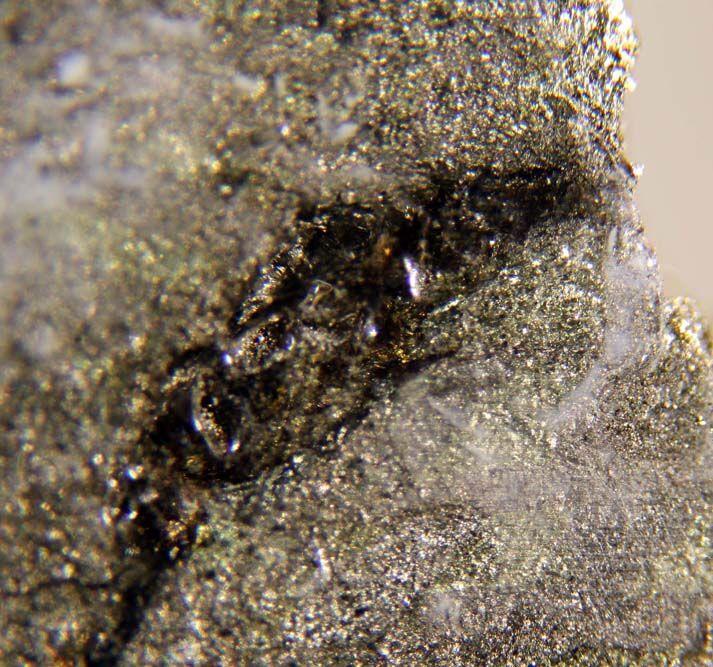

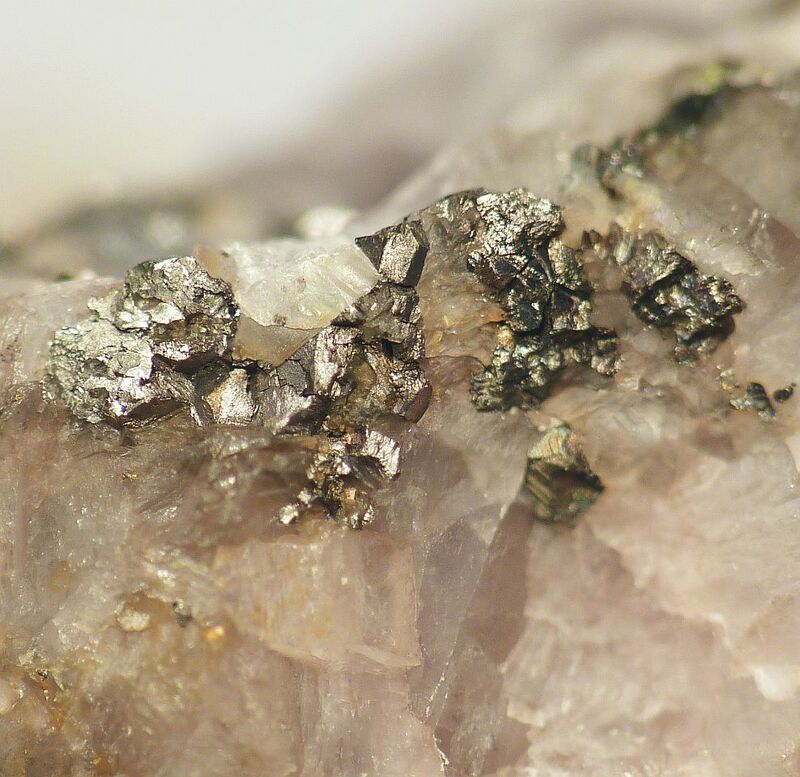

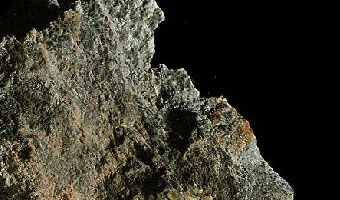

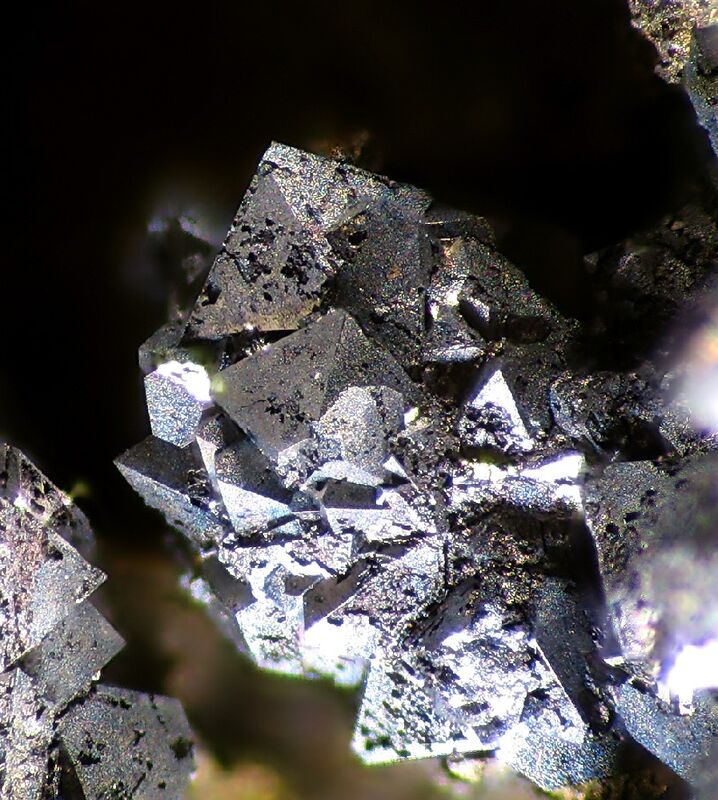

In the same group
16 members
Often grow together
5 minerals

Literature, links & citation

Citations
  1. 1889Wells, H.L. (1889) Sperrylite, a new mineral. American Journal of Science, 137, 67-70.
  2. 1889Penfield, S.L. (1889) On the crystalline form of sperrylite. American Journal of Science, 137, 71-73.
  3. 1889Wells, Horace L. (1889) Sperrylith, ein neues Mineral. Zeitschrift für Kristallographie, 15 (1-6). 285-289 doi:10.1524/zkri.1889.15.1.285DOI: 10.1524/zkri.1889.15.1.285
  4. 1889Penfield, S. L. (1889) Die Krystallform des Sperrylith. Zeitschrift für Kristallographie, 15 (1-6). 290-292 doi:10.1524/zkri.1889.15.1.290DOI: 10.1524/zkri.1889.15.1.290
  5. 1925Ramsdell, Lewis S. (1925) The crystal structure of some metallic sulfides. American Mineralogist, 10 (9) 281-304
