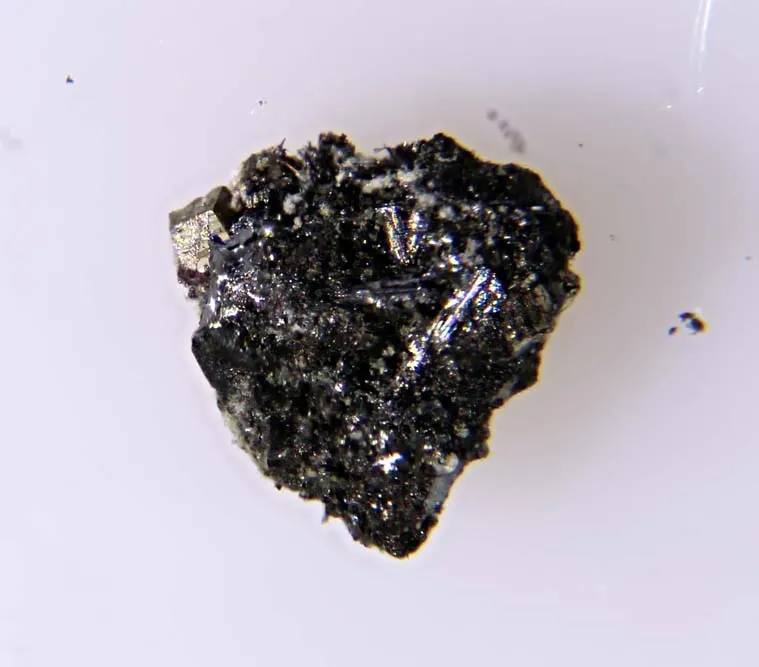

Terrywallaceite

AgPb(Sb,Bi)3S6
IMA status
  • Approved
IMA symbol
Twl
IMA approved
2011
Also known as
  • IMA2011-017
  • Terrywallaceiet

Where it forms, where it's found

Geological setting

Hydrothermal alteration and mineralization are believed to have taken place concurrently with the intrusion of late-stage volcanic domes and dikes

Type locality
Level 390
  1. Vein 14
  2. Herminia Mine
  3. Julcani mining district
  4. Ccochaccasa District
  5. Angaraes Province
  6. Huancavelica
  7. Peru
7recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Black
Streak
Black
Tenacity
brittle
Cleavage
Distinct/Good

(010)

Density
6.005 g/cm³

Optical

Pleochroism
Weak

weak pleochroism (white to pale gray)

Optical colour
grayish white
Anisotropism
weak anisotropy (gray with bluish tint to bluish black in air)
Bireflectance
weak bireflectance
Tropism
Anisotropic
Reflectance R%
(42.6,38.8) 400, (42.2,38.3) 420, (41.8,37.9) 440, (41.4,37.5) 460, (41.3,37.3) 470, (41.2,37.1) 480, (40.7,36.6) 500, (40.3,36.2) 520, (39.9,35.7) 540, (39.7,35.5) 546, (39.4,35.2) 560, (39.0,34.8) 580, (38.7,34.6) 589, (38.4,34.3) 600, (37.9,33.9) 620, (37.4,33.4) 640, (37.1,33.2) 650, (36.8,33.0) 660, (36.2,32.5) 680, (35.7,32.0) 700
Reflected-light panel
39.4 %anisotropic · dual curve
Specimen sRGB 219, 157, 90
White reference100 % reflector under same lamp
R₁ R₂
Mode
Bireflectance
weak bireflectance
Anisotropism
weak anisotropy (gray with bluish tint to bluish black in air)
Reflected colour
grayish white

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 6.9764(4) Å · b = 19.3507(10) Å · c = 8.3870(4) Å
Cell angles
β = 107.519(2) °
Ratio a:b:c
1 : 2.774 : 1.202
Z
4
Twinning

pervasive on (100)

Parting
none
Type-locality form

lath-shaped, black, with striations parallel to the elongated direction (the c axis) and up to 0.5 mm long

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
83BiBismuthBismuth3208.980626.940
41.80%
51SbAntimonyAntimony3121.760365.280
24.36%
82PbLeadLead1207.200207.200
13.82%
16SSulfurSulfur632.060192.360
12.83%
47AgSilverSilver1107.868107.868
7.19%
Total1499.648100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2011-017
  • Terrywallaceiet

In other languages

German
IMA 2011-017 · Terrywallaceit
Italian
terrywallaceite

Classification

Strunz
10th ed.

2.JB.40a

  • 2Sulfides and SulfosaltsClass
  • 2.JSulfosalts of PbS archetypeDivision
  • 2.JBGalena derivatives, with PbGroup
  • 2.JB.40aTerrywallaceiteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 2009Pažout, Richard; Dušek, Michal (2009) Natural monoclinic AgPb(Bi2Sb)3S6, an Sb-rich gustavite. Acta Crystallographica Section C Crystal Structure Communications, 65 (11). i77-i80 doi:10.1107/s0108270109040293DOI: 10.1107/s0108270109040293
  2. 2011Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2011) New minerals and nomenclature modifications approved in 2011, CNMNC Newsletter No. 10. Mineralogical Magazine, 75 (5) 2549-2561 doi:10.1180/minmag.2011.075.5.2549 DOI: 10.1180/minmag.2011.075.5.2549
  3. 2013Yang, H., Downs, R. T., Evans, S. H., Pinch, W. W. (2013) Terrywallaceite, AgPb(Sb,Bi)3S6, isotypic with gustavite, a new mineral from Mina Herminia, Julcani Mining District, Huancavelica, Peru. American Mineralogist, 98 (7) 1310-1314 doi:10.2138/am.2013.4423 DOI: 10.2138/am.2013.4423
  4. 2017(2017) Terrywallaceite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2020Kasatkin, A.V.; Škoda, R. (2020) Terrywallaceite from the Kochkar Au Deposit, South Urals: First Find in Russia. МИНЕРАЛОГИЯ (MINERALOGY), 6 (1). 47-57 doi:10.35597/2313-545x-2020-6-1-4 DOI: 10.35597/2313-545x-2020-6-1-4
