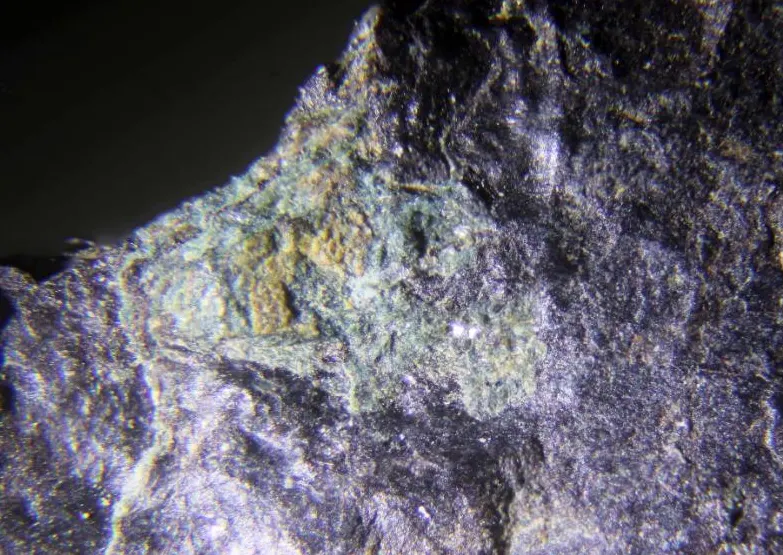

Wicksite

NaCa2Fe2+2(Fe3+,Mn2+,Fe2+)4(PO4)6 · 2H2O
IMA status
  • Approved
IMA symbol
Wic
Discovered
1979
IMA approved
1979
Also known as
  • IMA1979-019
  • Wicksiet

Where it forms, where it's found

Geological setting

Nodules in shale bed in iron formation

Type locality
Big Fish River
  1. Dawson mining district
  2. Yukon
  3. Canada

68.4738°, -136.4874°

5recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Dark blue · dark green · black
Streak
Green
Cleavage
Distinct/Good

Good on (010)

Density
3.54 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 66° · 2V calc = 72°
Refractive index
1.713 – 1.728
Surface relief
High
Principal indices
nα 1.713 · nβ 1.718 · nγ 1.728
Pleochroism
Strong

X= blue Y= greenish blue Z= pale yellowish brown

Dispersion
r < v strong
Michel-Lévy diagramhighlighted lineδ = 0.0150
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]150 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation150 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#61
Cell parameters
a = 12.907(2) Å · b = 12.524(1) Å · c = 11.646(2) Å
Ratio a:b:c
1 : 0.970 : 0.902
Z
4
Morphology

Crystals are platy; granular, massive.

Comment

Space group Pcab (non-standard setting).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
26FeIronIron1055.845558.450
37.55%
8OOxygenOxygen2615.999415.974
27.97%
25MnManganeseManganese454.938219.752
14.78%
15PPhosphorusPhosphorus630.974185.844
12.50%
20CaCalciumCalcium240.07880.156
5.39%
11NaSodiumSodium122.99022.990
1.54%
1HHydrogenHydrogen41.0084.032
0.27%
Total1487.198100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1979-019
  • Wicksiet

In other languages

French
Wicksite
German
IMA 1979-019 · Wicksit
Spanish
Wicksita
Italian
Wicksite
Russian
Виксит

Classification

Strunz
10th ed.

8.CF.05

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CFWith large and medium-sized cations, RO4:H2O > 1:1Group
  • 8.CF.05WicksiteSpecies
Dana
8th ed.

40.02.10.01

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.02AB2(XO4)2·xH2OType
  • 40.02.10— unnamed intermediate level —Group
  • 40.02.10.01WicksiteSpecies
CIM

19.12.32

  • 19PhosphatesClass
  • 19.12Phosphates of MnGroup
  • 19.12.32WicksiteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1981Sturman, B. D., Peacor, D. R., Dun, P. J. (1981) Wicksite, a new mineral from northeastern Yukon Territory. The Canadian Mineralogist, 19 (3) 377-380
  2. 1992Robinson, George W., Van Velthuizen, Jerry, Ansell, H. Gary, Sturman, B. Darko (1992) Mineralogy of the Rapid Creek and Big Fish River Area, Yukon Territory. The Mineralogical Record, 23 (4) 1-47
  3. 1997Cooper, M.A. & Hawthorne, F.C. (1997): The crystal structure of wicksite. The Canadian Mineralogist, 35, 777-784.
  4. 2005(2005) Wicksite. Handbook of Mineralogy. Mineralogical Society of America
