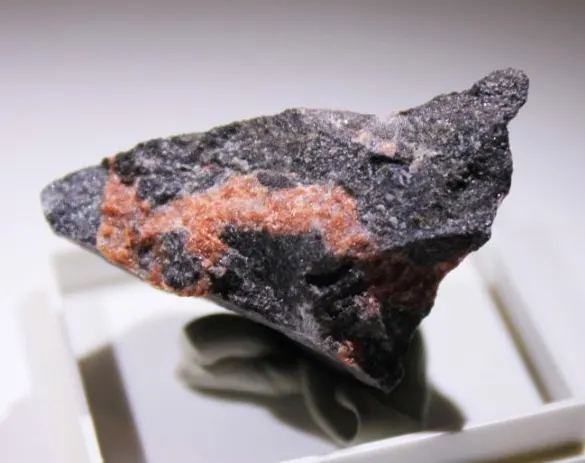

Arseniopleite

NaCaMnMn2(AsO4)3
IMA status
  • Approved
  • Grandfathered
IMA symbol
Apl
Discovered
1888
Also known as
  • Arseniopleiet
  • Arseniopleitt

Where it forms, where it's found

Geological setting

Banded metamorphosed manganese-bearing dolostone.

Type locality
Sjögruvan
  1. Grythyttan
  2. Hällefors
  3. Örebro County
  4. Sweden

59.6685°, 14.6079°

9recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent · Opaque
Colour
Brownish-red · also cherry red · gray · yellow · dark green · orange · pale apricot-orange or brownish orange in transmitted light.
Streak
Yellowish brown
Tenacity
brittle
Cleavage
Distinct/Good

On pseudo-(10*1).

Fracture
Irregular/Uneven · Sub-Conchoidal
Density
4.17 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.794 – 1.803
Surface relief
High
Principal indices
nα 1.794 · nβ 1.794 · nγ 1.803
Birefringence
0.009
Pleochroism
Non-pleochroic
Extinction
Pseudo-uniaxial.
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0090
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]90 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation90 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 6.8113(6) Å · b = 13.0358(11) Å · c = 11.3245(10) Å
Cell angles
β = 100.25(3) °
Ratio a:b:c
1 : 1.914 : 1.663
Z
4
Morphology

Commonly granular, massive. Well-formed crystals virtually unknown, elongated or lenticular crude crystals.

Type-locality form

Fracture fillings and thin veins.

Comment

Non-standard space group setting I2/a. Cell data of Tait et al. (2003); cell in standard C2/c setting: a = 12.132, b = 13.036, c = 6.811 Å, β = 113.29°. Type material cell: a = 6.86, b = 13.06, c = 11.31 Å, β = 99°. Pseudohexagonal.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
33AsArsenicArsenic374.922224.766
34.87%
8OOxygenOxygen1215.999191.988
29.78%
25MnManganeseManganese354.938164.814
25.57%
20CaCalciumCalcium140.07840.078
6.22%
11NaSodiumSodium122.99022.990
3.56%
Total644.636100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Arseniopleiet
  • Arseniopleitt

In other languages

German
Arseniopleit
Italian
arseniopleite

Classification

Strunz
10th ed.

8.AC.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.APhosphates, etc. without additional anions, without H2ODivision
  • 8.ACWith medium-sized and large cationsGroup
  • 8.AC.10ArseniopleiteSpecies
Dana
8th ed.

38.02.02.02

  • 38Anhydrous Normal Phosphates, Arsenates, and VanadatesClass
  • 38.02(AB)5(XO4)3Type
  • 38.02.02Alluaudite-Wyllieite Group (Alluaudite Subgroup)Group
  • 38.02.02.02ArseniopleiteSpecies

Group, growth & confusion

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1888Igelström, L.I. (1888) Bulletin de la Société française de Minéralogie: 11: 39.
  2. 1888Igelström, L.I. (1888) Arseniopleit, ein neues Mineral von der Hausmannit- und Braunitgrube Sjögruvan, Kirchspiel Grythyttan, Gouvernement Örebro, Schweden. Neues Jahrbuch für Mineralogie, Geologie und Paläontologie, II: 117-122.
  3. 1963Åke, Henriques (1963) Sjögruvite (= Arseniopleite). Arkiv för mineralogi och geologi, 3, 395.
  4. 1964Fleischer, Michael (1964) New Mineral Names. American Mineralogist, 49 (3-4) 439-448
  5. 1967IMA (1967) International Mineralogical Association: Commission on New Minerals and Mineral Names. Mineralogical Magazine and Journal of the Mineralogical Society, 36 (277) 131-136 doi:10.1180/minmag.1967.036.277.20 DOI: 10.1180/minmag.1967.036.277.20
