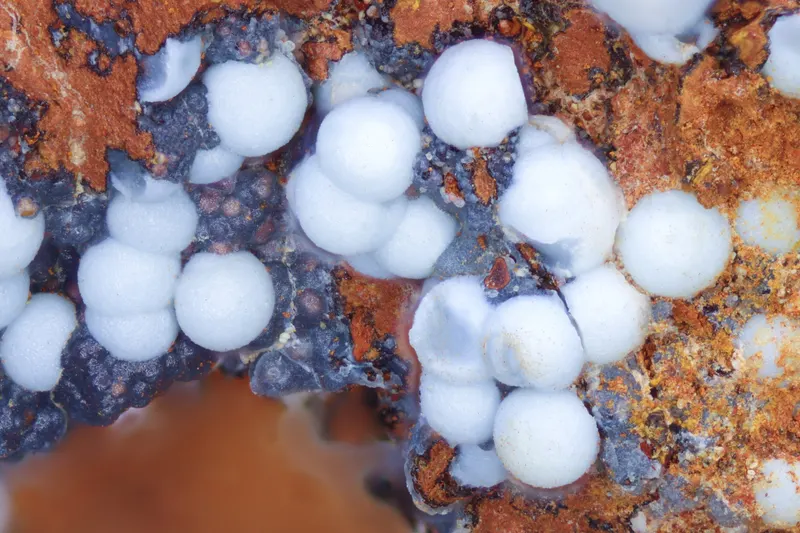

Arsenogoyazite

SrAl3(AsO4)(AsO3OH)(OH)6
IMA status
  • Approved
IMA symbol
Agoy
Discovered
1984
Also known as
  • Arsenogoyaziet
  • Arsenogoyazitt
  • IMA1983-043

Where it forms, where it's found

Geological setting

Oxidized veins of a hydrothermal polymetallic deposit.

Type locality
Clara Mine
  1. Oberwolfach
  2. Ortenaukreis
  3. Freiburg Region
  4. Baden-Württemberg
  5. Germany

48.3797°, 8.2289°

23recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
White to colorless · pale yellow · pale green · grayish-green
Streak
White
Tenacity
brittle
Cleavage
None Observed

Probably perfect (0001) as in other members of the group

Fracture
Conchoidal
Density
3.355 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.643 – 1.698
Surface relief
High
Principal indices
nα 1.643 · nβ 1.643 · nω 1.698 · nε 1.688
Birefringence
0.000
Pleochroism
Non-pleochroic
Extinction
Parallel. It is not certain that the higher refractive indices were measured on true arsenogoyazite.
UV response
Not fluorescent in UV
Michel-Lévy diagramhighlighted lineδ = 0.0000
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]0 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation0 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#99
Cell parameters
a = 7.10 Å · c = 17.16 Å
Z
3
Morphology

Rhombohedral to platy

Type-locality form

Aggregates and crusts of pale green to white minute rhombohedral crystals.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1415.999223.986
40.77%
33AsArsenicArsenic274.922149.844
27.27%
38SrStrontiumStrontium187.62087.620
15.95%
13AlAluminiumAluminium326.98280.946
14.73%
1HHydrogenHydrogen71.0087.056
1.28%
Total549.452100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Arsenogoyaziet
  • Arsenogoyazitt
  • IMA1983-043

In other languages

German
Arsenogoyazit · IMA 1983-043
Spanish
arsenogoyazita
Italian
Arsenogoyazite

Classification

Strunz
10th ed.

8.BL.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BLWith medium-sized and large cations, (OH, etc.):RO4 = 3:1Group
  • 8.BL.10ArsenogoyaziteSpecies
Dana
8th ed.

42.07.04.03

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.07(AB)2(XO4)Zq·xH2OType
  • 42.07.04Arsenocrandallite GroupGroup
  • 42.07.04.03ArsenogoyaziteSpecies
CIM

20.4.5

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.4Arsenates of Group III metals (Al, rare earths)Group
  • 20.4.5ArsenogoyaziteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1984Walenta, Kurt; Dunn, Pete J. D (1984) Arsenogoyazit, ein neues Mineral der Crandallitgruppe aus dem Schwarzwald [Arsenogoyazite, a new mineral of the crandallite group from the Black Forest]. Schweizerische mineralogische und petrographische Mitteilungen, 64 (1-2). 11-19
  2. 1986Hawthorne, F.C., Dunn, P.J., Grice, J.D., Puziewicz, J., Shigley, J.E. (1986) New mineral names. American Mineralogist: 71: 845-847.
  3. 1991Schwab, R.G., Götz, C., Herold, H., Pinto de Oliveira, N. (1991) Compounds of the crandallite type: Synthesis and properties of pure (Ca, Sr, Ba, Pb, La, Ce to Eu) - arsenocrandallites. Neues Jahrbuch für Mineralogie, Monatshefte: 1991: 97-112.
  4. 1999Jambor, John L. (1999) Nomenclature of the alunite supergroup. The Canadian Mineralogist, 37 (6). 1323-1341
  5. 2005(2005) Arsenogoyazite. Handbook of Mineralogy. Mineralogical Society of America
