Karlseifertite

Pb(Ga2Ge)(AsO4)2(OH)6
IMA status
  • Approved
IMA symbol
Karl
Also known as
  • Karlseifertiet

Where it forms, where it's found

Geological setting

secondary oxidation-zone mineral found on fracture surfaces in germanite–chalcocite ore.

Type locality
Tsumeb Mine (Ongopolo Mine)
  1. Tsumeb
  2. Oshikoto Region
  3. Namibia

-19.2270°, 17.7276°

1recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
yellow
Streak
pale yellow
Tenacity
brittle
Fracture
Irregular/Uneven
Density
4.993 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.89 – 1.894
Surface relief
Very high
Principal indices
nω 1.890 · nε 1.894
Pleochroism
Weak

Pleochroism is slight with O (light yellow) and E (pale yellow): O > E.

Notes

the calculated value of ε is 1.894.

Michel-Lévy diagramhighlighted lineδ = 0.0040
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]40 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation40 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
R-3m
Cell parameters
a = 7.2814(7) Å · c = 17.108(1) Å
Z
3
Type-locality form

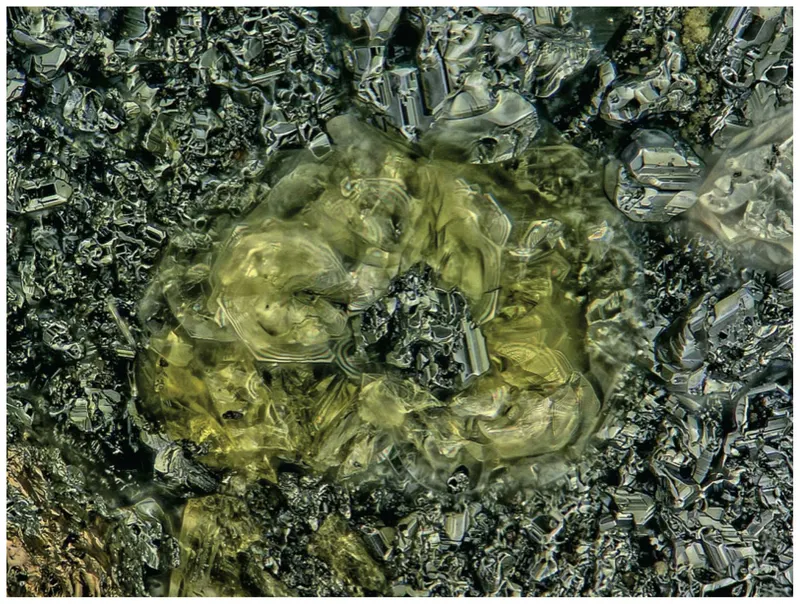

rosettes of thin hexagonal plates (bounded by the (001) and (100) forms) up to about 0.2 mm in diameter and usually less than 0.01 mm thick.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1415.999223.986
28.03%
82PbLeadLead1207.200207.200
25.93%
33AsArsenicArsenic274.922149.844
18.75%
31GaGalliumGallium269.723139.446
17.45%
32GeGermaniumGermanium172.63072.630
9.09%
1HHydrogenHydrogen61.0086.048
0.75%
Total799.154100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From Mindat formula

Synonyms

  • Karlseifertiet

In other languages

German
Karlseifertit

Classification

Strunz
10th ed.

7.BC.10

  • 7SulfatesClass
  • 7.BSulfates (selenates, etc.) with additional anions, without H2ODivision
  • 7.BCWith medium-sized and large cationsGroup
  • 7.BC.10KarlseifertiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. Kampf, A. R., Désor, J., and Ma, C. (2024): Karlseifertite, IMA 2024-007, in: CNMNC Newsletter 80, Eur. J. Mineral., 36, https://doi.org/10.5194/ejm-36-599-2024
  2. 2024Kampf, A. R., Désor, J., Ma, C. (2024) Karlseifertite, Pb(Ga₂Ge)(AsO₄)₂(OH)₆, a new dussertite-group mineral, from Tsumeb, Namibia. European Journal of Mineralogy, 36 (5). 873-878 doi:10.5194/ejm-36-873-2024DOI: 10.5194/ejm-36-873-2024
