Auriacusite

Fe3+Cu2+(AsO4)O
IMA status
  • Approved
IMA symbol
Aur
Discovered
1993
IMA approved
2009
Also known as
  • Auriacusiet
  • Auriacusitt
  • IMA2009-037

Where it forms, where it's found

Geological setting

Hydrothermal polymetallic deposit

Type locality
Black Pine Mine
  1. Philipsburg Mining District (Flint Creek Mining District)
  2. Granite County
  3. Montana
  4. USA

46.4478°, -113.3656°

11recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
ochreous yellow
Streak
brownish yellow
Tenacity
brittle
Fracture
Irregular/Uneven
Density
4.447 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 83° · 2V calc = 84.6°
Refractive index
1.83 – 1.91
Surface relief
Very high
Principal indices
nα 1.830 · nβ 1.865 · nγ 1.910
Pleochroism
Non-pleochroic
Michel-Lévy diagramhighlighted lineδ = 0.0800
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]800 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation800 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#73
Cell parameters
a = 8.6235(7) Å · b = 8.275(7) Å · c = 5.9501(5) Å
Ratio a:b:c
1 : 0.960 : 0.690
Unit cell volume
424.63 ų
Z
4
Type-locality form

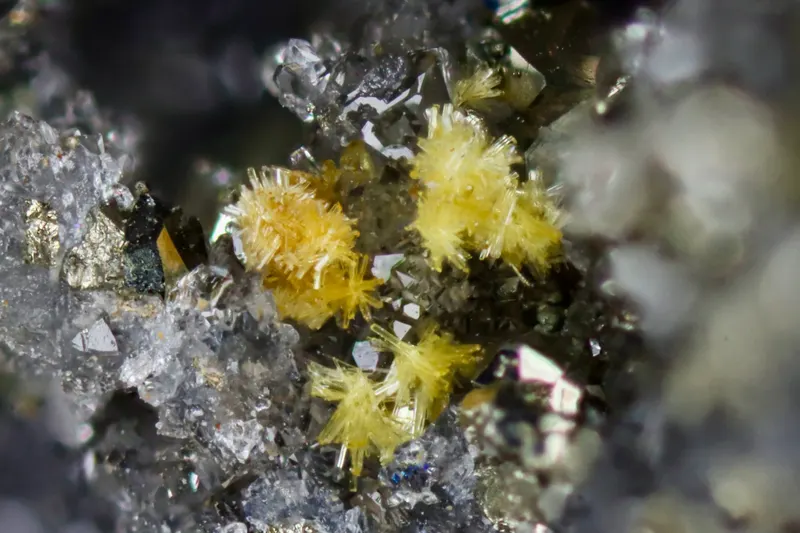

Brownish golden-yellow fibrous needles up to 5x100 µm, lining quartz vughs and coating quartz crystals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen515.99979.995
29.16%
33AsArsenicArsenic174.92274.922
27.31%
29CuCopperCopper163.54663.546
23.17%
26FeIronIron155.84555.845
20.36%
Total274.308100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Auriacusiet
  • Auriacusitt
  • IMA2009-037

In other languages

German
Auriacusit · IMA 2009-037
Italian
auriacusite

Classification

Strunz
10th ed.

8.BB.30

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BBWith only medium-sized cations, (OH, etc.):RO4 about 1:1Group
  • 8.BB.30AuriacusiteSpecies
Dana
8th ed.

41.06.05.07

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.06A2(XO4)ZqType
  • 41.06.05— unnamed intermediate level —Group
  • 41.06.05.07AuriacusiteSpecies

Group, growth & confusion

In the same group
6 members
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 2009Mills, S. J., Kampf, A. R., Raudsepp, M. & Poirier, G. (2009) New Fe-bearing members of the olivenite group from the Black Pine mine, Montana, Geological Society of America Abstracts with Programs, 41(7), 100.
  2. 2010Mills, Stuart J., Kampf, Anthony R., Poirier, Glenn, Raudsepp, Mati, Steele, Ian M. (2010) Auriacusite, Fe3+Cu2+AsO4O, the first M3+ member of the olivenite group, from the Black Pine mine, Montana, USA. Mineralogy and Petrology, 99 (1) 113-120 doi:10.1007/s00710-009-0089-7DOI: 10.1007/s00710-009-0089-7
  3. 2011(2011) Auriacusite. Handbook of Mineralogy. Mineralogical Society of America
